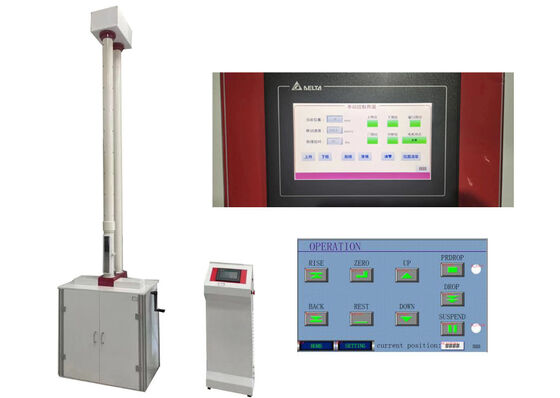

Drop Hammer Test Equipment Capable of Conducting Dynamic Impact Tests on Construction Materials and Industrial Components

Large Image : Drop Hammer Test Equipment Capable of Conducting Dynamic Impact Tests on Construction Materials and Industrial Components

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Capable Of Conducting Dynamic Impact Tests On Construction Materials And Industrial Components	Test Type:	Drop Hammer Test
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
Control Mode:	Automatic	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	Drop hammer test equipment for construction materials , Dynamic impact test equipment for industrial components , Drop hammer tester with warranty

Drop Hammer Test Equipment for Dynamic Impact Testing

Professional testing equipment designed to conduct dynamic impact tests on construction materials and industrial components, built in strict conformity with ISO 4422, ISO 3127 and ASTM D2444 regulatory standards.

Product Overview

The Falling Weight Deflectometer Impact Tester for Plastic Pipes is professionally engineered to evaluate the external impact bearing capacity of circular thermoplastic pipe products. This testing device supports statistical analysis on actual impact failure ratios for full production batches and continuous extrusion production lines.

Key Features

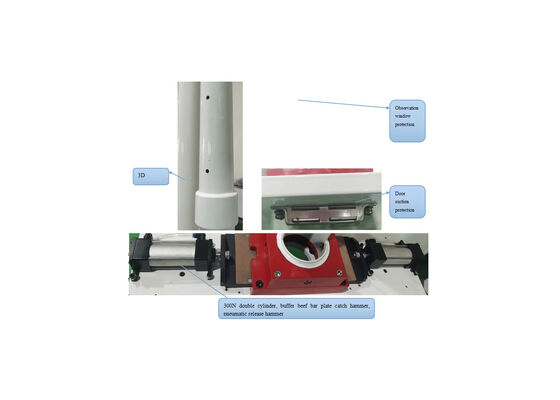

Anti-Rebound Capture Mechanism: Special anti-rebound assembly with 100% capture rate prevents extraneous secondary impacts
Flexible Impact Height Configuration: Manual custom configuration and automatic precise calibration modes available
Integrated Safety Protection System: Complete suite of automatic safety accessories including lockable sample access doors and anti-impact safety viewing windows
High-Precision Lifting Height Calibration: ±2 mm calibration accuracy stabilizes impact energy output
Modular Impact Hammer Assembly: Combined modular framework allows flexible adjustment of overall mass
Adjustable Pneumatic Anti-Secondary Impact Mechanism: Tunable pressure parameters improve capture stability
Dual-Screw Specimen Support Structure: Twin-screw supporting framework provides outstanding rigidity and structural stability

Technical Specifications

Parameter	Specification
Model	XJL-300D
Ambient Temperature	10℃-35℃
Drop Hammer Quality	0.5kg-16kg
Hammer Diameter	D25mm, D90mm, etc
Height of the Fall	10mm-2000mm, error≤±2mm
Diameter of the Sample	Φ16mm-Φ630mm
Deviation of Impact Center	≤2mm
V-type Supporting	120°
Power Source	220VAC±10%
Outline Dimension	715mm×700mm×3900mm
Net Weight	380kg

Compliance Standards

This impact testing apparatus complies with internationally recognized specifications including ISO3127, ISO4422, BS EN744, BS EN1411, ASTM D2444 and other relevant standard provisions.

Packing and Shipping

All Drop Hammer Test Equipment units are packed in export-standard reinforced wooden cases designed to effectively cushion shocks and resist vibration during transportation. Each package includes the main testing device, complete operating documentation, matching accessories and necessary spare parts. We provide full export documentation including commercial invoices, packing manifests, and conformity certification.

Frequently Asked Questions

Q1: Please introduce Drop Hammer Test Equipment and its manufacturer.

A1: Developed and produced by Beijing-based Chinese manufacturer JHH, the Drop Hammer Test Equipment is a professional instrument dedicated to impact performance testing for quantitative evaluation of dynamic impact resistance.

Q2: What industrial quality inspection value does Drop Hammer Test Equipment deliver?

A2: This testing instrument specializes in precise quantification of specimen impact resistance, helping manufacturing enterprises complete strict product performance inspection and quality screening to meet standardized industrial specifications.

Q3: What test specimens are applicable to Drop Hammer Test Equipment?

A3: This device supports impact resistance testing for multiple pipe products including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, core-layer foamed pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.

Q4: What overall precision standard does Drop Hammer Test Equipment achieve?

A4: The Drop Hammer Test Equipment achieves a top comprehensive parameter testing accuracy of 0.5% with highly stable and reproducible test data.

Q5: What is the maximum impact energy specification of Drop Hammer Test Equipment?

A5: The instrument is configured with a peak rated impact energy of 300J, which adapts to the impact testing demands of most mainstream industrial non-metallic pipes and plastic sheet materials.
