Drop Hammer Test Equipment Designed to Enhance Understanding of Material Failure Mechanisms Under Impact Loading Conditions

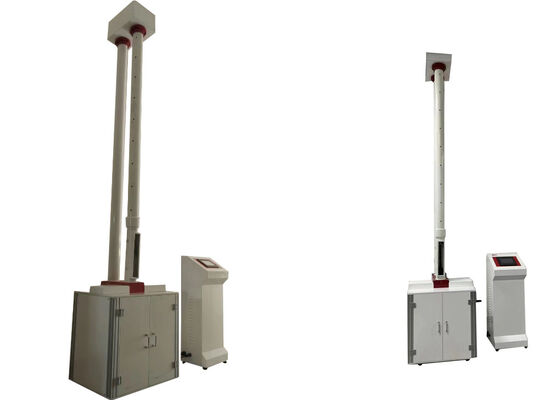

Large Image : Drop Hammer Test Equipment Designed to Enhance Understanding of Material Failure Mechanisms Under Impact Loading Conditions

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-630D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Designed To Enhance Understanding Of Material Failure Mechanisms Under Impact Loading Conditions	Hammer Diameter:	TUP A, TUP B, TUP C
Test Range:	0-400J	Drop Hammer Quality:	2.7kg, 5.4kg, 9.1kg, 13.6kg
Supporting:	120° V-type Or Iron Plate	Max. Height:	3000mm
Conform With Standards:	ASTM D2444, ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, Etc.	Power Supply:	AC220V/50Hz
Highlight:	Drop hammer test equipment for material failure , Impact loading drop hammer tester , Drop hammer test equipment with warranty

Drop Hammer Test Equipment

Designed to enhance understanding of material failure mechanisms under impact loading conditions, this equipment provides comprehensive impact assessment capabilities for various industrial applications.

Applications & Features

Complies with international testing standards including ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411 and other relevant norms
Integrated automatic safety assemblies with protective interlocks for operator safeguarding during test execution
Minimum drop height of 10 mm for accurate characterization of low impact resistance materials
Stable performance and long service life for diverse testing scenarios
Ideal for R&D projects, quality inspection, and material performance evaluation across aerospace, automotive, construction, and other industries

Technical Specifications - Model XJL-630

Ambient temperature	10℃-35℃
Hammer sets (12 sets total)	Hammerhead A: 2.75kg, 5.4kg, 9.1kg, 13.6kg Hammerhead B: 2.7kg, 5.4kg, 9.1kg, 13.6kg Hammerhead C: 2.7kg, 5.4kg, 9.1kg, 13.6kg
Height of the fall	0mm-3000mm, error ≤ ±2mm
Diameter of the sample	Φ630mm
Deviation of impact center from fixture center	≤2mm
V-type supporting	120°
Power source	220VAC ±10%
Outline dimension	720mm × 600mm × 4850mm
Net weight	600kg

Support and Services

We provide comprehensive technical assistance and after-sales services for Drop Hammer Test Equipment. Our team of professional engineers and technical specialists delivers expert support covering:

Equipment installation and setup
Routine maintenance and calibration
Fault diagnosis and troubleshooting
Customized testing solutions
24/7 customer support availability

Frequently Asked Questions

What is Drop Hammer Test Equipment?

Drop Hammer Test Equipment is impact testing apparatus produced by JHH based in Beijing, China, dedicated to evaluating the impact resistance properties of test samples.

What core function does Drop Hammer Test Equipment fulfill?

Drop Hammer Test Equipment quantifies the impact resistance of specimens, supporting manufacturers to implement effective product quality assurance.

What test samples are compatible with Drop Hammer Test Equipment?

It is applicable to various pipe products including PVC-U water supply pipes, sewer pipes, low-pressure water delivery pipes, low-pressure transmission pipes, core-layer foamed pipes, double-wall corrugated pipes and PE water supply pipes. Besides, it also supports performance testing of rigid plastic sheets.

How precise is Drop Hammer Test Equipment?

Drop Hammer Test Equipment achieves a testing accuracy of 0.5%.

What is the maximum testing capacity of Drop Hammer Test Equipment?

The Drop Hammer Test Equipment delivers a maximum testing energy of 300J.
