Drop Hammer Test Equipment Used to Simulate Real World Impact Conditions for Evaluating Material Performance and Safety

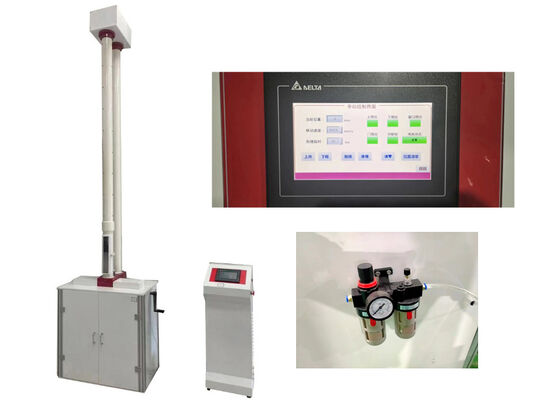

Large Image : Drop Hammer Test Equipment Used to Simulate Real World Impact Conditions for Evaluating Material Performance and Safety

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Used To Simulate Real World Impact Conditions For Evaluating Material Performance And Safety	Test Type:	Drop Hammer Test
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
Control Mode:	Automatic	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	Drop hammer test equipment for material performance , Drop hammer impact simulation equipment , Drop hammer test equipment with warranty

Drop Hammer Test Equipment for Material Impact Performance Evaluation

Professional testing equipment designed to simulate real-world impact conditions for evaluating material performance and safety compliance.

Product Overview

Developed in strict adherence to ISO 4422, ISO 3127 and ASTM D2444 international test specifications, the Falling Weight Deflectometer Impact Tester for Plastic Pipes is professionally engineered to evaluate the external impact resistance performance of circular thermoplastic pipe products.

Following standardized test procedures, the equipment utilizes a weighted striker with fixed mass and structural dimensions. By dropping the striker from calibrated heights onto specified pipe circumference positions, it completes standardized impact testing on pipe samples.

Beyond single-sample performance detection, this testing device supports statistical analysis of actual impact failure ratios for mass-produced pipe batches and continuous extrusion production outputs. It provides essential data support for plastic pipe manufacturers conducting batch quality evaluation, product acceptance inspection, and production process improvement.

Key Product Features

Anti-Rebound Capture Mechanism: Dedicated anti-rebound assembly with 100% capture efficiency prevents unwanted secondary impacts and ensures data authenticity
Flexible Impact Height Configuration: Dual operating modes for impact height setup - manual customization for special testing demands and automatic precision calibration for standard test methods
Integrated Safety Protection System: Comprehensive automatic safety accessories including lockable sample access doors, shock absorption buffers, and impact-proof safety viewing windows
High-Precision Height Calibration: Built-in automatic lifting height calibration with ±2 mm accuracy maintains stable impact energy output
Modular Impact Hammer Assembly: Flexible configuration allowing mass adjustment by attaching or detaching hammer weights to satisfy various impact energy requirements
Adjustable Pneumatic Anti-Secondary Impact: Tunable working air pressure strengthens capture stability and adapts to diverse test circumstances
Dual-Screw Specimen Support: Twin-screw supporting framework with excellent rigidity and structural stability keeps specimens firmly fixed during impact procedures

Compliance Standards

This testing equipment fully conforms to multiple international authoritative testing standards including ISO 3127, ISO 4422, BS EN 744, BS EN 1411 and ASTM D2444, covering mainstream normative specifications for plastic pipe impact testing worldwide.

Technical Specifications

Parameter	Specification
Model	XJL-300D
Ambient Temperature	10℃-35℃
Drop Hammer Quality	0.5kg-16kg
Hammer Diameter	D25mm, D90mm, etc
Height of the Fall	10mm-2000mm, error ≤ ±2mm
Diameter of the Sample	Φ16mm-Φ630mm
Deviation of Impact Center	≤2mm
V-type Supporting	120°
Power Source	220VAC±10%
Outline Dimension	715mm×700mm×3900mm
Net Weight	380kg

Support and Services

We offer full lifecycle technical guidance and comprehensive after-sales services for Drop Hammer Test Equipment, ensuring stable operating status and optimal testing performance during long-term operation.

Our professional engineering team provides one-stop services including on-site installation deployment, daily preventive maintenance, professional fault diagnosis, and equipment precision calibration. We also customize exclusive technical schemes to match unique testing environments, standard compliance demands, and personalized project requirements.

Our technical support team provides round-the-clock online services through multiple communication channels including exclusive service hotlines, email correspondence, and remote diagnosis systems. We rapidly respond to customer consultations, equipment faults, and service demands to minimize equipment standby time and improve overall utilization rates.

Frequently Asked Questions

What is Drop Hammer Test Equipment, and which manufacturer produces this device?

Developed and produced by JHH based in Beijing, China, the Drop Hammer Test Equipment is a professional impact testing device engineered to quantitatively evaluate the impact resistance properties of various materials and finished parts under standardized dynamic impact loading conditions.

What core industrial quality control functions does Drop Hammer Test Equipment undertake?

This testing device focuses on precise detection of specimen impact resistance performance, helping manufacturers implement strict product performance inspection and quality verification to ensure all finished products meet industrial quality specifications and practical safety application criteria.

What types of materials and finished products can be tested by Drop Hammer Test Equipment?

This device supports impact resistance testing for multiple pipe products including PVC-U water supply pipes, sewer pipes, low-pressure water delivery pipes, low-pressure transmission pipes, core-layer foamed pipes and double-wall corrugated pipes, as well as PE water supply pipes. It is also applicable for performance testing of rigid hard plastic sheets.

How accurate is the testing data generated by the Drop Hammer Test Equipment?

The Drop Hammer Test Equipment delivers an overall test parameter accuracy of 0.5%, guaranteeing excellent data stability and repeatability for product quality analysis and standard compliance evaluation.

What is the maximum impact energy the Drop Hammer Test Equipment can provide for testing?

The equipment is designed with a maximum impact energy rating of 300J, fully satisfying the impact testing demands of most mainstream industrial non-metallic pipes and plastic sheet materials.
