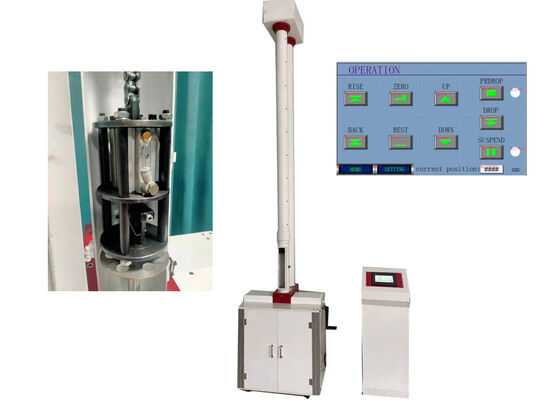

Drop Hammer Test Equipment Used to Evaluate Mechanical Strength and Impact Resistance of Various Construction Materials

Large Image : Drop Hammer Test Equipment Used to Evaluate Mechanical Strength and Impact Resistance of Various Construction Materials

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Used To Evaluate Mechanical Strength And Impact Resistance Of Various Construction Materials	Hammer Diameter:	D25mm,D90mm, Etc
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
V-type Supporting:	120°	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	Drop hammer test equipment for construction materials , Mechanical strength impact resistance tester , Drop hammer test equipment with warranty

Drop Hammer Test Equipment

Professional testing equipment used to evaluate mechanical strength and impact resistance of various construction materials, providing accurate assessment of material performance under impact conditions.

Applications

Ideal testing solution for building material manufacturers and scientific research institutions
Extensively used by plastic pipe R&D centers, quality inspection laboratories, and production enterprises
Evaluates impact toughness of pipe products in compliance with ISO3127 and equivalent international standards
Features user-friendly operation, high operational safety, and stable working performance
Equipped with anti-secondary impact structure and automatic calculation of impact height data
Supports passage method and gradient method testing approaches for flexible testing capabilities

Testing Principle

Specimens are impacted by standardized striker with fixed mass and geometric profile
Striker free falls from predefined height onto designated test areas
Test severity adjustable by modifying striker mass and vertical drop distance
Maximum permissible tolerance for TIR evaluation is 10%

Product Features

Featuring robust mechanical performance and premium build quality, this Drop Hammer Test Equipment operates on standard AC220V/50Hz power supply. Purpose-built for standardized drop hammer impact testing, it accurately assesses impact resistance properties of diverse material specimens with user-friendly operational design.

Compliance Standards

The device fully complies with comprehensive international and industrial testing standards including ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ASTM D2444, ASTM D3763, ASTM D7136, EN 744 and EN 1411, ensuring standardized and authoritative impact test results.

Technical Parameters

Parameter	Specification
Model	XJL-300D
Ambient Temperature	10℃-35℃
Drop Hammer Quality	0.5kg-16kg
Hammer Diameter	D25mm, D90mm, etc
Height of the Fall	10mm-2000mm, error≤±2mm
Diameter of the Sample	Φ16mm-Φ630mm
Deviation of Impact Center	≤2mm
V-type Supporting	120°
Power Source	220VAC±10%
Outline Dimension	715mm×700mm×3900mm
Net Weight	380kg

Support and Services

Full-lifecycle technical services including equipment installation, daily maintenance, fault diagnosis, and professional calibration
Personalized solution customization to match unique testing scenarios and technical requirements
24-hour technical support for client consultations and technical inquiries
Customer-oriented service principles with round-the-clock technical consultation

Packing and Shipping

Equipment secured in heavy-duty export wooden cases for long-distance transit protection

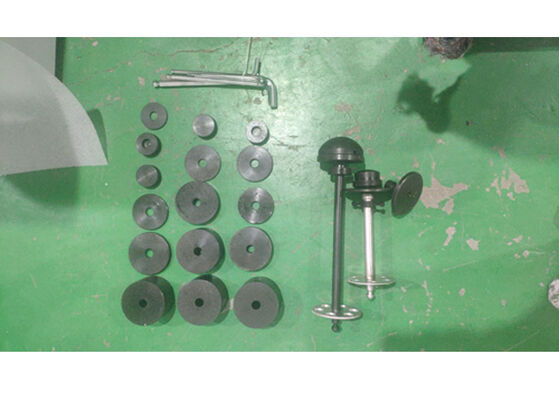

Package includes main test host, operation manuals, spare components, and matched auxiliary fittings
Complete international logistics documentation provided including commercial invoices and packing manifests
Freight expenses calculated based on destination and selected transportation mode

Frequently Asked Questions

How would you define Drop Hammer Test Equipment?

Drop Hammer Test Equipment is a performance testing instrument fabricated by JHH in Beijing, China, tasked with quantifying the impact resistance performance of various test samples.

What core application objective does Drop Hammer Test Equipment achieve?

This testing apparatus quantifies the anti-impact capacity of materials, serving as a crucial quality verification means to guarantee the compliance of finished products.

Which categories of products are compatible with this Drop Hammer Test Equipment for inspection?

It applies to a full array of tubular products including PVC-U potable water pipes, drainage pipelines, low-pressure water supply conduits, low-pressure delivery pipes, foamed core-layer pipes, double-wall corrugated pipes and PE water supply pipes. Also applicable to rigid plastic sheets for impact performance assessment.

What measurement precision can this Drop Hammer Test Equipment reach?

The measuring precision of the Drop Hammer Test Equipment can reach as high as 0.5%.

What is the maximum test load capacity of this device?

The rated maximum test energy output of the Drop Hammer Test Equipment stands at 300 Joules (300J).
