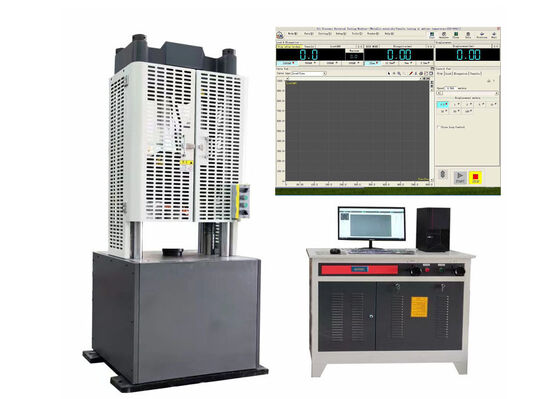

Servo Hydraulic Testing Machine Equipped with Special Jaw for Accurate Measurement of Steel Strand and Rebar Mechanical Properties

Large Image : Servo Hydraulic Testing Machine Equipped with Special Jaw for Accurate Measurement of Steel Strand and Rebar Mechanical Properties

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	WAW-600G

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Servo Hydraulic Testing Machine Equipped With Special Jaw For Accurate Measurement Of Steel Strand And Rebar Mechanical Properties	Model:	WAW-600G
Structure:	6 Columns	Control Way:	Manual & Automatic
Max.load:	600KN	Max. Tension Test Space:	700(can Customize)
Max.Compression Test Space:	600mm (can Customize)	Load Range:	±1%-100%FS
Electronic Extension Meter:	10/50	Round Specimen Range:	φ13~φ40mm
Flat Specimen Clamping Range:	0-30mm	Clamping Method:	Hydraulic Clamping
Highlight:	Servo Hydraulic Testing Machine with special jaw , Steel strand mechanical properties tester , Rebar mechanical properties testing machine

Servo Hydraulic Testing Machine with Special Jaw for Steel Strand and Rebar Testing

This servo hydraulic testing machine is specifically designed for accurate mechanical property measurement of prestressed steel strands and reinforcing steel bars. Equipped with dedicated clamps for steel strand specimens, it effectively constrains fracture areas and enables precise acquisition of mechanical indicators.

Product Features

Designed for mechanical performance characterization of prestressed steel strands and reinforcing steel bars
Equipped with dedicated clamps exclusively for steel strand specimens

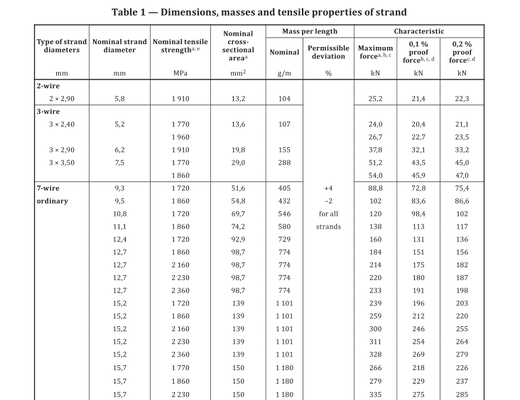

Complies with GB/T 5224-2014, ISO 6934-4, and other global standards including ASTM, DIN, JIS and BS
Effective constraint of fracture areas for accurate mechanical indicator acquisition

Cost Advantages

In-house R&D and machining center for autonomous fabrication of core components
Vertical production layout reduces intermediate overheads while maintaining quality
Premium equipment delivers greater long-term economic returns with lower malfunction frequency
Reduced maintenance expenditures and elevated operational throughput

Equipment Expansion Capabilities

Main testing host features reserved interfaces for extended installation of auxiliary fixtures
Bolt gripping attachment for tensile testing and load retention verification
Bending fixture for bend tests on round bars and flat plates
Shear fixture for measuring shear strength of cylindrical rods
Compression accessories for folding, shearing, splitting and elastic modulus measurement
Matching fixtures for steel balls, anchor chains and various fasteners

Software System

Windows-based test software with programmable functional modules
Multiple testing control modes: constant-rate test force control, constant-rate displacement control, test force retention and displacement holding
Comprehensive functions: real-time data presentation, curve plotting, data analysis, file storage and report printing
Precise speed-stable test force and displacement regulation via servo valve control
Hierarchical authority management for system parameter modification

Compliance Standards

ISO 6892, ISO 6934, BS4449, ASTM C39, ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, and relevant BSEN series specifications.

Technical Specifications

Parameter	Specification
Model	WAW-600G
Structure	4 columns and 2 screws
Control Method	Loading process manual control, computer automatic data dealing
Maximum Load	600kN
Load Accuracy	≤±0.5%
Load Range	2%-100%FS
Isokinetic Stress Control Range	2-60 (N/mm²•S⁻¹)
Stress Rate Error	≤±0.5%
Load Resolution	1/600000
Deformation Measurement Range	2%～100%FS
Deformation Accuracy	≤±0.5%
Displacement Resolution	0.01 mm
Displacement Error	≤±0.5%
Maximum Piston Stroke	250 mm
Maximum Piston Moving Speed	0.5-100 mm/min Manual adjustment
Crosshead Lifting Speed	300 mm/min
Maximum Tension Test Space	700 mm (customizable)
Maximum Compression Test Space	600 mm (customizable)
Clamping Method	Hydraulic clamp
Round Specimen Clamping Range	φ13-φ40 mm (13-26, 26-40)
Flat Specimen Clamping Range	0-15, 15-30 mm
Flat Specimen Clamping Width	80 mm
Compression Plate Size	200×200 mm
Bending Roller Distance	450 mm
Width of Bending Rollers	120 mm
Power Supply	3-phase, AC380V, 50Hz (customizable)
Weight and Dimensions	2100 KG, 960×750×2270 mm

Packaging and Shipping

Frequently Asked Questions

Q1: Is your company a manufacturer or a trading enterprise?

A: We are an integrated manufacturing and exporting enterprise with 18 years of specialized experience in testing instrument R&D and production, plus 14 years of international export experience.

Q2: How can I select the optimal testing equipment for my demands?

A: Our professional technical team provides one-on-one matching recommendations based on your specific test types and technical parameter requirements.

Q3: What are your standard delivery provisions?

A: Most standard equipment is available for immediate delivery from inventory. Out-of-stock items typically require 15-20 working days production time, with priority scheduling available for urgent demands.

Q4: Do you provide equipment customization services?

A: Yes, we fully support customization services for non-standard machines tailored to your specific application requirements and testing scenarios.

Q5: Is factory inspection available prior to order placement?

A: We cordially invite you for on-site factory visits and provide comprehensive support services including hotel reservations and airport pickup arrangements.

Q6: What after-sales warranty services do you provide?

A: We offer a one-year warranty with professional online technical guidance, free replacement of defective parts, and on-site service by professional engineers when necessary.

Q7: What packaging solution is adopted for equipment to ensure transportation safety?

A: All testing devices are packaged in qualified standard export wooden cases with anti-collision and shockproof protection, ensuring zero equipment damage during global transportation.
