HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement of Plastics Rubber and Nylon Materials

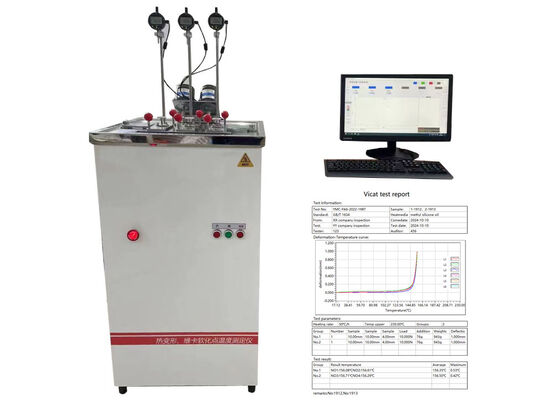

Large Image : HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement of Plastics Rubber and Nylon Materials

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	XRW-300F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Product Name:	HDT VICAT Testing Machine For Thermal Deformation And Softening Point Measurement Of Plastics Rubber And Nylon Materials	Controll:	Computer Control
Test Station Moving Method:	Auto	Mainframe Type:	Vertical Type
Vicat Load:	10N ± 0.2 N , 50N ± 1N	Max. Deformation Deviation:	0.001mm
Deformation Measuring Rage:	0 ~ 2.0mm	Sample Frame Number:	3 Stations Or 6 Stations(can Be Selected)
Highlight:	HDT VICAT Testing Machine for plastics , Thermal deformation testing machine , Softening point measurement for rubber

HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement

The HDT & Vicat softening point tester is designed for measuring heat deflection temperature (HDT) and Vicat softening temperature of plastics, rubber, and nylon materials. This advanced testing equipment complies with ISO 75 and ASTM D648 standards and features automated operation with precise temperature control.

Product Overview

This testing machine is primarily used for non-metallic raw materials including plastics, rubber, and nylon compounds. It features an upward and downward lifting mechanism for the test carriage that activates at the beginning and end of testing procedures. The equipment is specifically designed for measuring thermal deformation and softening point temperatures of electrical insulation materials.

Product Features

Developed to meet evolving technological demands in plastic manufacturing
Enhances material research and performance testing standards
Complies with latest domestic and international industrial standards
Full computerized intelligent control system
Stable operational performance with simplified procedures
High level of automated operation

Testing Standards

This instrument conforms to comprehensive domestic and international testing standards including GB/T1633, GB/T1634, ISO75, ISO306, ASTM D648, ASTM D1525, and ISO 2507 specifications for material thermal performance testing.

Technical Specifications

Model	XRW-300F
Technical Data	6 testing stations (simultaneous testing of 6 samples) Automatic sample movement capability Air cooling above 150°C, water or natural cooling below 150°C High precision digital display dial gauge for deformation measurement Heating Rate: 50°C/h, 120°C/h Maximum Temperature Deviation: ±0.5°C Deformation deviation: 0.001mm Vicat load: 10N ± 0.2N, 50N ± 1N Fiber stress: 0.455 MPa and 1.82 MPa Temperature control range: Room temperature ~ 300°C Deformation measuring range: 0 ~ 2mm Sample frame number: 3~6 Test span: 60~120mm Heating power: 6KW Power supply: 220V 50Hz Display: Color touch screen
Type and Display	Vertical type using PC control system
Usage	Used to measure heat deformation and Vicat softening temperature of thermoplastic materials in manufacturing, scientific research, and educational institutions

Standard Configuration

Main frame: 1 set
Electric cabinet: 1 set
Specimen holder: 3 sets (or 6 sets)
Vicat indenter: 3 sets (or 6 sets)
Heat deflection indenter: 3 sets (or 6 sets)
Displacement sensor: 3 sets (or 6 sets)
Power line: 2 sets
Connecting line: 2 sets
Operation manual: 1 set
Certificate: 1 set
Packing list: 1 set

Product Images
