Drop Hammer Test Equipment Designed to Deliver Accurate Impact Test Results Supporting Material Selection and Assurance

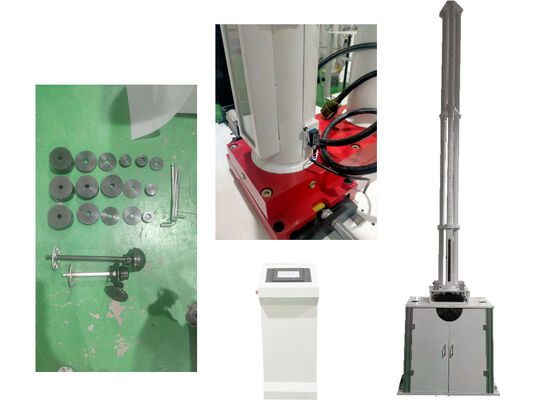

Large Image : Drop Hammer Test Equipment Designed to Deliver Accurate Impact Test Results Supporting Material Selection and Assurance

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-630M

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Designed To Deliver Accurate Impact Test Results Supporting Material Selection And Assurance	Hammer Diameter:	TUP Nose A, B, C
Test Range:	0-400J	Drop Hammer Quality:	Each Tup With 2.7kg, 5.4kg, 9.1kg, 13.6kg
V-type Supporting:	120°	Max. Drop Height:	3000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	Drop Hammer Test Equipment for material selection , Accurate impact test equipment , Drop hammer test equipment with warranty

Drop Hammer Test Equipment

Designed to deliver accurate impact test results supporting material selection and quality assurance for thermoplastic pipes and fittings.

Applications

The ASTM D2444 drop weight impact testing instrument equipped with Tup Nose A, B, and C is engineered to evaluate impact resistance performance of thermoplastic pipes and fittings under standardized falling weight impact conditions. The device features three interchangeable striker noses with distinct geometric shapes to meet diversified test requirements.

Product Features

Automated control logic with simplified operation and precise procedural control
Maximum drop height of 3000 mm, fully satisfying ASTM D2444 specifications
Anti-secondary impact mechanism for safety and accuracy
Automatic calculation and real-time display of impact height values
Compatible with pass-fail method and staircase testing method
Practical testing solution for building material manufacturers and research institutions

Compliance Standards

Fully compliant with internationally recognized testing specifications including ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744 and EN 1411.

Technical Parameters - Model XJL-630M

Parameter	Specification
Ambient temperature	10℃-35℃
Hammer sets (12 total)	Hammerhead A: 2.75kg, 5.4kg, 9.1kg, 13.6kg Hammerhead B: 2.7kg, 5.4kg, 9.1kg, 13.6kg Hammerhead C: 2.7kg, 5.4kg, 9.1kg, 13.6kg
Height of fall	0mm-3000mm, error ≤ ±2mm
Sample diameter	630×630mm
Impact center deviation	≤2mm from fixture center
Supporting fixtures	V-block and flat-plate
Power source	220VAC ±10%
Outline dimensions	800mm × 600mm × 5150mm
Net weight	500kg

Support and Services

Full-spectrum technical support and after-sales service system
Professional engineering team providing expert guidance for installation, maintenance, and calibration
Customized solutions for personalized testing requirements
Round-the-clock support availability for all user inquiries and technical issues

Packing and Shipping

Export-grade wooden case packaging for international transit protection
Includes main machine body, operation manuals, spare components, and auxiliary fittings
Clear outer labeling with equipment denomination, model specification, and serial number
Complete shipping documentation including commercial invoice and packing list
Flexible freight charges based on destination and transportation mode

Frequently Asked Questions

What is the Drop Hammer Test Equipment?

This drop hammer impact tester is independently developed and produced by JHH based in Beijing, China, designed to quantify the impact resistance performance of test specimens.

What is the core application objective?

It conducts quantitative detection on anti-impact capacity of finished products to perform effective quality verification and quality control for industrial products.

Which test samples are compatible?

Applicable to multiple pipeline types including PVC-U water supply pipes, drainage pipes, low-pressure water delivery pipes, low-pressure conveying pipes, foamed core-layer pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.

What is the measurement precision?

The overall testing precision reaches 0.5% for accurate impact resistance evaluation.

What is the maximum testing capacity?

The maximum impact testing energy supported is 300 Joules (300J).
