Electronic Universal Testing Machine
Ideal for quality control and production applications with precise testing capabilities for both metal and non-metal materials.
Product Overview
This electro-mechanical universal testing machine serves as an ideal testing facility for material performance verification, product research & development, incoming quality supervision, and batch production inspection across various industrial sectors.
Characterized by superior automatic control performance and user-friendly operating workflow, this equipment is widely recognized by both small workshops and large-scale manufacturing enterprises. Developed with comprehensive safety protection as a core design principle, the control software includes multiple safety interlock mechanisms to effectively prevent potential operational hazards.
Key Features
- Load measurement span covers 0.4% to 100% of full scale (FS)
- High-precision acquisition of micro load values during testing
- Capable of conducting tensile, compression, and flexural strength tests
- Comprehensive mechanical property detection and data analysis
- Applicable to various packaging containers and materials
Technical Specifications
| Model |
XWW-20KN |
| Type |
Double screw |
| Max. Load |
20KN |
| Resolution of Load |
1/300000 |
| Accuracy Grade |
0.5 grade |
| Force-measuring Range |
0.5%~100%FS |
| Force-measuring Accuracy |
≤±0.5% |
| Range of force control rate |
0.005--5%FS/S |
| Relative error of force control rate |
Within±1% of set value |
| Crossbeam Displacement Resolution |
0.001mm |
| Crossbeam Speed Range |
0.001-500mm/min |
| Test width |
400mm (or according to needs) |
| Total Crossbeam Valid Travel |
800mm |
| Power Supply |
AC220V; 400w |
| Weight |
290Kg |
| Packing size |
700mm*420mm*2000mm |
Metal Extensometer Specifications
| Measurement range |
0.2-100%FS |
| Range of deformation rate |
0.02~5%FS/S |
| Error of indication |
Within±0.5% |
| Resolution |
1/300000 |
Large Deformation Specifications
| Measurement range |
5mm-1000mm |
| Error of indication |
Within±0.5% |
| Resolution |
0.001mm |
Compliance Standards
GB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893, ASTMD638695790
Support and Services
- Professional on-site installation and commissioning guidance
- Systematic operational training for equipment operators
- Real-time technical problem diagnosis and fault elimination
- Regular equipment calibration and daily maintenance services
- Spare parts replacement and equipment overhaul support
- Continuous software iteration and functional upgrade services
Frequently Asked Questions
What are the core application scenarios of the JINHAIHU XWW Electronic Universal Testing Machine?
The JINHAIHU XWW Electronic Universal Testing Machine is dedicated to evaluating key mechanical characteristics of diverse materials, including tensile strength, compression strength, bending strength, shearing strength and tearing strength.
Does the JINHAIHU XWW Electronic Universal Testing Machine possess formal quality qualification certificates?
Absolutely. This testing machine has obtained ISO9001 quality system certification, which verifies its compliance with standardized international quality management specifications.
What is the production origin of the JINHAIHU XWW Electronic Universal Testing Machine?
The JINHAIHU XWW Electronic Universal Testing Machine is professionally produced and assembled in Beijing, China.
What is the MOQ (Minimum Order Quantity) for this model of testing equipment?
The product supports bulk procurement starting from a single unit, with a minimum order quantity of 1 set.
What settlement methods are acceptable for equipment transactions?
We support flexible and diversified payment options including T/T, L/C, D/A, D/P, Western Union and MoneyGram.
What is the monthly production supply capacity of the JINHAIHU XWW Electronic Universal Testing Machine?
Our stable monthly supply capacity can reach up to 20 sets of the JINHAIHU XWW Electronic Universal Testing Machine.
How long is the standard production and delivery cycle of the equipment?
The standard lead time for shipment of the JINHAIHU XWW Electronic Universal Testing Machine is 10 to 20 working days.
What packaging solution is adopted for equipment export and transportation?
The JINHAIHU XWW Electronic Universal Testing Machine adopts standard export wooden case packaging to ensure intact and safe long-distance transportation.

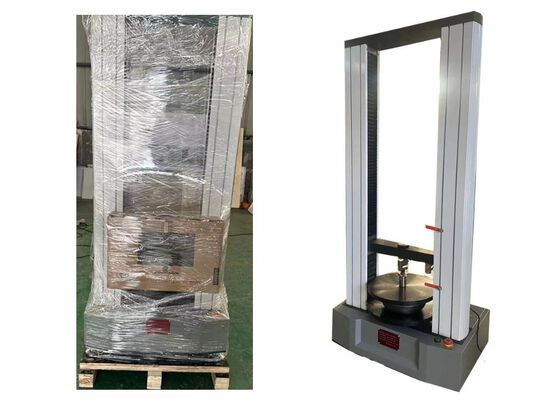

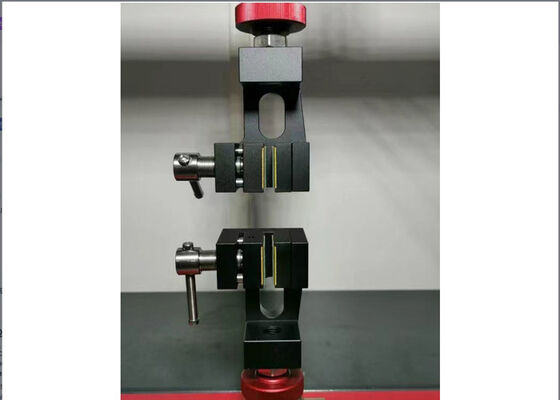

Product Images
