Electronic Universal Testing Machine ideal for testing plastic rubber textile metal wire nylon wire belts and packaging materials

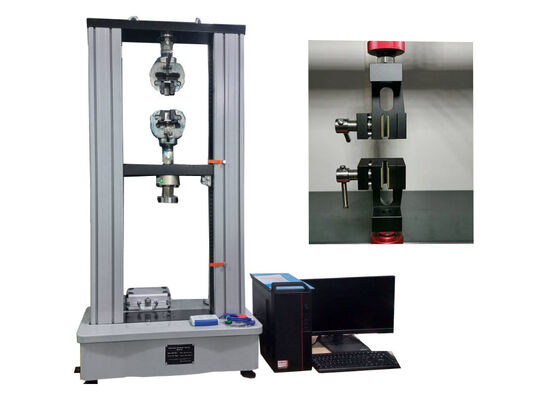

Large Image : Electronic Universal Testing Machine ideal for testing plastic rubber textile metal wire nylon wire belts and packaging materials

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	XWW-100KN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10-15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Product Name:	Electronic Universal Testing Machine Ideal For Testing Plastic Rubber Textile Metal Wire Nylon Wire Belts And Packaging Materials	Control Mode:	Cumputer
Max. Force:	100KN	Standard:	ISO7500-1, ISO5893,ISO9969, ASTMD638\695\790
Accuracy Grade:	0.5%	Force-measuring Range:	0.4%~100%FS
Crossbeam Displacement Resolution:	0.001mm	Crossbeam Speed Range:	0.05-350mm/min
Type:	Floor Model With Double Test Space
Highlight:	Electronic Universal Testing Machine for plastic rubber , Electronic Universal Testing Machine for metal wire , Electronic Universal Testing Machine for packaging materials

Electronic Universal Testing Machine

Ideal for testing plastic, rubber, textile, metal wire, nylon wire, belts, and packaging materials with precision and reliability.

Range of Application

Universal tensile testing systems serve as ideal inspection equipment for quality control workflows across various industrial sectors. Applicable test specimens include metal wires, nylon filaments, conveyor belts, plastic blanks, rubber materials, textile fabrics, garment products, and packaging materials. This equipment is purpose-built to execute mechanical performance assessments including tension, compression, flexure, shear, and tearing tests.

Product Features

Dual lead screw structural design with optimized technologies for mechanical frame structure, intelligent control, precision measurement, and human-machine operation
High testing accuracy, extensive adjustable speed range, compact layout, simple operation, and excellent long-term stability
Fully conforms to universal industry standards for various plastic pipe materials
Applicable to tensile, compression, bending, and creep performance tests for plastics, waterproof materials, textiles, paper products, and rubber materials
Fitted with large-sized pressure plate accessory for specialized testing including direct flat compression test and compression resilience test
Capable of external load resistance ring stiffness test, creep performance test, and ring tensile strength test

Technical Specifications

Model	XWW-100KN
Type	Floor model with double test space
Max. Load	100KN
Accuracy Grade	0.5%
Force-measuring Range	0.4%~100%FS
Force-measuring Accuracy	≤0.5%
Deformation-measuring Range	2%~100%FS
Deformation-measuring Accuracy	0.5%
Crossbeam Displacement Resolution	0.001mm
Crossbeam Speed Range	0.05-350mm/min
Displacement Speed Accuracy	≤ 0.5%
Test Width	520
Total Crossbeam Travel	700mm
Sample Size	Max.2521mm(widethick) - Customizable
Clamps	Tensile jig, Compression jig, Bending jig, etc
PC System	Equipped with brand computer and color inkjet printer
Power Supply	AC220V; 3.0kw
Standards	ISO7500-1, ISO5893, ISO9969, ASTMD638/695/790

UTM Software Features

Comprehensive and expandable functional capabilities with professional preset test routines
Supports tensile, compression, bending, shear, and peeling tests for metallic and non-metallic materials
Intuitive Windows-based operation suitable for operators of all proficiency levels
Multi-language support (Simplified Chinese, Traditional Chinese, English) for global users
Password-protected user accounts with graded permission management and operational traceability
Built-in overload protection with customizable thresholds for equipment safety
Flexible switching between force and displacement measurement units
Multiple test curve types including load-displacement, load-time, displacement-time, stress-strain, and load-tensile length
Dual calibration mechanism for force values with automatic parameter configuration and zero calibration
Compatible with ISO, JIS, ASTM, DIN, and GB testing standards
Superposition comparison of multiple test curves for data analysis
Automatic calculation of mechanical indicators including maximum force, yield strength, tensile strength, elastic modulus, and elongation at break

System Configuration

AC servo motor with dedicated drive module
Full speed reduction transmission assembly
100KN force sensing load transducer
Two high-precision ball screw assemblies
Main circuit control board
Full servo motion control system
Transmission gear assembly
Industrial control computer
Color inkjet printing device
Tensile testing fixture set, compression fixture set, bend fixture set (customizable)
Extensometer deformation measuring assembly
Software installation optical disc
Complete technical documentation pack (operation handbook, software operation guide, factory calibration certificate)
General maintenance tool kit

Frequently Asked Questions

What is an Electronic Universal Testing Machine?

An Electronic Universal Testing Machine is a precision testing instrument designed to evaluate the mechanical properties of materials, including tensile strength, compression strength, modulus of elasticity, and elongation.

What materials can be tested with an Electronic Universal Testing Machine?

An Electronic Universal Testing Machine supports testing for a diverse range of materials, encompassing metals, plastics, elastomers, and composites.

How accurate are Electronic Universal Testing Machines?

Electronic Universal Testing Machines exhibit high measurement accuracy, with a deviation of within ±0.5% relative to the actual value.

What types of tests can be performed with an Electronic Universal Testing Machine?

An Electronic Universal Testing Machine is capable of performing a range of test types, including tensile testing, compression testing, flexure testing, shear testing, and tear testing.

What are the benefits of using an Electronic Universal Testing Machine?

The Electronic Universal Testing Machine offers cost-effectiveness and high accuracy in evaluating mechanical properties. It features user-friendly operation and delivers rapid test results, enhancing efficiency in material testing workflows.
