HDT VICAT Testing Machine Designed to Determine Heat Deflection Temperature and Vicat Softening Point for Plastic Control

HDT VICAT Testing Machine Designed to Determine Heat Deflection Temperature and Vicat Softening Point for Plastic Control
HDT VICAT Testing Machine Designed to Determine Heat Deflection Temperature and Vicat Softening Point for Plastic Control
video play

Large Image :  HDT VICAT Testing Machine Designed to Determine Heat Deflection Temperature and Vicat Softening Point for Plastic Control

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001, CE
Model Number: XRW-300F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Product Name: HDT VICAT Testing Machine Designed To Determine Heat Deflection Temperature And Vicat Softening Point For Plastic Control Controll: By Computer
Test Station Moving Method: Automatic Mainframe Type: Floor Type
Vicat Load: 10N ± 0.2 N , 50N ± 1N Max. Deformation Deviation: 0.001mm
Deformation Measuring Rage: 0 ~ 2.5mm Sample Frame Number: 3-6 Stations Can Be Selected
Highlight:

HDT VICAT testing machine for plastic control

,

Heat deflection temperature testing equipment

,

Vicat softening point measurement device

HDT VICAT Testing Machine for Plastic Thermal Performance Analysis
The HDT VICAT Testing Machine is engineered to precisely determine heat deflection temperature and Vicat softening point for comprehensive plastic quality control and material characterization.
Product Overview
This specialized testing apparatus measures heat deflection temperature and Vicat softening point of plastic materials. During testing, specimens are subjected to constant loads while fully immersed in a temperature-controlled liquid bath that heats at standardized rates. The resulting thermal resistance data provides essential technical indicators for plastic material characterization, routine quality inspection, and compliance verification.
Key Features
  • Developed to support the growing plastic manufacturing industry and enhance material research capabilities
  • Complies with international standards including ISO 75-1-1993, ISO 306:1994, GB/T1633-2000, and GB/T1634-2001
  • Computerized intelligent control system ensures stable performance and simplified operation
  • High-end professional testing device for various non-metallic materials
Compliance Standards
Fully compliant with global testing standards: ISO 2507, ISO 75, ISO 306, ASTM D 1525, and ASTM D 648 for comprehensive plastic thermal performance detection.
Technical Specifications
Model XRW-300F
Testing Stations 6 stations (simultaneous testing of 6 samples)
Cooling System Air cooling above 150°C, water or natural cooling below 150°C
Deformation Measurement High precision digital display dial gauge
Heating Rate 50°C/h, 120°C/h
Max Temperature Deviation ±0.5°C
Deformation Deviation 0.01mm
Vicat Load 10N ± 0.2N, 50N ± 1N
Fiber Stress 0.455 MPa and 1.82 MPa
Temperature Control Range Room temperature ~ 300°C
Deformation Measuring Range 0 ~ 10mm
Sample Frame Number 3
Test Span 60~120mm
Heating Power 6KW
Power Supply 220V 50Hz
Display Color touch screen
Type and Control Desk type using PLC control system
Application
Used to measure heat deformation and Vicat softening temperature of thermoplastic materials, plastic, and rubber in manufacturing, scientific research, and educational institutions.
Standard Configuration
  • Main frame: 1 set
  • Electric cabinet: 1 set
  • Specimen holder: 3 sets
  • Vicat indenter: 3 sets
  • Heat deflection indenter: 3 sets
  • Displacement sensor: 3 sets
  • Power line: 2 sets
  • Connecting line: 2 sets
  • Operation manual: 1 set
  • Certificate: 1 set
  • Packing list: 1 set
Frequently Asked Questions
Which brand produces your Plastic Pipe Hydrostatic Pressure Testing Machine?
JHH is the exclusive brand of our Hydrostatic Pressure Testing Machine, with all production procedures completed at our manufacturing base located in Beijing, China.
What core testing functions can this Hydrostatic Pressure Testing Machine fulfill?
This testing apparatus is engineered to conduct inspection on plastic pipelines' long-term hydrostatic bearing capacity and instantaneous burst mechanical performance.
What pipeline varieties and raw material categories can this Hydrostatic Pressure Testing Machine accommodate for inspection?
The device supports performance detection for plastic tubing and composite pipeline products, covering mainstream material grades such as PP-R, PP-B, PP-A, PVC, PE and PE-X alongside other comparable piping materials.
How precise is the measuring system integrated into this Hydrostatic Pressure Testing Machine?
The measuring deviation of this Hydrostatic Pressure Testing Machine is controlled under 0.1% relative to the full scale range.
What peak pressure value can this Hydrostatic Pressure Testing Machine sustain during testing operations?
The upper limit of test pressure supported by the equipment stands at 10MPa, equivalent to 100 bar or 1450 psi.
Product Images

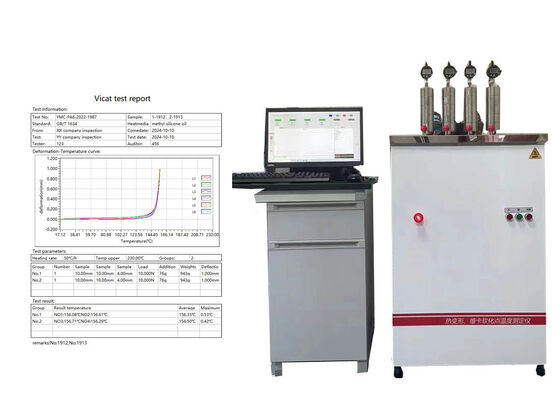

HDT VICAT Testing Machine front view and control panel Close-up of testing station and specimen holders HDT VICAT Testing Machine operational display and interface Testing apparatus with measurement instruments and accessories
