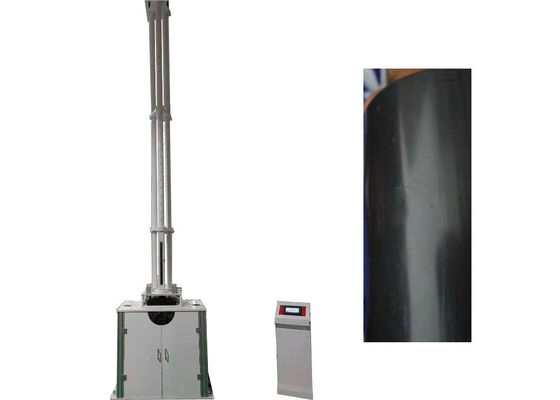

Drop Hammer Test Equipment Incorporating Advanced Sensors and Data Acquisition Systems for Enhanced Test Result Accuracy

Large Image : Drop Hammer Test Equipment Incorporating Advanced Sensors and Data Acquisition Systems for Enhanced Test Result Accuracy

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	XJL-630M

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Incorporating Advanced Sensors And Data Acquisition Systems For Enhanced Test Result Accuracy	Hammer Diameter:	TUP A, TUP B, TUP C
Test Range:	0-400J	Drop Hammer Quality:	2.7kg, 5.4kg, 9.1kg, 13.6kg
Supporting:	120° V-type Or Iron Plate	Max. Height:	3000mm
Conform With Standards:	ASTM D2444, ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, Etc.	Power Supply:	AC220V/50Hz
Highlight:	Drop hammer test equipment with data acquisition , Drop hammer test equipment with advanced sensors , Drop hammer test equipment for accuracy

Drop Hammer Test Equipment with Advanced Sensors and Data Acquisition Systems

This advanced drop hammer test equipment incorporates sophisticated sensors and data acquisition systems to deliver enhanced accuracy in test results. Designed for comprehensive impact resistance evaluation, it provides reliable performance for quality verification across multiple industries.

Applications and Features

Complies with ASTM D2444 standard for evaluating falling weight impact resistance of thermoplastic pipes and fittings
Features 120° V-shaped support or iron plate support structure for stable and precise test environments
Operates on AC220V/50Hz power supply for secure and efficient performance
Configured with three standard impact hammer specifications (TUP A, TUP B, TUP C) for diversified impact energy levels
PLC-based control system with touchscreen human-machine interface for superior automatic operation
Digital presetting and real-time visualization of impact height, hammer lifting and dropping procedures
Ideal for quality verification of impact-resistant materials, structural components and finished products in automotive, electronics, and aerospace industries

Conforming Standards

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and more.

Technical Parameters - XJL-630M

Parameter	Specification
Ambient temperature	10℃-35℃
Hammer (12 sets total)	Hammerhead A: 2.75kg, 5.4kg, 9.1kg, 13.6kg Hammerhead B: 2.7kg, 5.4kg, 9.1kg, 13.6kg Hammerhead C: 2.7kg, 5.4kg, 9.1kg, 13.6kg
Height of the fall	0mm-3000mm, error≤±2mm
Diameter of the sample	Φ630mm
Deviation of impact center from fixture center	≤2mm
Supporting	120° V-type or Iron plate
Power source	220VAC±10%
Outline dimension	720㎜×600㎜×4750㎜
Net weight	550kg

Support and Services

Full lifecycle technical guidance and after-sales services
Professional engineering team providing specialized guidance for installation, maintenance, fault diagnosis and equipment calibration
Customized technical solutions tailored to unique testing requirements
Round-the-clock professional support team for technical inquiries
High-standard customer service principles ensuring stable equipment operation

Packing and Shipping

Export-grade wooden crates for transportation safety
Complete package includes main testing device, operation manuals, spare parts and accessories
Clear identification marks on outer packaging for traceability
Complete documentary support including commercial invoices and packing lists
Shipping costs calculated based on destination port and selected shipping mode

Frequently Asked Questions

What does Drop Hammer Test Equipment refer to?

Produced by JHH based in Beijing, China, Drop Hammer Test Equipment is a professional testing apparatus dedicated for evaluating the impact resistance performance of various test specimens.

What are the core functions of Drop Hammer Test Equipment?

This set of Drop Hammer Test Equipment is designed to quantify the impact resistance performance of finished products and materials, serving as a key testing procedure to verify and stabilize overall product quality standards.

What test objects are applicable to Drop Hammer Test Equipment?

The equipment is applicable to a wide range of pipe products, including PVC-U water supply pipes, sewage pipes, low-pressure water delivery pipes, low-pressure transmission pipes, core-layer foamed pipes and double-wall corrugated pipes, as well as PE water supply pipes. It also supports performance detection for rigid plastic plates.

What level of precision does Drop Hammer Test Equipment achieve?

Drop Hammer Test Equipment features a high testing precision with an accuracy rating reaching 0.5%.

What is the maximum testing capacity of Drop Hammer Test Equipment?

The device is configured with a maximum testing energy capacity of 300J.
