Hydrostatic Pressure Testing Machine Suitable for Testing Various Types of Pipes Fittings and Pressure Vessels Accurately

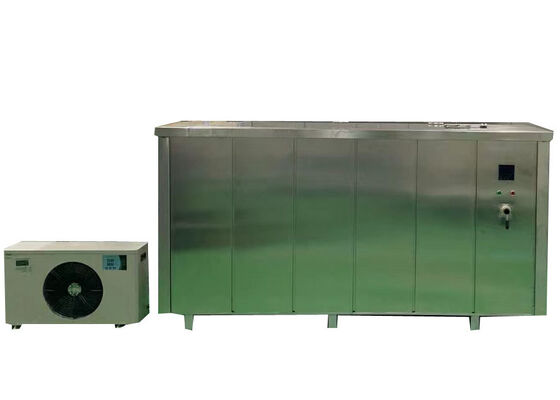

Large Image : Hydrostatic Pressure Testing Machine Suitable for Testing Various Types of Pipes Fittings and Pressure Vessels Accurately

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XGY-20C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Suitable For Testing Various Types Of Pipes Fittings And Pressure Vessels Accurately	Testing Range:	0-20MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine for pipes , Hydrostatic Pressure Testing Machine for fittings , Hydrostatic Pressure Testing Machine for pressure vessels

Hydrostatic Pressure Testing Machine

Professional testing equipment suitable for various types of pipes, fittings, and pressure vessels with high accuracy and reliability.

Applications

Complies with international standards including ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, ISO13479, GB/T 6111, and GB/T 15560
Multiple payment options available: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Premium structural build quality with stable operational performance and multi-functional testing capabilities

Product Overview

XGY-20C model features end caps compatible with pipe dimensions from Φ8mm to Φ1800mm
Multi-functional, user-friendly device with automatic pressure regulation, water filling, and pressure relief protection
Wide high-pressure range suitable for testing pressure resistance of fluid pressure endurance equipment
Ideal for oil and gas, chemical, and construction industries

Key Features

Product Name: Hydrostatic Pressure & Bursting Testing Machine
Customization: OEM service available
Pipe Diameter Range: Φ8-1800mm
Testing Temperature: 10~95℃
Pressure Range: 0-200Bar, 0-20MPA
Pressure Accuracy: -1%~+2%

Compliance Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335

Technical Specifications

Model	XGY-20C
Diameter Range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Storage Mode	PC storage
Print Mode	Color printer output
Test Pressure Range	0.1-20MPa
Control Accuracy	±1%
Display Resolution	0.01MPa
Working Range	5%~100%FS
Indication Error	±1%
Timer Range	0~10000h
Timer Accuracy	±0.1%
Timer Resolution	1s
Power	380V 50Hz three-phase four-wire 1.5KW
End Caps Models	from Φ16 to 630mm
Water Tank Size	According to pipe size
Temperature Range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or others

Support & Services

On-site equipment installation and commissioning guidance
Remote fault troubleshooting and technical consultation
Regular equipment maintenance and repair services
Genuine spare parts and consumables supply
Control system software updates and version upgrades

Frequently Asked Questions

What is the brand of your Plastic Pipe Hydrostatic Pressure Testing Machine?

Our Hydrostatic Pressure Testing Machine is branded JHH, and all units are manufactured in Beijing, China.

What is the main application of this Hydrostatic Pressure Testing Machine?

This machine is designed to test the hydrostatic pressure resistance and bursting strength of plastic pipes.

What types of pipes and materials are compatible with this testing machine?

Compatible with plastic pipes and composite pipes including PP-R, PP-B, PP-A, PVC, PE, PE-X and more.

What is the measurement accuracy of this testing machine?

Measurement accuracy within 0.1% of full-scale reading.

What is the maximum test pressure of this testing machine?

Maximum test pressure reaches 10Mpa, 100 bar (1450 psi).

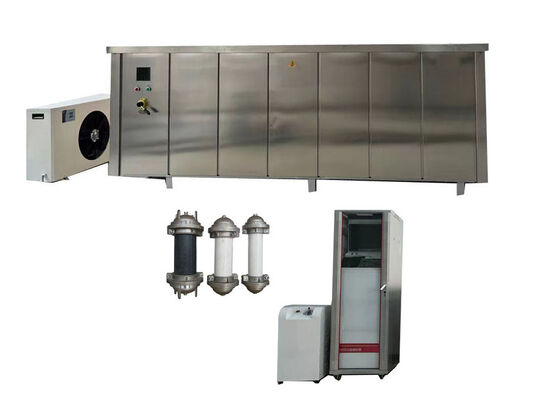

Product Images
