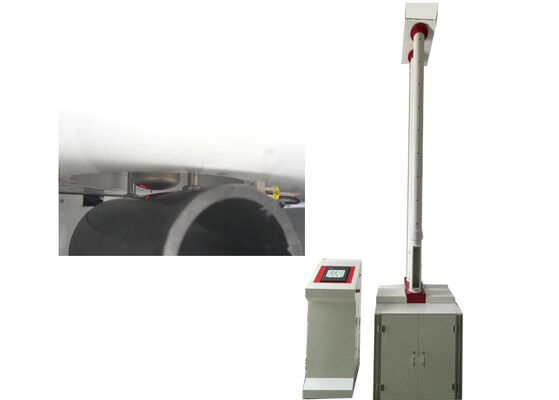

Drop Hammer Test Equipment for Material Impact Resistance Evaluation
Professional drop hammer test equipment designed for evaluating toughness and impact strength of metals, plastics, and composites with exceptional precision and reliability.
Applications
- Falling weight test equipment with PLC control system for determining impact resistance of thermoplastic pipes and fittings
- Pre-set impact height capability with secondary impact prevention function
- Automatic hammer lifting to target height with real-time height display
- XJL Drop Hammer Impact Testing Machine delivers exceptional operational reliability and high measurement precision
- Compliant with ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411 and other major standards
Standard Test Procedure
- Adjust V-shaped specimen holder height using lifting rod on base side
- Place test specimen (pipe) onto holder
- Manually adjust specimen height position
- Perform automatic zero calibration
- Set target impact hammer height and lift hammer to pre-set position
- Release drop hammer to initiate test
Compliance Standards
Certified to satisfy technical requirements of major international and regional testing specifications including ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and other relevant industry standards.
Technical Parameters - Model XJL-630M
| Parameter |
Specification |
| Ambient temperature |
10℃-35℃ |
| Hammer sets (12 total) |
Hammerhead A: 2.75kg, 5.4kg, 9.1kg, 13.6kg
Hammerhead B: 2.7kg, 5.4kg, 9.1kg, 13.6kg
Hammerhead C: 2.7kg, 5.4kg, 9.1kg, 13.6kg |
| Height of the fall |
0mm-3000mm, error≤±2mm |
| Diameter of the sample |
Φ630mm |
| Deviation of impact center from fixture center |
≤2mm |
| Holder |
Flat-plate holder or 120° V-type |
| Power source |
220VAC±10% |
| Outline dimension |
730㎜×610㎜×4850㎜ |
| Net weight |
560kg |
Support and Services
- Complete portfolio of technical support and after-sales services
- Certified engineers and skilled technicians provide professional assistance
- Services include equipment installation, routine maintenance, fault diagnosis, and instrument calibration
- Tailored custom solutions for unique application requirements
- 24/7 specialized service team for technical inquiries and operational concerns
- Detailed product information, custom quotation plans, and professional technical consultation available
Frequently Asked Questions
Q: Could you please provide a basic overview of Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment is a specialized material testing apparatus manufactured by JHH, with manufacturing base located in Beijing, China. It is specially designed to evaluate the impact resistance performance of various test objects.
Q: What core function does Drop Hammer Test Equipment serve?
A: The core function of this Drop Hammer Test Equipment is to evaluate the impact resistance of target products, acting as a critical quality inspection step to verify and uphold finished product quality standards.
Q: What categories of test specimens are compatible with Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment is suitable for impact testing of all types of pipes, including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core layer foam pipes, double-wall corrugated pipes and PE water supply pipes. It is also applicable for impact testing of rigid plastic sheets.
Q: What level of measurement precision can Drop Hammer Test Equipment achieve?
A: Drop Hammer Test Equipment can deliver a maximum measurement accuracy of 0.5%.
Q: What is the peak testing capacity of Drop Hammer Test Equipment?
A: The maximum impact testing energy of this Drop Hammer Test Equipment reaches 300 Joules.
