Electronic Universal Testing Machine Equipped with Safety Features and Calibration Options to Ensure Testing Procedures

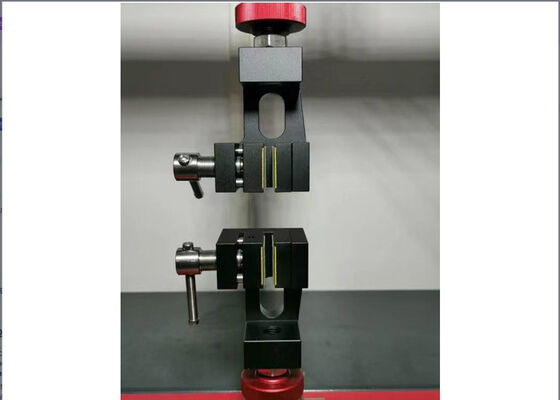

Large Image : Electronic Universal Testing Machine Equipped with Safety Features and Calibration Options to Ensure Testing Procedures

Product Details:

Place of Origin:	CHINA
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XWW-50KN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard wooden box
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Name:	Electronic Universal Testing Machine Equipped With Safety Features And Calibration Options To Ensure Testing Procedures	Test Types:	Tensile, Compression, Bending, Shear, Peel, Adhesion, Etc.
Capacity:	50KN	Force Unit:	Kgf, Gf ,Lbf ,mN, N, KN, Ton
Force-measuring Range:	0.4%~100%FS	Accuracy:	±0.5%
Safety Protection:	Overload, Over-travel, Over-voltage, Over-current	Test Space:	1500*1500mm
Highlight:	Electronic Universal Testing Machine with safety features , Electronic Universal Testing Machine calibration options , Electronic Universal Testing Machine testing procedures

Electronic Universal Testing Machine with Safety Features and Calibration Options

Advanced testing equipment designed to ensure precise and reliable testing procedures with comprehensive safety features and calibration capabilities.

Applications

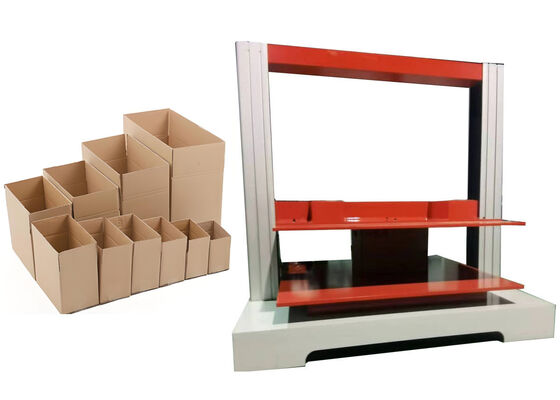

Essential for measuring compressive strength of corrugated carton boxes and packaging materials
Widely applied to tensile, compression, bending and shear performance tests of metallic and non-metallic materials
Equipped with auxiliary fixtures for mechanical property testing of profiles and structural components
Ideal for materials with large deformation and fast testing speed requirements including ropes, tapes, wires, rubber and plastics
Suitable for quality supervision, teaching and research, civil transportation equipment manufacturing, iron and steel metallurgy, automotive, and building materials industries

Core Performance Features

Strength Testing Mode: Measures maximum compressive strength of carton boxes
Fixed-Value Testing Mode: Supports pre-set test parameters for strength and deformation measurement
Stacking Test Mode: Performs stacking performance tests with 12 or 24-hour durations
Optimized Structure: Precision lead screws and guide pillars ensure high operational stability
Servo Motor Control: Compression speed of 10mm/min with return speed up to 100mm/min
High-Precision Sensor: Pressure sensor ensures accurate measurement results
Custom Design: Available based on specific user requirements
Display Options: Computer display or touch screen display configurations available

Technical Parameters

Parameter	Specification
Model	XWW-50KN
Type	Double screw
Max. Load	50KN
Resolution of Load	1/300000
Accuracy Grade	0.5 grade
Force-measuring Range	0.5%~100%FS
Force-measuring Accuracy	≤±0.5%
Range of force control rate	0.005--5%FS/S
Relative error of force control rate	Within±1% of set value
Crossbeam Speed Range	0.001-500mm/min
Test width	1500mm (or according to need)
Total Crossbeam Valid Travel	1500mm
Power Supply	AC220V; 1500w
Weight	1280Kg

Compliance Standards

GB/T1040/1041/9341/8804/9647/17200, GB/6491, GB/T4857.4, GB/T4857.16, ISO7500-1, ISO5893, ASTMD6386, ISO2872, ASTM D642, ISO12048, and more

Customization Options

Custom-tailored service provides optimal testing machines matching specific application requirements. Standard customization includes tensile space of 600mm, overall dimensions of 1000×800×2000mm, stroke of 1000mm, and test force range of 3 to 300kN. Equipped with multiple safety protection functions including overload, over-travel, over-voltage and over-current protection.

Packing and Shipping

Machines are wrapped with extreme care using bubble wrap, foam and protective packaging materials. Securely fastened to skids before transportation via reputable, insured freight carriers with proven service reliability.

Frequently Asked Questions

What is an Electronic Universal Testing Machine?

An Electronic Universal Testing Machine is a specialized testing instrument designed to measure mechanical properties of materials, including tensile strength, compression strength, modulus of elasticity and elongation.

What materials are compatible with Electronic Universal Testing Machines?

Electronic Universal Testing Machines can test a wide range of materials, including metals, plastics, elastomers and composites.

What is the measurement accuracy of Electronic Universal Testing Machines?

Electronic Universal Testing Machines offer high measurement precision, with accuracy within ±0.5% of the actual value.

What tests can be conducted on an Electronic Universal Testing Machine?

These machines can perform tensile testing, compression testing, flexure testing, shear testing and tear testing.

What advantages do Electronic Universal Testing Machines provide?

They offer cost-effective, accurate solutions for measuring mechanical properties of materials. User-friendly operation delivers fast test results with reliable performance.
