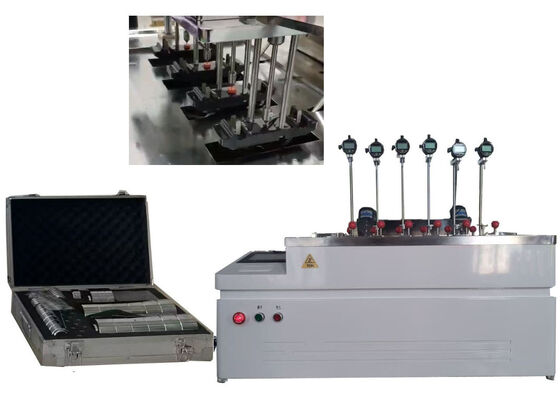

HDT VICAT Testing Machine
Precision apparatus for determining thermal deformation and softening characteristics of various plastic materials
Product Overview
Thermal Deformation Temperature (HDT): Defined as the temperature at which a material sample exhibits a pre-specified degree of deformation under a given applied load and constant temperature rise rate. This measurement indicates the thermal stability performance of the material under sustained loading conditions.
Vicat Softening Point: The temperature at which a weighted needle penetrates 1mm into a plastic test specimen under standardized testing conditions. This demonstrates the heat resistance performance of the material when subjected to combined heat and force.
Testing Methods
Thermal Deformation Temperature Testing: The test specimen is placed on a support with a designated span, a specified load is applied, and the assembly is placed in a progressively heating environment. When the sample deformation reaches the designated value, the recorded temperature is the thermal deformation temperature.
Vicat Softening Point Testing: The test specimen is immersed in a heating medium, and a standard pressure needle is pressed against the sample under a given load. When the pressure needle penetrates 1mm into the specimen, the recorded temperature is the Vicat softening point.
Instrument Characteristics
- Intelligent PID adjustment delivers precise heating rate and accurate temperature control with zero deviation
- Supports thermal deformation testing for various standard specimen splines
- Supports Vicat softening point testing for various standard specimen splines
- Allows simultaneous execution of thermal deformation and Vicat softening point tests
- Automatically calculates required load based on test standards and specimen spline dimensions
- Two optional heating rates with free switching, featuring straightforward operation
- Automatically shuts down temperature control and powers off when testing is completed or upper temperature limit is exceeded
- Equipped with both software over-temperature protection and external mechanical over-temperature protection

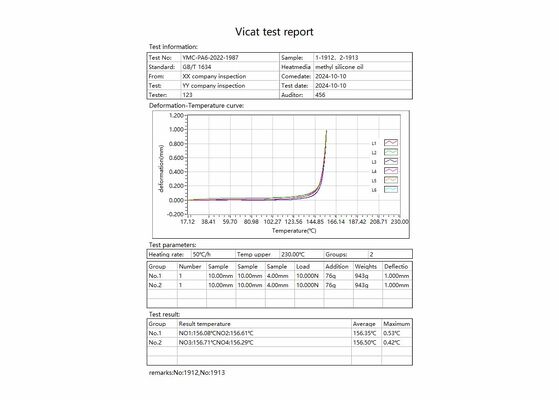

- Diversified report configuration options and comprehensive report printing function
Test Standards
GB/T1633, GB/T1634, GB/T8802, ISO75-2013, ASTM D648, ASTM D1525, EN727
Technical Parameters
| Parameter |
Specification |
| Model |
XRW-300BT-Ⅵ |
| Temperature control range |
Room temperature ~300℃ |
| Maximum temperature error |
±0.5℃ |
| Heating rate |
50℃/h, 120℃/h, or set between 50-120℃/h |
| Temperature measurement point |
1 |
| Test frame number |
6 |
| Range of deformation measurement |
-0.1~10mm |
| Maximum deformation error |
±0.005mm |
| Deformation resolution |
0.001mm |
| Sample supports span |
64mm, 100mm |
| Load bar and press (needle) weight |
74g |
| Voltage and power |
220V, 6KW |
| Thermal expansion coefficient of sample itself |
<0.005/100℃ |
| Working medium |
Methylsilicone oil or transformer oil |
| Cooling-down method |
Natural cooling above 150℃, water cooling below 150℃ or natural cooling |
Support and Services
Our comprehensive technical support and service offerings include:
- Professional installation and initial setup assistance
- Training on proper equipment operation and routine maintenance
- Calibration services to guarantee accurate and reliable test results
- Repair and maintenance services to maintain your equipment in peak operating condition
- Remote technical support via phone or email to address all inquiries and operational concerns
Frequently Asked Questions
What is the official brand of your VICAT Testing Machine?
Our VICAT Testing Machine carries the official brand of JJH.
What is the specific model of this VICAT Testing Machine?
The specific model of this VICAT Testing Machine is XRW-300F.
What certifications does the VICAT Testing Machine hold?
The VICAT Testing Machine holds ISO9001 certification and CE marking.
Where is the VICAT Testing Machine produced?
The VICAT Testing Machine is manufactured in Beijing, China.
What is the MOQ for the VICAT Testing Machine?
The minimum order quantity for the VICAT Testing Machine is 1 set.
What is your monthly manufacturing capacity for the VICAT Testing Machine?
Our monthly manufacturing capacity for the VICAT Testing Machine is 15 sets.
What is the standard lead time for the VICAT Testing Machine?
The standard lead time for the VICAT Testing Machine is 10 to 15 working days.
What packaging is used for the VICAT Testing Machine?
The VICAT Testing Machine is packed in standard export wooden cases.
What payment terms do you accept for the VICAT Testing Machine?
We accept multiple payment terms including T/T, L/C, D/A, D/P, Western Union
