Drop Hammer Test Equipment Offering Versatile Testing Options Including Variable Drop Heights and Impact Mass Adjustments

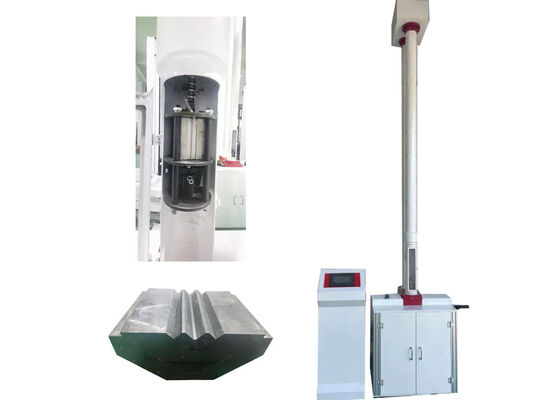

Large Image : Drop Hammer Test Equipment Offering Versatile Testing Options Including Variable Drop Heights and Impact Mass Adjustments

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Offering Versatile Testing Options Including Variable Drop Heights And Impact Mass Adjustments	Test Type:	Drop Hammer Test
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
Control Mode:	Automatic	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	Drop Hammer Test Equipment with variable drop heights , Drop Hammer Test Equipment with impact mass adjustments , versatile Drop Hammer Test Equipment

Drop Hammer Test Equipment

Professional drop hammer testing equipment offering versatile testing options including variable drop heights and impact mass adjustments for comprehensive material impact resistance evaluation.

Applications

Broad application coverage meeting ISO3127 and equivalent testing standards
Extensively used by plastic pipe research institutes, testing laboratories, and production enterprises
Determination of impact resistance and toughness for building materials industry
Ideal testing instrument for scientific research institutions
Features anti-secondary impact function with automatic height calibration
Compatible with both passage method and gradient method testing protocols

Testing Principle

Test specimens receive impact blows from falling strikers with defined mass and geometric profile
Strikers are dropped from pre-calibrated heights onto designated positions
Impact severity adjustable by modifying striker mass and/or drop height
Maximum permissible TIR value set at 10%

Product Features

Professional drop hammer measuring instrument for impact resistance evaluation
Drop hammers with weights ranging from 0.5kg to 16kg
Hammer diameters from D25mm to D90mm
Operating ambient temperature: 10℃ to 35℃
Minimum testing height: 10mm
Accurate measurement and recording of drop energy
Straightforward operation by single operator
Complies with international testing standards

Technical Specifications

Model	XJL-300D
Ambient temperature	10℃-35℃
Drop hammer quality	0.5kg-16kg
Hammer diameter	D25mm, D90mm, etc
Height of the fall	10mm-2000mm, error≤±2mm
Diameter of the sample	Φ16mm-Φ630mm
Deviation of impact center from fixture center	≤2mm
V-type supporting	120°
Power source	220VAC±10%
Outline dimension	715mm×700mm×3900mm
Net weight	380kg

Frequently Asked Questions

Could you provide a basic overview of Drop Hammer Test Equipment?

Drop Hammer Test Equipment is a specialized material testing device independently produced by JHH based in Beijing, China, specifically designed to quantify the impact resistance performance of various test specimens.

What core application function does this Drop Hammer Test Equipment serve?

This equipment is utilized to accurately measure the impact resistance of target products, acting as a critical quality inspection step to validate and uphold finished product quality standards.

What types of test specimens are compatible with this Drop Hammer Test Equipment?

This Drop Hammer Test Equipment supports impact performance testing for a full range of tubular products, including PVC-U water supply pipes, sewage pipes, low-pressure water delivery pipes, low-pressure transmission pipes, core layer foam pipes, double-wall corrugated pipes and PE water supply pipes. It is also applicable for impact testing of rigid plastic sheets.

What level of measurement precision can this Drop Hammer Test Equipment achieve?

This Drop Hammer Test Equipment delivers a premium measurement accuracy rating reaching as high as 0.5%.

What is the maximum testing capacity of this Drop Hammer Test Equipment?

The peak impact testing energy supported by this Drop Hammer Test Equipment reaches 300 Joules.

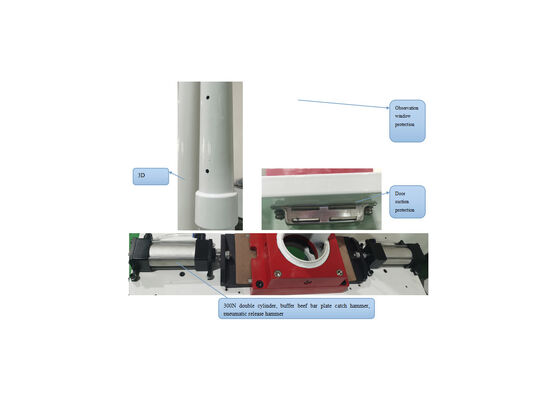

Product Images

Tag:

drop weight impact test machine,

falling weight impact tester,

drop impact test machine
