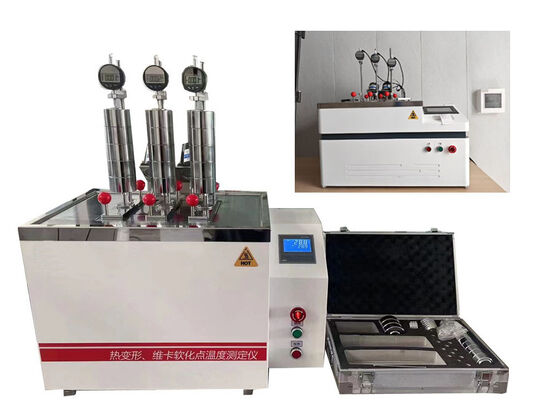

HDT VICAT Testing Machine
Professional instrument for measuring thermal deformation and softening point temperature of plastic materials with high precision and reliability.
Product Overview
KRW-300D series instruments are engineered in full accordance with international testing specifications for determining Vicat softening point temperature and thermal deformation temperature of various polymer materials.
Features digital LCD display and dial gauge for displacement measurement, ensuring stable operation and highly precise measurement data.
Product Introduction
ISO 75 & ASTM D648 compliant Thermal Deformation Vicat Softening Point Tester designed to meet the growing demands of the plastics industry and elevate material research standards.
Complies with latest international standards including ISO 75-1-1993, GB/T1633-2000, GB/T1634-2001, and features computer-based central control for steady operation and high automation level.
Test Standards
GB/T1633, GB/T1634, ISO75, ISO306, ASTM D648, ASTM D1525, ISO 2507
Technical Parameters
| Parameter |
Specification |
| Temperature control range |
Room temperature ～300℃ |
| Heating rate |
120℃/h , 50℃/h |
| Maximum temperature error |
±0.5℃ |
| Temperature measurement point |
1 |
| Test station |
2,3,4,6 Optional |
| Formal measurement measuring tool |
Digital display dial gauge |
| Deformation measurement range |
-1.00～10.00mm |
| Span of sample supports |
64mm,100mm |
| Maximum deformation measurement error |
0.01mm |
| Thermal expansion coefficient of specimen holder |
<0.005mm/100℃ |
| Heating medium |
Methylsilicone oil |
| Cooling method |
Natural cooling above 150℃, water cooling or natural cooling of 150℃ below |
| Upper limit temperature protection |
Stop heating automatically when test temperature reaches upper limit |
| Current source |
3000VA 220VAC 50HZ |
Technical Support & Services
Comprehensive technical support and services to guarantee optimal equipment performance and maximum operational uptime.
- On-Site Installation & Commissioning
- Scheduled Preventive Maintenance
- On-Demand Troubleshooting Support
Packing and Shipping
Packaged in heavy-duty solid wooden crates with air bubble sheeting and shock-absorbing foam padding for maximum protection during transit. Equipment wrapped with sealed plastic film for moisture protection. Shipped via UPS and FedEx.
Frequently Asked Questions
What is the HDT VICAT Testing Machine?
Specialized material testing instrument manufactured by JHH, model XRW-300, designed to measure Vicat softening temperature of thermosetting plastic materials.
What are the core advantages?
Highly precise measurement results, straightforward operation workflows, intuitive user interface, and minimal routine maintenance requirements.
What are the main technical specifications?
Microcomputer control with temperature control accuracy of ±0.5°C, temperature range from ambient to 300°C, with heating rates of 120°C/h or 50°C/h.
What materials are compatible?
Suitable for testing various thermosetting plastics including polyester, epoxy, unsaturated polyester, phenolic and polyurethane materials.
What is the warranty coverage?
JHH provides full 12-month warranty coverage for all HDT VICAT Testing Machine units.
