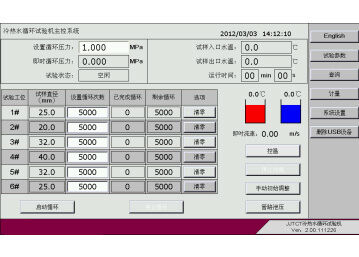

Temperature Control Range:	20°c To Room Temperature (room Temperature> 20°c)	Display Mode:	Touch Screen Display
Highlight:	Pipeline testing equipment for plastic systems , Pressure cycle testing equipment for pipelines , Temperature testing equipment for pipe fittings

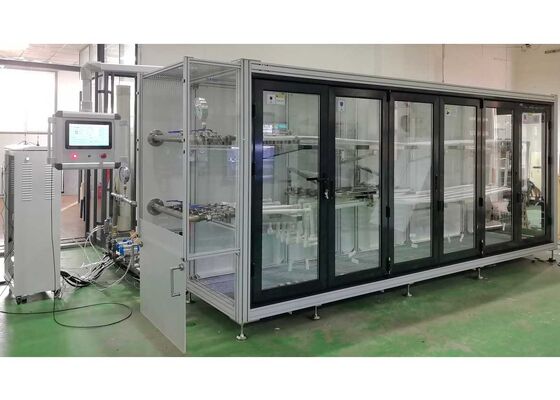

Pipeline Testing Equipment for Long-Term Pressure and Temperature Cycle Testing

This specialized testing system is engineered for durability assessment of plastic pipeline systems and fittings, assembled according to standard specifications. The system applies preset internal pressure while exposing specimens to cyclic cold and hot temperature conditions over programmed testing periods. Upon completion of test cycles, the system automatically inspects pipes and fittings for leakage or rupture defects.

Testing Protocol Overview

This long-term durability verification requires 5,000 hot and cold water circulation cycles per specimen set, with each cycle lasting 30 minutes (15 minutes cold water followed by 15 minutes hot water). The equipment ensures dependable long-term uninterrupted operation and consistent performance stability. Custom-produced for European markets according to technical standards, this machine has demonstrated zero technical or quality defects during years of operation.

System Configuration

The apparatus comprises four core functional modules: cold water exchange execution module, hot water exchange execution module, specimen test chamber, and industrial water chiller. Features include sleek exterior design, modular structural framework, advanced control technology, steady operation performance, dependable quality, and straightforward user-friendly operation.

Instrument Features

Patent-Protected Open Structure Design: High-temperature, high-pressure water circulates exclusively within test specimens and special connecting pipework. The equipment utilizes atmospheric-pressure vessel design with other circulation pipelines running under standard atmospheric pressure, ensuring long-term dependable operation.
Full Closed-Loop Control System: Employs imported all-digital control system providing closed-loop precise adjustment of internal pressure. Automatically regulates main circulation pump and control valves based on real-time indicators including fluid temperature, operating duration, and pipeline flow velocity.
Smart Cycle Switching System: Control system automatically tunes operation status based on real-time monitoring of inlet/outlet water temperatures, tank liquid levels, and switching intervals. Ensures temperature variation between tanks remains below 3°C for ultra-low energy consumption.
Low-Noise Operation Design: Equipped with exclusive water flow controller that significantly reduces operation noise from high-speed water flow.
High-Performance Refrigeration System: Uses imported industrial chillers with water-to-water cooling technology to enhance refrigeration efficiency and extend service life.

Compliance Standards

GB/T 18742.2-2017 Polypropylene piping systems for hot and cold water installations
GB/T 13663.2-2018 Polyethylene (PE) piping systems for water supply
GB/T 15560-1995 Test method for hydraulic instantaneous burst and pressure resistance
GB/T 6111-2018 Thermoplastics pipes for fluid conveyance
ISO 1167-1:2006 Thermoplastics pipes resistance to internal pressure
ISO 1167-2:2006 Preparation of pipe test pieces
ASTM D1598 Time-to-Failure of Plastic Pipe Under Constant Internal Pressure
ASTM D1599 Resistance to Short-Time Hydraulic Pressure

Technical Parameters

Parameter	Specification
Pressure Control Range	0.40 MPa ~ 1.20 MPa
Control Accuracy	Set value ±0.02 MPa
Test Stations	1-6
Maximum Total Measured Cross-Sectional Area	6200 mm² (2 × φ63); customizable
Circulation Time (Hot/Cold Water)	600s to 1800s
Alternating Hot/Cold Water Time	≤60s
Number of Cycles	0 to 100,000
Maximum Straight Pipe Section Length	3700mm
Display Mode	Touch screen display
Control Method	PLC control
Velocity of Flow	>0.9m/s
Water Quality	Pure water, deionized water, or softened water
Automatic Water Supply Pressure	>0.05 MPa
Temperature Display Reading Error	±0.2℃
Temperature Difference (Inlet/Outlet)	<2℃
Cold Water Tank Temperature Range	20°C to room temperature
Hot Water Tank Temperature Range	Room temperature to 95°C
Power Source	380V AC, 50Hz, 25kW
Outline Dimensions	5200 mm × 3200 mm × 2100 mm
Installation Dimensions	6000 mm × 4000 mm × 3000 mm
Total Weight	3210 kg

Main Component Configurations

Component	Quantity
Industrial touchscreen computer	1 unit
Cold water storage cistern	1 unit
Hot water tank	1 unit
Test chamber	1 set
Preloading Device	6 sets
Centrifugal pump of multistage type	1 set
Pneumatic solenoid valve	4
In-line pump	1 set
Fixtures (various sizes)	Multiple sets
