Drop Hammer Test Equipment for Real-World Impact Simulation
Advanced drop hammer impact testing apparatus engineered to simulate real-world impact scenarios for comprehensive product development and safety testing applications.
Product Overview
This drop hammer impact tester operates on a straightforward yet highly efficient mechanical testing principle. Specimens receive impact loads delivered by a weighted impact striker with designated geometric profiles. The striker, with fixed mass, free-falls from a calibrated elevation to strike predefined target zones on test samples. Users can flexibly adjust impact intensity by modifying the striker's dead weight, altering the free-fall height, or adjusting both parameters simultaneously.
Key Features
- Anti-secondary impact interlock mechanism for enhanced safety
- Autonomous calibration of impact drop heights with real-time display
- Supports both pass-fail testing and gradient impact testing protocols
- Streamlined operation workflows with robust safety interlocks
- Exceptional operational stability and precise test data output
- Multi-scenario adaptability for diverse material inspection applications
Applications
This drop hammer impact tester serves as standard inspection equipment for plastic pipeline research institutes, third-party verification laboratories, and production facilities to quantify the anti-impact performance of plastic tubular products. It also functions as a preferred testing device for construction material manufacturers and academic research institutions.
Technical Specifications
| Parameter |
Specification |
| Model |
XJL-300D |
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5, 0.8, 1.0, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12.5kg |
| Hammer Diameter |
D25mm, D90mm |
| Height of the Fall |
10mm-2000mm, error≤±2mm |
| Diameter of the Sample |
Φ16mm-Φ630mm |
| Deviation of Impact Center |
≤2mm |
| V-type Supporting |
120° |
| Power Source |
220VAC±10% |
| Outline Dimension |
720mm×710mm×3950mm |
| Net Weight |
385kg |
Compliance Standards
ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and equivalent international impact testing standards.
Technical Support & Services
Our drop hammer impact testing apparatus is backed by a comprehensive technical service framework covering all post-purchase phases. Our certified engineering and technical personnel deliver specialized professional guidance encompassing equipment commissioning, routine maintenance, fault diagnosis, instrument calibration, and supplementary technical services. We also develop customized testing schemes to fit your unique on-site testing requirements.
Our dedicated service team maintains round-the-clock standby to resolve all technical inquiries and operational issues. Complete lifecycle technical support ensures sustained high-performance operation of your testing equipment.
Frequently Asked Questions
What exactly constitutes drop hammer test equipment?
Drop hammer test equipment refers to dedicated testing apparatus designed to quantify the anti-impact performance of various test samples, manufactured by Beijing-based brand JHH.
What core function does drop hammer test equipment fulfill?
This testing unit assesses material impact resistance, serving as a critical inspection step to validate and guarantee finished product quality standards.
What types of specimens are compatible with drop hammer test equipment?
This tester accommodates an extensive range of tubular products including PVC-U potable water pipelines, drain conduits, low-pressure water delivery tubes, transport piping, foam core layer pipes, double-wall corrugated tubes, PE water supply pipes, and rigid plastic sheets.
How precise is the measurement performance of drop hammer test equipment?
The drop hammer test equipment achieves a measurement precision rating as high as 0.5%.
What ceiling testing capacity can the drop hammer test equipment reach?
The peak impact energy output supported by this drop hammer test machine stands at 300 Joules.

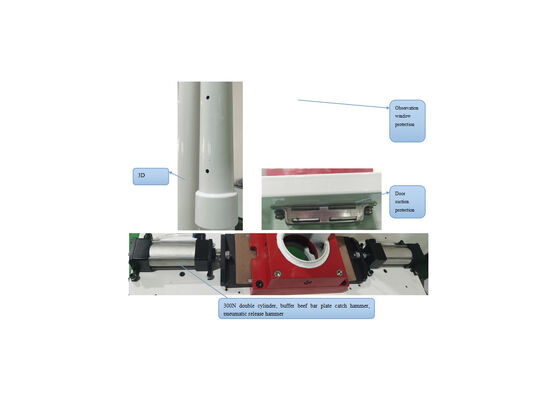

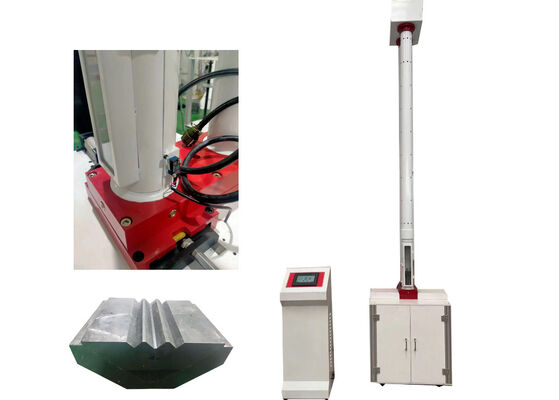

Product Images
