Drop Hammer Test Equipment Featuring Single Chip Microcomputer Control for Impact Testing of Nonmetal Material Products

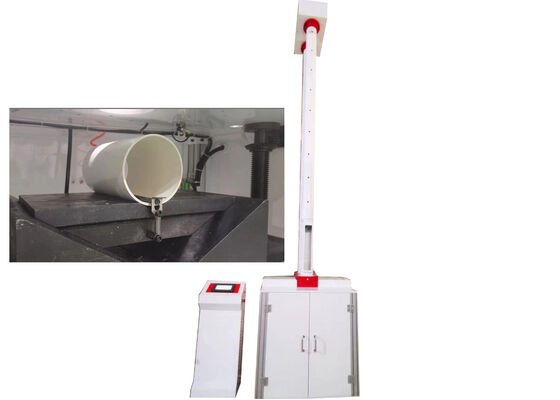

Large Image : Drop Hammer Test Equipment Featuring Single Chip Microcomputer Control for Impact Testing of Nonmetal Material Products

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	XJL-300B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Featuring Single Chip Microcomputer Control For Impact Testing Of Nonmetal Material Products	Travel Of Working Table:	0-630mm
Specimen Diameter:	φ10~630mm	Hammer Diameter:	D25, D90, R5, R10, R30, R50 Can Optional
Hammer Weight:	0.250~16.000kg 0.125kg/ Increment	Max. Impact Height:	2000mm
Highlight:	Drop Hammer Test Equipment , Microcomputer Control Impact Tester , Nonmetal Material Impact Testing

Drop Hammer Test Equipment with Single Chip Microcomputer Control

Advanced impact testing equipment designed for nonmetal material products, featuring automated control systems for precise impact resistance evaluation.

Application

The drop-hammer testing machine is engineered for conducting impact tests on various nonmetal material products. This dedicated testing instrument evaluates material impact resistance and verifies overall quality performance. The device supports both single-test and gradient test methods for standardized impact detection.

Key Features

Dual operational modes including manual and automatic options for flexible, user-friendly operation
Single chip microcomputer control system with automatic hammer grasping, lifting, and height calibration functions
Real-time height display and full-process automatic control of testing procedures
Intelligent automatic zero line calibration for test samples to ensure foundational testing precision
Professional secondary impact prevention device eliminates test interference factors
Automatic safety protection and intelligent reminder systems enhance operational safety
Electric fine-tuning adjustment in bottom working area optimizes sample positioning precision

Structure and Working Principle

This drop hammer testing unit consists of core structural components including workbench, secondary impact prevention mechanism, supporting tube, catheter, hammer body, V type body, automatic drop hammer mechanism, reducer, electric control box and stand.

Working Principle: A specialized hammer body fixture mounted inside the equipment pipeline lifts the hammer body to preset testing height via motor and reducer assembly. When the drop switch is triggered, the hammer body falls freely within the pipeline to strike the test specimen. Impact energy is calculated based on hammer body weight and falling height parameters.

The photoelectric signal-controlled secondary impact prevention mechanism instantly clamps rebounding hammer bodies to avoid secondary impact interference. A V-shaped iron fitting beneath the workbench with guide rails allows specimen positioning adjustment via handwheel rotation.

Compliance Standards

This testing device complies with domestic and international authoritative testing standards including ZB N72 026, GB/T14152, GB/T14153, GB/T100021, GB/T13664, GB/T58361, GB/T18847, GB/T16800, GB/T8814, GB/T 6112, ABN72026, ISO 4422, ISO 3127 and ASTM D2444.

Technical Parameters

Model	XJL-300B
Max. Impact Energy	300J
Max. Height	2000mm
Drop Weight	0.25-16kg
Impact Center and Fixture Center Error	2mm
Hammer Head	R5mm, R10mm, R30mm (customizable)
Selected to Fit Customer Requirements	d25, d90
Table Travel	0mm-630mm
Specimen Diameter	10mm~630mm
Pallet Type	120°V-type with or without support, clamp flat pallet
Power	AC220V 50Hz

Standard Configuration

No.	Name	Unit	Quantity	Remarks
1	Host	set	1
2	Electric Cabinet	set	1
3	Weight	piece	Multiple	0.1kg (1), 0.125kg (2), 0.2kg (1), 0.25kg (1), 0.5kg (1), 1.0kg (2), 2kg (1), 3Kg (1), 6Kg (1)
4	Impact Hammer	set	2	0.5kg & 1.0kg (includes upper/lower tray, hammer tail, joint)
5	Hammer Head	set	2	D25 & D90
6	Double Sides V Iron	set	1
7	One Sided V Iron	set	1	Installed on main machine
8	Documentation		3	Operating instruction, Packing list, Certificate of approval
