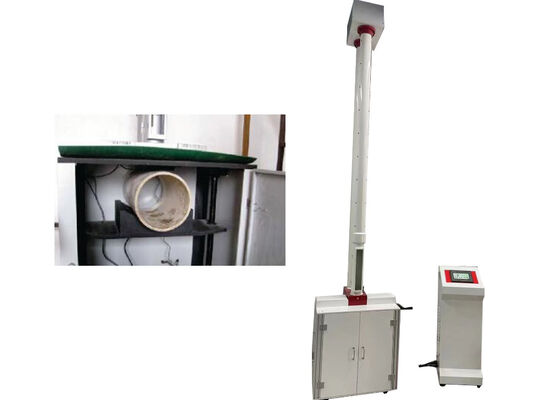

Drop Hammer Test Equipment with Frame Structure Preventing Secondary Impact and Electric Control Box for Impact Testing

Drop Hammer Test Equipment with Frame Structure Preventing Secondary Impact and Electric Control Box for Impact Testing
Drop Hammer Test Equipment with Frame Structure Preventing Secondary Impact and Electric Control Box for Impact Testing
video play

Large Image :  Drop Hammer Test Equipment with Frame Structure Preventing Secondary Impact and Electric Control Box for Impact Testing

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001, CE
Model Number: XJL-300B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Drop Hammer Test Equipment With Frame Structure Preventing Secondary Impact And Electric Control Box For Impact Testing Travel Of Working Table: 0-630mm
Specimen Diameter: φ10~630mm Hammer Diameter: D25, D90, R5, R10, R30, R50 Can Optional
Hammer Weight: 0.250~16.000kg 0.125kg/ Increment Max. Impact Height: 2000mm
Highlight:

drop hammer test equipment with electric control

,

drop hammer impact testing equipment with frame

,

drop hammer test machine preventing secondary impact

Drop Hammer Test Equipment with Frame Structure Preventing Secondary Impact and Electric Control Box for Impact Testing
Professional drop hammer impact testing machine designed for evaluating impact resistance performance of plastic pipes, sheets, and profiles. Widely used in scientific research institutes, universities, quality inspection authorities, and manufacturing plants.
Equipment Overview
The drop hammer impact testing machine features a dual-tube structure with complete assembly comprising working table, secondary impact prevention mechanism, hammer body, lifting mechanism, automatic drop hammer mechanism, motor, reducer, electric control box, frame and auxiliary components.
Key Features
  • Dual operating modes: manual and automatic with user-friendly procedures
  • Single chip microcomputer control technology with automatic hammer grasping, lifting, and height alignment
  • Real-time height display and automatic zero line calibration for precise testing
  • Professional secondary impact prevention device eliminates test interference
  • Built-in automatic protection and intelligent prompt functions for enhanced safety
  • Electric adjustment of lower working space optimizes sample positioning precision
Structure and Working Principle
The testing machine integrates multiple core components including workbench, preventing secondary impact mechanism, supporting tube, catheter, hammer body, V type body, automatic drop hammer mechanism, reducer, electric control box and stand.
Working Principle: A dedicated hammer body fixture elevates the hammer body to preset testing height. After activating the drop switch, the hammer body falls freely to strike test specimens. Impact energy is calculated based on hammer body weight and drop height. The photoelectric signal controlled preventing secondary impact mechanism clamps rebounding hammer bodies to avoid secondary impact.

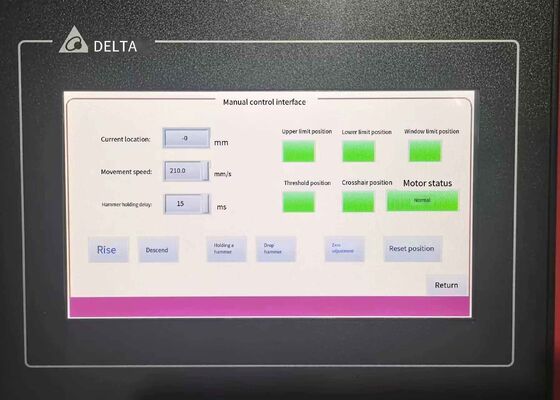

Drop Hammer Test Equipment structural overview Close-up view of drop hammer mechanism Drop hammer test equipment control panel and display
Technical Specifications
Parameter Specification
Model XJL-300B
Maximum Impact Energy 300J
Maximum Height 2000mm
Drop Weight Range 0.25-16kg
Impact Center Accuracy 2mm error
Hammer Head Options R5mm, R10mm, R30mm (customizable)
Table Travel 0mm-630mm
Specimen Diameter Range 10mm~630mm
Power Requirements AC220V 50Hz
Standard Compliance
Conforms to ISO3127, BS EN1411, BS EN744, ZB N72 026, GB/T14152, 14153, 100021, 13664, 58361, 18847, 16800, 8814, GB/T 6112, ABN72026, ISO 4422, ASTM D2444.
Standard Configuration
Item Name Unit Quantity Remarks
1 Host set 1
2 Electric Cabinet set 1
3 Weights (various sizes) pieces 11 total 0.1kg, 0.125kg (x2), 0.2kg, 0.25kg, 0.5kg, 1.0kg (x2), 2kg, 3kg, 6kg
4 Impact Hammer sets 2 0.5kg & 1.0kg sets with trays and joints
5 Hammer Head sets 2 D25 and D90
6 Double Sides V Iron set 1
7 One Sided V Iron set 1 Installed on main machine
8 Documentation copies 3 Operating instruction, Packing list, Certificate of approval
Equipment Images
Drop hammer test equipment in laboratory setting Detailed view of hammer mechanism and controls Drop hammer test equipment operational demonstration
