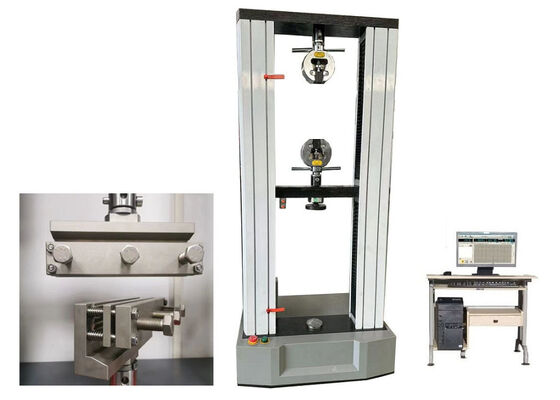

Electronic Universal Testing Machine
The Electronic Universal Tension and Compression Machine achieves force-measuring accuracy within ±0.5%, guaranteeing high precision and reliability of all test output data. Featuring cutting-edge technical design, this equipment integrates automatic calibration, overload protection, and automatic data acquisition functions to simplify daily operations and maintenance.
Applications

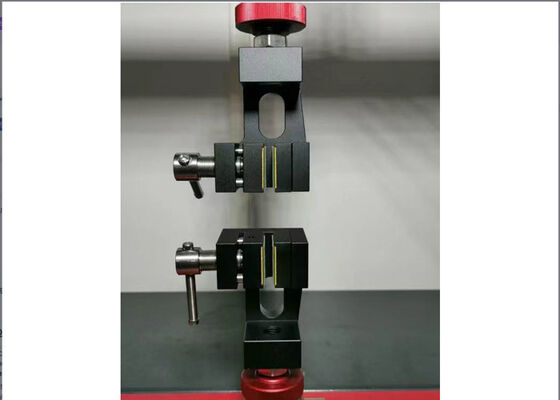

The XWW series testing machine serves multiple industrial segments including rubber, plastics, PVC pipes, sheets, metal wires, cables, waterproof substances, and thin-film production. Equipped with specialized fixtures, it performs tensile, compression, bending, shear, peeling, and tear tests, plus customized mechanical measurements.
Complies with GB/T16491-1996, ISO5893, ASTM D638, ASTM D695, and ASTM D790 standards.
Technical Parameters
| Parameter |
Specification |
| Model |
XWW-10KN |
| Type |
Double screw |
| Max. Load |
10KN |
| Resolution of Load |
1/300000 |
| Accuracy Grade |
0.5 grade |
| Force-measuring Range |
0.5%~100%FS |
| Force-measuring Accuracy |
≤±0.5% |
| Crossbeam Speed Range |
0.001-500mm/min |
| Test Width |
380mm (or according to needs) |
| Total Crossbeam Valid Travel |
800mm |
| Power Supply |
AC220V; 400w |
| Weight |
290Kg |
| Packing Size |
700mm×420mm×2000mm |
Customization Service
Our tailor-made solutions provide Electronic Universal Testing Machines configured to unique onsite testing requirements. Custom models feature 600mm tensile clearance, overall dimensions of 1000mm×800mm×2000mm, 1000mm effective stroke, and test force ranging from 3kN to 300kN. Preinstalled safety systems include overload, over-travel, over-voltage, and over-current protection.
Packing and Shipping
Each machine is carefully packaged in standard export wooden boxes with shock-proof materials. Devices are firmly fixed on standard slide boards and transported by reputable, insured freight service providers to ensure safe delivery.
Frequently Asked Questions
Q1: What core functions does an Electronic Universal Testing Machine possess?
A1: This dedicated testing apparatus characterizes diverse material mechanical indexes including tensile strength, compression strength, modulus of elasticity, and elongation.
Q2: What materials are eligible for testing on this equipment?
A2: Suitable for mechanical inspection of metals, plastics, elastomers, and various composite materials.
Q3: How is measurement precision defined for these machines?
A3: This series boasts outstanding measuring accuracy with deviation controlled within ±0.5% relative to true measured values.
Q4: What mechanical tests can be performed?
A4: The equipment accommodates tensile testing, compression testing, flexure testing, shear testing, and tear testing.
Q5: What practical advantages does this machine offer?
A5: It provides economical and precise detection of material mechanical performances with user-friendly operation that shortens test cycles and outputs data promptly.
