Electronic Universal Testing Machine
Professional testing equipment designed for control and material testing in industrial and research environments, offering comprehensive mechanical property analysis.
Applications

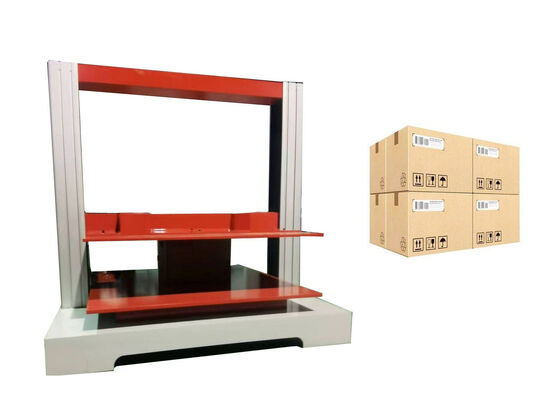

This carton compression testing machine serves as core equipment for evaluating the compressive performance of carton containers and packaging materials.
Beyond carton testing, this multi-functional apparatus supports tensile, compression, bending, and shear experiments for metallic and non-metallic specimens. Equipped with assorted auxiliary fixtures, it analyzes mechanical attributes of various profiles and assembled components. Ideal for testing materials with large deformation ranges requiring rapid testing, including ropes, adhesive tapes, metal wires, rubber, and plastic products.
Perfectly suited for quality inspection departments, educational research institutions, aerospace industries, iron and steel metallurgy, automobile manufacturing, building materials, and related sectors.
Product Features
- Strength Test: Measures the ultimate strength of carton specimens
- Definite Value Test: Preset parameters to inspect carton strength and deformation
- Stacking Test: Supports continuous stacking testing for 12 or 24 hours
- Optimized Structure: Precision screw threads and guide pillars ensure outstanding operational stability
- Servo Motor Power: Compression speed of 10mm/min with maximum return speed of 100mm/min
- High-Precision Sensor: Delivers highly accurate measuring data
- Custom Solutions: Tailored designs to match specific application requirements
- Display Options: Compatible with computer terminal and touch screen interfaces
Technical Specifications
| Model | XWW-50KN |
| Type | Double screw |
| Max. Load | 50KN |
| Resolution of Load | 1/300000 |
| Accuracy Grade | 0.5 grade |
| Force-measuring Range | 0.5%~100%FS |
| Force-measuring Accuracy | ≤±0.5% |
| Range of force control rate | 0.005--5%FS/S |
| Relative error of force control rate | Within±1% of set value |
| Measurement range (Metal extensometer) | 0.2-100%FS |
| Range of deformation rate | 0.02~5%FS/S |
| Error of indication | Within±0.5% |
| Resolution | 1/300000 |
| Measurement range (Large deformation) | 5mm-1000mm |
| Error of indication | Within±0.5% |
| Resolution | 0.001mm |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.001-500mm/min |
| Test width | 1500mm (or according to needs) |
| Total Crossbeam Valid Travel | 1500mm |
| Clamps | Compression plate |
| PC System | Control force, displacement and deformation |
| Power Supply | AC220V; 1500w |
| Standards | GB/T1040/1041/9341/8804/9647/17200, GB/6491, GB/T4857.4, GB/T4857.16, ISO7500-1, ISO5893, ASTMD6386, ISO2872, ASTM D642, ISO12048, etc |
| Weight | 1280Kg |
Customization Options
Our personalized customization service provides tailored Electronic Universal Testing Machines that perfectly align with exclusive application requirements. Custom configurations include 600mm tensile space, overall dimensions of 1000mm×800mm×2000mm, 1000mm functional stroke, and test force ranging from 3kN to 300kN.
Integrated multi-dimensional safety safeguards include overload, over-travel, over-voltage, and over-current protection to prevent operational risks. This high-efficiency testing solution features comprehensive safety architectures and flexible custom configurations to satisfy diversified testing demands.
Technical Support & Services
As the original equipment manufacturer, we deliver end-to-end specialized after-sales services and technical guidance for the Electronic Universal Testing Machine.
Technical Assistance
Our support team addresses all technical inquiries and provides professional operational guidance. Seasoned technical specialists handle equipment commissioning, daily operational guidance, and fault elimination across different scenarios.
Repair Services
We supply dedicated repair solutions with professional technicians who accurately locate malfunctions and perform targeted remediation. Genuine accessories are available for replacement of damaged components.
Preventative Maintenance
Systematic preventative maintenance packages include comprehensive inspections of devices and accessory parts to verify stable operating status, minimizing breakdown risks and lowering long-term operating costs.
Professional Training
Customized training programs instruct personnel on standardized operation protocols and daily maintenance skills, maximizing service efficiency and equipment lifespan.
Warranty Policy
All Electronic Universal Testing Machine units are covered by our official warranty. Any non-artificial functional failures within the valid warranty term receive free maintenance or component replacement services.
Frequently Asked Questions
What is an Electronic Universal Testing Machine?
This professional apparatus evaluates diverse mechanical characteristics of materials, including tensile strength, compression strength, modulus of elasticity, and elongation rate.
What materials can be tested with an Electronic Universal Testing Machine?
Applicable to a wide spectrum of material categories, including metallic materials, plastics, elastomeric substances, and composite materials.
How accurate are Electronic Universal Testing Machines?
This series delivers outstanding measurement precision, with deviation kept within ±0.5% relative to the real measured value.
What types of tests can be performed with an Electronic Universal Testing Machine?
Supports a full range of mechanical test items, including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
What are the benefits of using an Electronic Universal Testing Machine?
Provides a practical solution for material mechanical property detection with high cost efficiency and reliable measuring accuracy. Features intuitive operation and rapid test data generation.
