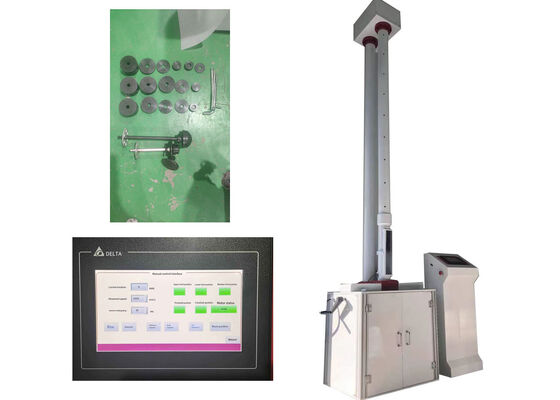

Drop Hammer Test Equipment with Adjustable Drop Height and Impact Energy
This drop hammer impact tester employs a straightforward and reliable working principle. A hammer with specified mass and contour is released from a preset height to strike test pieces at designated positions. Operators can flexibly adjust impact intensity by modifying the impactor weight or varying the drop height.
This testing device offers broad application coverage and fully conforms to ISO3127 and equivalent test standards. It is widely adopted by plastic pipe R&D institutions, testing laboratories, and production workshops to assess product impact resistance. The equipment also serves as an ideal testing tool for enterprises and research bodies within the building materials industry.
The equipment features protection against secondary impacts, automatically calculates impact height, and displays relevant data in real time. It supports both channel method and gradient method for test implementation. This drop hammer impact testing machine offers easy operation, high safety, and operational stability.
Applications
As a premium-grade solution within Building Materials Testing Equipment, the JINHAIHU XJL-300A Drop Hammer Test Equipment is manufactured in Beijing, China and holds ISO9001 quality certification. Characterized by sturdy construction and precise test results, this unit excels at evaluating impact resistance properties of various materials with strong scenario adaptability across multiple environments:
- Construction sites
- Production factories
- Research & development centers
- Quality control laboratories
- Academic research institutes
Compliance Standards
ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and more.
Technical Parameters
| Parameter |
Specification |
| Model |
XJL-300D |
| Ambient temperature |
10℃-35℃ |
| Drop hammer quality |
0.5, 0.8, 1.0, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12.5kg (customizable) |
| Hammer diameter |
D25mm, D90mm |
| Height of the fall |
10mm-2000mm, error≤±2mm |
| Diameter of the sample |
Φ16mm-Φ630mm |
| Deviation of impact center from fixture center |
≤2mm |
| V-type supporting |
120° |
| Power source |
220VAC±10% |
| Outline dimension |
720mm×710mm×3950mm |
| Net weight |
385kg |
Support and Services
Our brand delivers comprehensive after-sales assistance and technical services for Drop Hammer Test Equipment. Our technical specialists and senior engineers handle equipment commissioning, routine maintenance, fault diagnosis, instrument recalibration, and other technical services. We develop tailored service schemes to match unique operational requirements.
We prioritize premium client servicing with support staff available around the clock to resolve inquiries and address operational issues.
Packing and Shipping
All Drop Hammer Test Equipment is secured inside robust wooden crates to ensure safe delivery. Each package includes the main device, operation manuals, and all accompanying components. Distinct markings of equipment name, model, and serial number are posted on each crate for easy identification.
We prepare all essential shipping documents including commercial invoices, packing lists, and required certifications. Shipping expenses are calculated according to destination and delivery method.
Frequently Asked Questions
What is Drop Hammer Test Equipment?
Developed and produced by JHH based in Beijing, China, Drop Hammer Test Equipment evaluates the impact resistance performance of various test samples.
Why do we need Drop Hammer Test Equipment?
This testing device quantifies the anti-impact capability of specimens, serving as a crucial method to verify and stabilize overall product quality.
What test samples are compatible with Drop Hammer Test Equipment?
It supports testing for extensive tubular products including PVC-U water supply pipes, sewage pipes, low-pressure water delivery pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.
How precise is the Drop Hammer Test Equipment?
This testing device delivers high testing precision with an error tolerance as low as 0.5%.
What is the maximum loading capacity of Drop Hammer Test Equipment?
The Drop Hammer Test Equipment features a peak testing energy of 300J for impact testing tasks.
