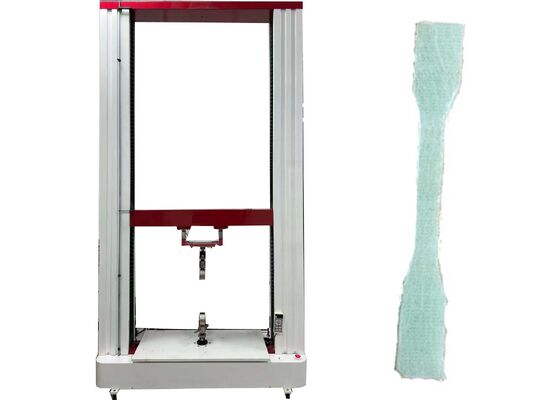

Electronic Universal Testing Machine Computer Controlled XWW 20KN Suitable for Comprehensive Material Testing Applications

Large Image : Electronic Universal Testing Machine Computer Controlled XWW 20KN Suitable for Comprehensive Material Testing Applications

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JINHAIHU
Certification:	ISO9001, CE
Model Number:	XWW-20KN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard wooden case
Delivery Time:	10-15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Product Name:	Electronic Universal Testing Machine Computer Controlled XWW 20KN Suitable For Comprehensive Material Testing Applications	Control Mode:	Cumputer
Max. Force:	20KN	Standard:	ISO7500-1, ISO5893,ISO9969, ASTMD638\695\790
Accuracy Grade:	0.5%	Force-measuring Range:	0.4%~100%FS
Crossbeam Displacement Resolution:	0.001mm	Crossbeam Speed Range:	0.05-500mm/min
Highlight:	20KN electronic universal testing machine , computer controlled material testing machine , universal testing machine for comprehensive applications

Electronic Universal Testing Machine Computer Controlled XWW 20KN

Advanced computer-controlled universal testing machine designed for comprehensive material testing applications including tension, compression, bending, and specialized mechanical tests.

Product Overview

The XWW-20KN Computer Controlled Universal Material Tension Compression Bending Testing Machine is engineered to conduct multiple mechanical tests including tension, compression, bending, cutting, peeling and splitting for metallic and non-metallic specimens. Furthermore, it is applicable to implement the plastic pipe ring stiffness test for relevant pipe products.

Technical Specifications

Parameter	Specification
Model	XWW-20KN
Type	Floor model with single test space
Max. Load	20KN
Accuracy Grade	0.5%
Force-measuring Range	0.4%~100%FS
Force-measuring Accuracy	≤0.5%
Deformation-measuring Range	2%~100%FS
Deformation-measuring Accuracy	0.5%
Crossbeam Displacement Resolution	0.001mm
Crossbeam Speed Range	0.05-500mm/min
Displacement Speed Accuracy	≤ 0.5%
Test Width	380
Total Crossbeam Travel	700mm
Sample Size	Max.2514mm(widethick) - Customizable
Power Supply	AC220V; 750w
Standards Compliance	ISO7500-1, ISO5893, ISO9969, ASTMD638/695/790

Software Features

Comprehensive test routines for tension, compression, bending, shear and peeling tests

Windows-based operation with intuitive interface and low learning curve

Multi-language support (Simplified Chinese, Traditional Chinese, English)

User management with up to 10 independent accounts and password protection

Configurable overload safeguard mechanism with user-defined thresholds

Real-time display of stress-strain variations and unit conversion

Multiple test curve options: load-displacement, load-time, displacement-time, stress-strain, load-elongation

Dual calibration system with automatic zero reset and data import

Compatibility with international standards: ISO, JIS, ASTM, DIN, GB

Overlay display for comparative analysis of multiple test curves

Automatic calculation of mechanical parameters including maximum force, yield strength, tensile strength, elastic modulus

System Configuration

AC servo motor and driver assembly
Dedicated speed reduction assembly
Single 20KN load cell for force detection
Two high-precision ball screws
Dedicated circuit control board
Servo-based centralized control system
Transmission gear assembly
Desktop personal computer
Color inkjet printer for test reports
Complete testing fixtures: tensile, compression, and bending jigs
Standalone deformation measuring device
Installation software on optical disc
Technical documentation package
Multipurpose tool kit with instruction manuals and certificates

Product Images
