Electronic Universal Testing Machine
Providing consistent and accurate results in tensile, compression, and flexural strength testing with ±0.5% force measurement accuracy.
Product Overview
This advanced Electronic Universal Tension and Compression Testing Machine delivers precise and reliable test data with force measurement accuracy maintained within ±0.5%. Engineered with sophisticated technical design, it features automatic calibration, overload safeguards, and automatic data acquisition functions to simplify daily operation and routine maintenance.
The testing apparatus performs comprehensive mechanical property detection on diverse materials including metals, plastics, rubber, fabrics, and ceramics. Widely applied in quality supervision, scientific research, and professional material testing laboratories, this equipment efficiently completes tensile, compression, bending, and shear mechanical tests with simple operation.
Applications
The XWW series testing machine offers extensive application coverage across multiple industries including rubber, plastic, PVC pipes, sheets, metallic wires, cables, waterproof materials, and films. Equipped with assorted interchangeable accessories, the device conducts comprehensive mechanical assessments involving tension, compression, bending, shearing, peeling, and tearing operations.
This universal testing device serves as a mainstream solution for laboratories and quality control departments to implement material quality evaluation and mechanical performance analysis. The unit is engineered and fabricated in accordance with authoritative industrial specifications including GB/T16491-1996, ISO5893, ASTM D638, ASTM D695, and ASTM D790.
Technical Parameters
| Parameter |
Specification |
| Model |
XWW-10KN |
| Type |
Double screw |
| Max. Load |
10KN |
| Resolution of Load |
1/300000 |
| Accuracy Grade |
0.5 grade |
| Force-measuring Range |
0.5%~100%FS |
| Force-measuring Accuracy |
≤±0.5% |
| Range of force control rate |
0.005--5%FS/S |
| Relative error of force control rate |
Within±1% of set value |
| Metal extensometer measurement range |
0.2-100%FS |
| Range of deformation rate |
0.02~5%FS/S |
| Error of indication |
Within±0.5% |
| Resolution |
1/300000 |
| Large deformation measurement range |
5mm-1000mm |
| Crossbeam displacement resolution |
0.001mm |
| Crossbeam speed range |
0.001-500mm/min |
| Test width |
380mm (or according to needs) |
| Total crossbeam valid travel |
800mm |
| Clamps |
Wedge Grip (or according to your needs) |
| PC System |
Control force, displacement and deformation |
| Power Supply |
AC220V; 400w |
| Weight |
290Kg |
| Packing size |
700mm*420mm*2000mm |
Customization Options
Our tailored service program configures exclusive Electronic Universal Testing Machine solutions that align with clients' unique operational demands. Custom models feature 600mm tensile clearance, overall dimensions of 1000mm×800mm×2000mm, and 1000mm functional stroke, with test force ranges from 3kN to 300kN.
Embedded with multi-dimensional safety mechanisms including overload, over-travel, over-voltage, and over-current protection functions to eliminate potential operational risks and ensure operator safety.
Support and Services
Technical Assistance
Our technical staff remains accessible to resolve inquiries and provide operational guidance throughout equipment usage. Specialists assist with equipment deployment, daily operation specifications, and fault elimination to guarantee smooth testing workflows.
Repair Services
Customized overhaul and remediation solutions with skilled technicians who pinpoint underlying malfunctions and perform targeted fixes. Genuine accessories and spare parts are provided for efficient component replacement.
Preventative Maintenance
Routine preventive maintenance packages for long-term equipment management include systematic inspections of the entire device and accessories to verify stable working status, reducing breakdown risks and extending service lifespan.
Training Programs
Targeted instructional courses train personnel on standardized operating procedures and daily maintenance skills, enabling teams to maximize equipment performance and utilization rates.
Warranty Coverage
All units include an official manufacturer's warranty. Qualified product failures or functional defects occurring within the warranty term receive free maintenance or direct part replacement.
Frequently Asked Questions
What is an Electronic Universal Testing Machine?
This testing apparatus examines diverse mechanical characteristics of materials, covering tensile strength, compressive strength, elastic modulus, and elongation rate with precision and reliability.
What materials can be tested?
Applicable for property inspection on a wide range of substances including metals, plastics, elastic materials, and composite materials across various industries.
How accurate are the testing results?
The equipment delivers outstanding measurement precision with measuring deviation limited to ±0.5% relative to actual numerical values, ensuring reliable data.
What types of tests can be performed?
Supports multiple mechanical inspection modes including tension, compression, bending, shearing, and tearing assessment tasks with interchangeable accessories.
What are the main benefits?
Offers a cost-effective, highly precise solution for material mechanical performance detection with simple operation and efficient test outcome generation.

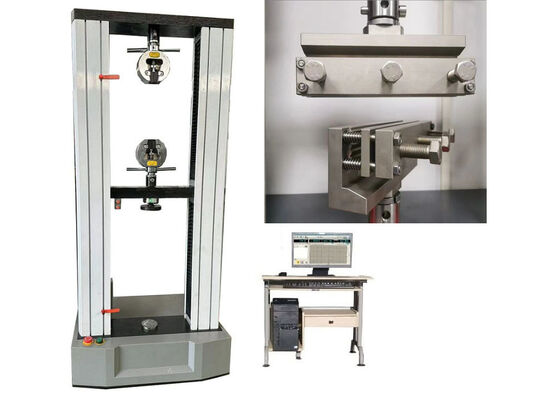

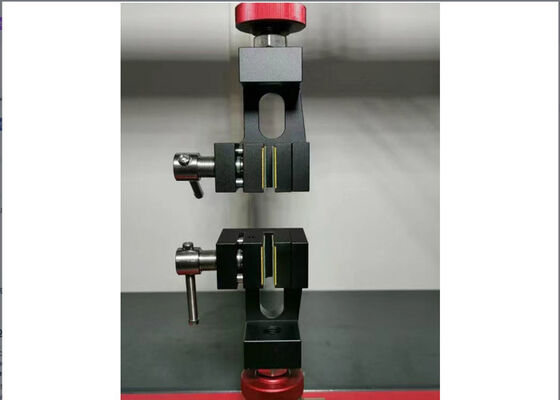

Product Images
