Drop Hammer Test Equipment Enabling Precise Impact Force Application to Determine Material Resistance and Failure Modes

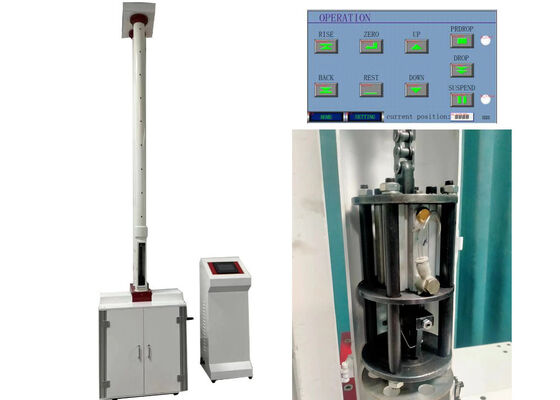

Large Image : Drop Hammer Test Equipment Enabling Precise Impact Force Application to Determine Material Resistance and Failure Modes

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Enabling Precise Impact Force Application To Determine Material Resistance And Failure Modes	Test Type:	Drop Hammer Test
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
Control Mode:	Automatic	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	drop hammer test equipment with warranty , precise impact force test equipment , material resistance drop hammer tester

Drop Hammer Test Equipment

Professional testing instrument for precise impact force application to determine material resistance and failure modes with maximum testing energy of 300J.

Equipment Overview

This advanced drop hammer test equipment features a wide weight range from 0.5kg to 16kg, providing exceptional flexibility for diverse testing applications. With multiple hammer dimension specifications including D25mm and D90mm, the system accommodates various materials and structural components with different contours and dimensions.

Key Specifications

Model	XJL-300D
Ambient Temperature	10℃-35℃
Drop Hammer Quality	0.5kg-16kg
Hammer Diameter	D25mm, D90mm, etc.
Height of the Fall	10mm-2000mm, error≤±2mm
Sample Diameter	Φ16mm-Φ630mm
Impact Center Deviation	≤2mm
V-type Supporting	120°
Power Source	220VAC±10%
Outline Dimension	715mm×700mm×3900mm
Net Weight	380kg

Product Features

Product Name: 0-300J Test Range Drop Hammer Test Equipment with D90mm Hammer Diameter for PVC-O
Hammer Diameter: Multiple dimensional options including D25mm, D90mm and other specifications
Drop Hammer Quality: Adjustable weight range from 0.5kg to 16kg
Maximum Height: Effective testing height up to 2000mm
Standards Compliance: Conforms with ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411 and other industrial standards
High Precision: Testing precision of 0.5%

Applications

This equipment is engineered for impact assessment of non-metallic substances including plastic, glass, pottery and related materials. It evaluates anti-impact strength capacity and supports testing on materials with identical types and specifications for quality comparison. Suitable for various pipe products including PVC-U water supply pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe, and hard plastic plates.

Technical Support & Services

We provide comprehensive technical backing and after-sales service including field installation, routine upkeep, fault diagnosis and instrument calibration. Custom technical solutions are available for individualized application requirements. Our service personnel are available 24/7 to respond to inquiries and resolve technical issues promptly.

Packing & Shipping

All equipment units are securely encased in export-grade wooden crates for full protection during transit. Each package includes the main test unit, official operation manuals, supporting components and spare accessories. Complete documentation is prepared for global logistics procedures including commercial invoices, packing lists and required certificates.

Frequently Asked Questions

What is Drop Hammer Test Equipment?

Professional testing instrument from Beijing JHH designed for evaluating impact resistance performance of various test samples.

What is the core function?

Assesses impact resistance of different products for standardized product quality validation.

What test objects are applicable?

Multiple pipe products and hard plastic plates including PVC-U, PE, and various plastic materials.

What precision level does it achieve?

High testing precision of 0.5%.

What is the maximum testing energy?

Maximum testing energy of 300J.
