Drop Hammer Test Equipment Compliant with International Test Methods Providing Accurate Impact Testing for Plastic Pipes

Drop Hammer Test Equipment Compliant with International Test Methods Providing Accurate Impact Testing for Plastic Pipes
Drop Hammer Test Equipment Compliant with International Test Methods Providing Accurate Impact Testing for Plastic Pipes
video play

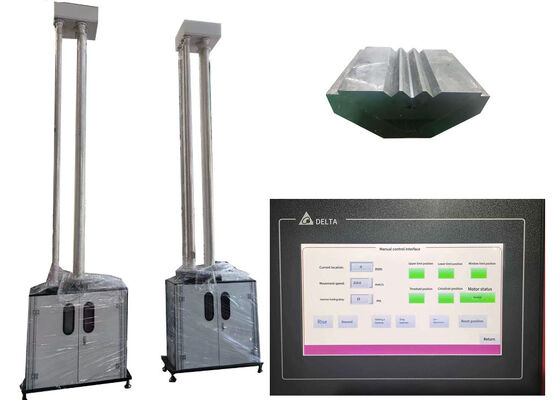

Large Image :  Drop Hammer Test Equipment Compliant with International Test Methods Providing Accurate Impact Testing for Plastic Pipes

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001, CE
Model Number: XJL-630S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 15~20 work days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Drop Hammer Test Equipment Compliant With International Test Methods Providing Accurate Impact Testing For Plastic Pipes Travel Of Working Table: 10-630mm
Specimen Diameter: φ16~630mm Hammer Diameter: D25, D90
Hammer Weight: 0.5kg-16kg Height Of The Fall: 20mm-2000mm，error≤±2mm
Hammer Suction System: Vacuum System Speed Ratio Of Lifting Hammer: 2 M/s
Outline Dimension: 930mm×700mm×3740mm Net Weight: 360kg
Highlight:

drop hammer test equipment for plastic pipes

,

international compliant drop hammer tester

,

accurate impact testing equipment

Drop Hammer Test Equipment for Plastic Pipe Impact Testing
This drop hammer impact testing machine fully conforms to international specification criteria including ISO 3127, ASTM D2444 and equivalent test methodologies. It provides accurate impact toughness evaluation for plastic pipe materials with advanced safety features and precise measurement capabilities.
Application Areas
Extensively applied by plastic pipe research institutes, testing laboratories and production enterprises to evaluate impact toughness of pipe materials. This high-performance testing device perfectly fits application demands of building material sectors and scientific research establishments.
Key Features
  • Integrated safety protection mechanism adhering to 89/392/EEC safety standard
  • Industrial color human-machine interface with PLC distributed control structure
  • Impact height configurable from 200mm to 2000mm with 100% secondary shock absorption capture rate
  • Vacuum adsorption technology for efficient hammer release and capture with maximum speed of 2m/s
  • Automatic height calibration with accuracy within ±1mm deviation
  • Independent impact hammers for specific energy grades with convenient selection and extended service life
Technical Specifications
Model XJL-630S
Ambient Temperature 10℃-35℃
Drop Hammer Quality 0.5kg-16kg
Hammer Diameter D25mm, D90mm
Height of Fall 20mm-2000mm, error ≤ ±2mm
Lifting Speed 2m/s
Sample Diameter Φ16mm-Φ630mm (customizable)
Impact Center Deviation ≤2mm
V-type Support 120°
Power Source 220VAC ±10%
Dimensions 930mm × 700mm × 3740mm
Net Weight 360kg
Compliance Standards
ASTM D2444, ISO 4422, ISO 3127, BS EN 1411 and BS EN 744.
Support and Services
We provide comprehensive technical assistance and after-sales services including equipment setup, daily maintenance, fault elimination, instrument calibration, and personalized solution development. Our service team maintains 24/7 standby status to address all technical consultations and operational inquiries.
Packing and Shipping
Equipment is securely packaged in standard export wooden crates including main equipment body, operation manuals, and all auxiliary components. Complete shipping documentation provided with charges assessed based on destination and shipping method.
Frequently Asked Questions
What defines Drop Hammer Test Equipment?
Developed and produced by JHH based in Beijing, China, this is a professional testing apparatus dedicated to evaluating impact resistance performance of various test specimens.
What core function does this equipment serve?
Designed to quantify impact resistance properties of different products, serving as a key testing tool to verify and guarantee standardized product quality.
What testing specimens are compatible?
Applicable to tubular products including PVC-U water supply pipe, sewage pipe, low pressure water supply pipe, transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe, and hard plastic plates.
What level of precision does the equipment deliver?
Features high testing precision rating of 0.5%.
What is the peak testing capacity?
Maximum testing energy output of 300J.
