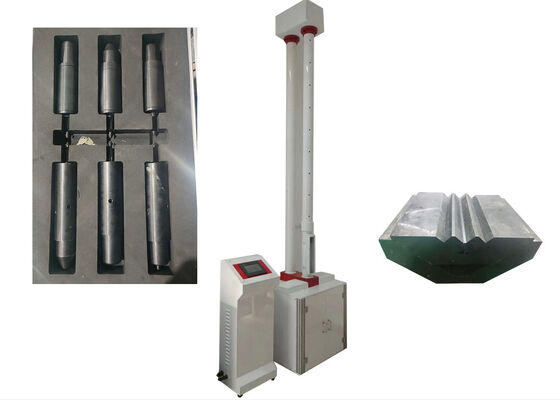

Drop Hammer Test Equipment for Conducting Impact Tests on Plastic Pipe Glass Pottery and Other Non Metal Materials with Mechanism

Drop Hammer Test Equipment for Conducting Impact Tests on Plastic Pipe Glass Pottery and Other Non Metal Materials with Mechanism
Drop Hammer Test Equipment for Conducting Impact Tests on Plastic Pipe Glass Pottery and Other Non Metal Materials with Mechanism
video play

Large Image :  Drop Hammer Test Equipment for Conducting Impact Tests on Plastic Pipe Glass Pottery and Other Non Metal Materials with Mechanism

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001, CE
Model Number: XJL-300D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Drop Hammer Test Equipment For Conducting Impact Tests On Plastic Pipe Glass Pottery And Other Non Metal Materials With Mechanism Travel Of Working Table: 8-450mm
Specimen Diameter: φ10~450mm Hammer Diameter: D25, D90, R5, R10, R30, R50 Can Optional
Hammer Weight: 0.5kg-6kg Height Of The Fall: 40mm-2000mm，error≤±2mm
Outline Dimension: 740mm×710mm×3650mm Net Weight: 310kg
Highlight:

Drop hammer test equipment for plastic pipe

,

Impact test equipment for non-metal materials

,

Drop hammer tester with impact mechanism

Drop Hammer Test Equipment for Impact Testing on Non-Metallic Materials
The Plastic Pipe Falling Dropping Hammer Impact Testing Machine is specifically designed for conducting impact tests on non-metallic materials including plastic, glass, and pottery. This premier testing apparatus evaluates anti-impact strength capacity and performs comparative quality assessments for materials of the same type or specifications.
Testing Methods Supported
Passing method and gradient method for diverse test requirements
Compliance Standards
ASTM D2444, ISO4422, ISO3127, BSEN1411 and BSEN744
Key Equipment Features
  • Three-Tier Safety Protection: Sample chamber door protection, observation window safety, and upper/lower limit safety setup
  • High-Speed Lifting: 250mm per second with high torque stepping motor, reaching 2-meter height in 8 seconds
  • Smart Stable Hovering: Multi-speed adjustment control for precise positioning without deviation
  • Optimized Air Duct Design: 3D modeled guide tube with exhaust holes to minimize wind resistance
  • Pneumatic Hammer System: 300N long-stroke double cylinders with ox tendon buffer plates for stable striking
  • Modular Assembly: Standard aluminum alloy profiles with 7-inch touch screen and Delta PLC
  • Premium Components: Adker cylinders, Delta PLC/touch screen, Mean Well power supply
  • Automated Operation: Automatic zero calibration, hammer lifting, releasing, and complete testing workflow
Technical Specifications
Parameter Specification
Model XJL-450M
Ambient Temperature 10℃-35℃
Drop Hammer Quality 0.5kg-6kg
Hammer Diameter D25mm, D90mm (customizable)
Height of Fall 40mm-2000mm, error ≤ ±2mm
Sample Diameter Φ8mm-Φ450mm (customizable)
Impact Center Deviation ≤2mm
V-Type Support 120°
Power Source 220VAC ±10%
Dimensions 740mm × 710mm × 3650mm
Net Weight 310kg
Standard Configuration
Component Quantity
Host One set
Electric Cabinet One set
Hammer Body One set
Power Line One piece
V-Type Supporting Two pieces
Operating Tools (Wrench) One set
Product Images
Drop Hammer Test Equipment for Conducting Impact Tests on Plastic Pipe Glass Pottery and Other Non Metal Materials with Mechanism 0 Drop Hammer Test Equipment for Conducting Impact Tests on Plastic Pipe Glass Pottery and Other Non Metal Materials with Mechanism 1 Drop Hammer Test Equipment for Conducting Impact Tests on Plastic Pipe Glass Pottery and Other Non Metal Materials with Mechanism 2
