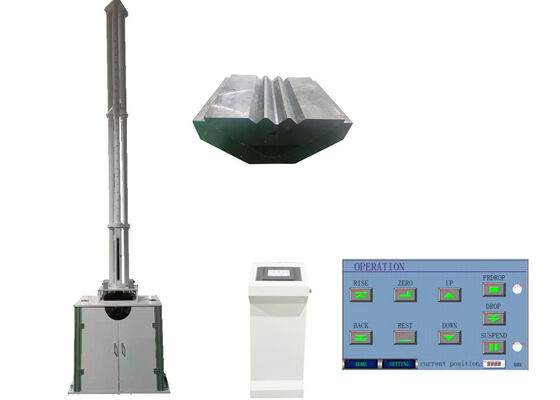

Drop Hammer Test Equipment suitable for evaluating material toughness and resistance under controlled impact conditions

Large Image : Drop Hammer Test Equipment suitable for evaluating material toughness and resistance under controlled impact conditions

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-1100D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Suitable For Evaluating Material Toughness And Resistance Under Controlled Impact Conditions	Hammer Diameter:	TUP A, TUP B, TUP C
Test Range:	0-400J	Drop Hammer Quality:	2.7kg, 5.4kg, 9.1kg, 13.6kg
V-type Supporting:	120°	Max. Height:	3000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	Drop Hammer Test Equipment for material toughness , Drop Hammer impact resistance tester , Drop Hammer Test Equipment with warranty

Drop Hammer Test Equipment

Professional testing equipment designed for evaluating material toughness and resistance under controlled impact conditions, suitable for various plastic pipes and fittings.

Applications

This tester is designed for assessing impact resistance and toughness properties of PVC-U pipe, PVC-C pipe, PP pipe, PE pipe, plastic pipe for underground communication, and their corresponding fittings. It serves as a premium testing apparatus for testing institutions, production enterprises, the building materials industry, and scientific research units.

Control System Features

PLC-based control system with touch screen interface
High automation level with digital presetting and real-time display
Pneumatic transmission system prevents secondary impact
100% secondary impact capture rate

Equipment Description

Autonomous control running system for convenient operation
Maximum accessible drop height: 3000mm
Complies with ASTM D2444 standard specifications
Automatic impact height identification with synchronous data display
Supports testing via passage method and gradient method
Ideal for building material sectors and academic research institutions

Compliance Standards

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411

Technical Parameters - Model XJL-1100

Parameter	Specification
Ambient temperature	10℃-35℃
Hammer sets (12 total)	Hammerhead A: 2.75kg, 5.4kg, 9.1kg, 13.6kg Hammerhead B: 2.7kg, 5.4kg, 9.1kg, 13.6kg Hammerhead C: 2.7kg, 5.4kg, 9.1kg, 13.6kg
Height of the fall	0mm-3000mm, error≤±2mm
Sample diameter	1100×1100mm
Impact center deviation	≤2mm from fixture center
V-type supporting	120°
Power source	220VAC±10%
Outline dimension	1100㎜×600㎜×5150㎜
Net weight	600kg

Support and Services

We provide comprehensive technical support and services tailored for our Drop Hammer Test Equipment. Our professional engineers offer specialized guidance covering equipment installation, routine maintenance, fault diagnosis, instrument calibration, and custom solutions to meet your specific testing requirements. Our service team is available 24/7 to address any inquiries or concerns.

Packing and Shipping

The equipment is securely packed in reinforced wooden crates designed for shipping protection. Each crate contains the Drop Hammer Test Equipment, detailed operation instructions, and all required accessories. Outer labeling includes equipment name, model number, and serial number for easy identification. We provide all necessary shipping documents including commercial invoices and packing lists. Shipping costs are calculated based on destination and method (air or sea).

Frequently Asked Questions

What is Drop Hammer Test Equipment?

Professional inspection equipment manufactured by JHH in Beijing, China, designed to evaluate the impact resistant performance of various test samples.

What is the core application goal?

This device evaluates the impact resistant properties of finished articles to maintain stable product quality standards.

What test subjects are compatible?

Applicable to PVC-U water supply pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe, and hard plastic plates.

What testing precision can be achieved?

Testing precision level reaches 0.5%.

What is the maximum testing energy?

The rated maximum testing energy is 300J.
