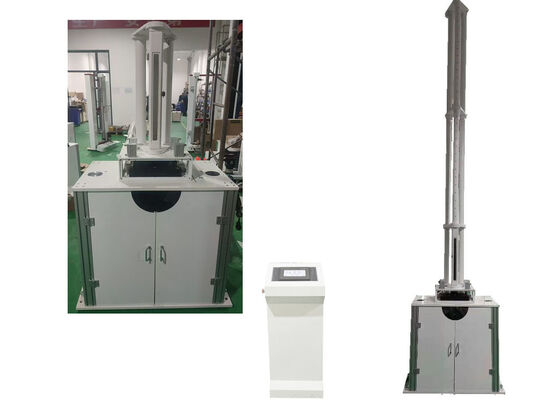

Robust Drop Hammer Test Equipment
Providing essential data for improving material formulations and structural designs through precise impact resistance testing.
Application Overview
The ASTM D24444 Lab Drop Weights Tester, equipped with Tup Nose A, Tup Nose B, and Tup Nose C, is dedicated to the determination of impact resistance for thermoplastic pipes and fittings under strictly specified impact conditions, utilizing a tup (falling weight) as the impact medium.
This tester is configured with three interchangeable striking noses, which are distinguished by their distinct geometrical configurations to accommodate different test requirements.
Product Features
- Automatic control mode for convenient operation and easy regulation
- Maximum drop height of 3000mm, fully compliant with ASTM D2444 standard
- Secondary impact prevention function for enhanced safety
- Real-time drop height detection and display
- Compatible with both passage method and gradient method testing
- Ideal for building materials industry and scientific research institutions
Compliance Standards
ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and more.
Technical Specifications
| Parameter |
XJL-630M Specifications |
| Ambient temperature |
10℃-35℃ |
| Hammer (12 sets total) |
Hammerhead A: 2.75kg, 5.4kg, 9.1kg, 13.6kg
Hammerhead B: 2.7kg, 5.4kg, 9.1kg, 13.6kg
Hammerhead C: 2.7kg, 5.4kg, 9.1kg, 13.6kg
|
| Height of the fall |
0mm-3000mm, error ≤ ±2mm |
| Diameter of the sample |
630×630mm |
| Deviation of impact center |
≤2mm from fixture center |
| Supporting |
V-block and flat-plate |
| Power source |
220VAC ±10% |
| Outline dimension |
800mm × 600mm × 5150mm |
| Net weight |
500kg |
Technical Support & Services
We deliver comprehensive technical backup and after-sales servicing tailored exclusively for Drop Hammer Test Equipment. Our professional engineering staff provides specialized guidance covering installation, daily upkeep, fault diagnosis, instrument calibration, and personalized custom solutions to match your unique application demands.
Our service team maintains round-the-clock availability to address all inquiries and operational concerns promptly.
Packaging & Shipping
Drop Hammer Test Equipment is firmly encased in solid wooden crates for delivery. Each package includes the main device, operating manuals, spare components, and matching accessories. Outer crates are clearly marked with equipment designation, model specification, and serial number information.
Complete documentation including commercial invoices, packing manifests, and all required credentials for cross-border delivery is provided. Freight expenses are calculated based on destination and chosen transportation mode.
Frequently Asked Questions
How is Drop Hammer Test Equipment defined?
Drop Hammer Test Equipment is a professional testing apparatus fabricated by JHH in Beijing, China, designed for evaluating the impact resistance performance of test samples.
What functional role does Drop Hammer Test Equipment fulfill?
Drop Hammer Test Equipment is used to evaluate the impact resistance of test articles, enabling effective product quality verification and assurance.
What testable products are applicable to Drop Hammer Test Equipment?
Applicable to various pipe categories including PVC-U water supply pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe, and hard plastic plate materials.
What measurement precision level does Drop Hammer Test Equipment possess?
Drop Hammer Test Equipment delivers measurement precision up to 0.5%.
What is the peak testing capacity of Drop Hammer Test Equipment?
Drop Hammer Test Equipment features a maximum testing energy rating of 300J.
