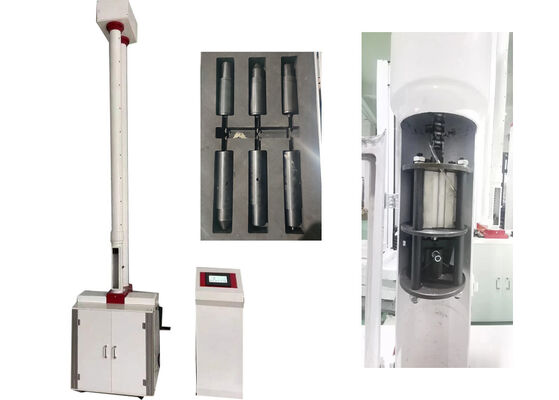

Drop Hammer Test Equipment
Engineered to deliver accurate impact measurements for research and industrial testing needs, this premium testing solution serves the construction materials sector and academic research institutions.
Applications
Extensively adopted by plastic pipe research, inspection and manufacturing establishments to assess impact resistance and toughness properties of various materials.
Testing Principle
Test pieces are exposed to impacts from a falling striker with predetermined mass and shape, released from a preset height onto specified positions of the test specimen. Test severity can be regulated by adjusting striker mass and/or drop height.
Key Features
- Conforms to ISO3127 and equivalent testing standards
- Straightforward operation with high safety performance
- Secondary impact protection function
- Autonomous impact height calculation with real-time data display
- Compatible with passage method and gradient method testing
- Robust performance with premium build quality
Technical Specifications
| Parameter |
Specification |
| Model |
XJL-300D |
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5kg-16kg |
| Hammer Diameter |

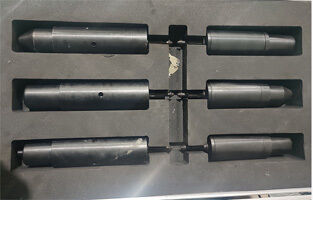

D25mm, D90mm, etc. |
| Height of Fall |
10mm-2000mm, error ≤ ±2mm |
| Sample Diameter |
Φ16mm-Φ630mm |
| Impact Center Deviation |
≤2mm |
| V-type Supporting |
120° |
| Power Source |
220VAC ±10% |
| Outline Dimension |
715mm × 700mm × 3900mm |
| Net Weight |
380kg |
Compliance Standards
ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and equivalent standards.
Support and Services
Our professional engineering team provides comprehensive technical assistance including equipment installation, routine maintenance, fault diagnosis, and instrument calibration. We offer tailored solutions for unique application requirements with round-the-clock support availability.
Packing and Shipping
Equipment is securely encased in wooden crates containing the main device, operational guidelines, and all auxiliary components. Complete documentation including commercial invoice and packing list is provided for international logistics.
Frequently Asked Questions
What is Drop Hammer Test Equipment?
Professional testing device developed by JHH, manufactured in Beijing, China, designed to evaluate impact resistance performance of various test specimens.
What is the core function of this equipment?
Engineered to assess impact resistance performance of test articles, serving as a crucial means to verify and control overall product quality standards.
What applications and product types match this equipment?
Applicable to PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, core layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.
What level of precision does this equipment achieve?
Features measurement precision reaching 0.5% with maximum testing energy capacity of 300J.
