HDT VICAT Testing Machine
Professional thermal property testing equipment for plastics, rubber, nylon, and insulating materials with consistent, reliable performance.
Product Overview

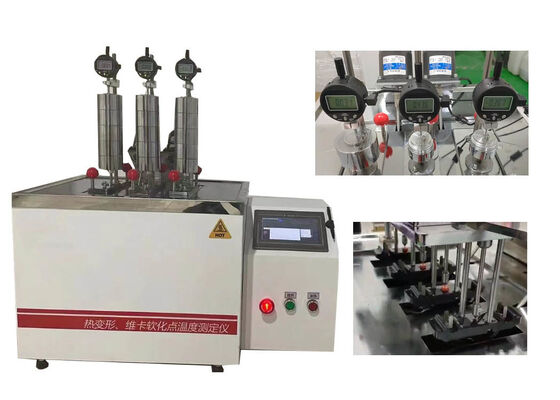

The Vicat Softening Point Heat Distortion Testing Machine and Automatic Needle Vicats Apparatus are precision instruments designed for thermal property testing of non-metallic materials including plastics, rubber, nylon, and similar raw materials.
Featuring automated test frame lifting and lowering functions, this device specializes in measuring thermal deformation temperature and Vicat softening point temperature for electrical insulating materials with exceptional accuracy.
Compliance Standards
Our testing equipment fully complies with authoritative domestic and international standards including:
- GB/T 1633, GB/T 1634
- ISO75, ISO306, ISO 2507
- ASTM D648, ASTM D1525
These standards ensure comprehensive coverage of thermal deformation temperature and Vicat softening point testing requirements for non-metallic materials.
Technical Specifications
| Parameter |
Specification |
| Model |
XRW-300D |
| Testing Stations |
6 stations (simultaneous testing capability) |
| Cooling System |
Air above 150°C, water or natural cooling below 150°C |
| Deformation Measurement |
High precision digital display dial gauge |
| Heating Rate |
50°C/h, 120°C/h |
| Temperature Deviation |
±0.5°C maximum |
| Deformation Deviation |
0.01mm |
| Vicat Load |
10N ± 0.2N, 50N ± 1N |
| Fiber Stress |
0.455 MPa and 1.82 MPa |
| Temperature Control Range |
Room temperature ~ 300°C |
| Deformation Measuring Range |
0 ~ 10mm |
| Sample Frame Number |
3~6 |
| Test Span |
60~120mm |
| Heating Power |
6KW |
| Power Supply |
220V 50Hz |
| Display |
Color touch screen |
| Control System |
PLC control system |
Standard Configuration
- Main frame - 1 set
- Electric cabinet - 1 set
- Specimen holder - 3 sets
- Vicat indenter - 3 sets
- Heat deflection indenter - 3 sets
- Displacement sensor - 3 sets
- Power line - 2 sets
- Connecting line - 2 sets
- Operation manual - 1 set
- Certificate - 1 set
- Packing list - 1 set
Packaging & Shipping
The HDT VICAT Testing Machine features export-standard reinforced wooden case packaging designed for maximum protection during domestic and international transportation.
Multi-layer protective measures include high-density foam and shockproof air cushion film enclosure, waterproof plastic film sealing for moisture isolation, and clear standardized labeling with handling warnings and consignee information.
Shipping is arranged through qualified international logistics suppliers with full-process tracking and real-time status feedback for complete delivery visibility.
Frequently Asked Questions
Q1: What is the HDT VICAT Testing Machine and its product origins?
A1: The HDT VICAT Testing Machine (Model XRW-300) is a specialized thermal performance testing device developed by JHH, a recognized brand in material testing equipment. Manufactured in Beijing, China, this instrument determines Vicat softening temperature of thermosetting plastics for quality inspection and R&D applications.
Q2: What are the core competitive advantages?
A2: This instrument offers high test precision with excellent result repeatability, easy-to-operate structure with intuitive interface, and low maintenance requirements that reduce operational downtime and long-term costs.
Q3: Which materials are compatible for testing?
A3: Suitable for thermosetting plastics including polyester, epoxy, unsaturated polyester, phenolic, and polyurethane materials, as well as other relevant thermosetting polymer materials used in industrial production and scientific research.
