XJL-300A Drop Hammer Test Equipment
High-precision impact testing equipment designed for evaluating the impact resistance of metals, polymers, and composite materials across various industrial applications.
Applications & Features
The JINHAIHU XJL-300A Falling Weight Test Equipment is engineered for precise assessment of plastic pipeline impact toughness. This high-stability inspection unit complies with ISO 3127 and equivalent international standards, making it ideal for research institutions, verification laboratories, and manufacturing facilities.
- Built-in secondary impact suppression design
- Autonomous calibration of impact height with real-time data visualization
- Supports both passage method and gradient method testing
- Streamlined operation with stable performance and comprehensive safety
- Advanced PLC centralized control architecture
- Automatic hammer positioning and lifting functions
Technical Specifications
| Parameter |
Specification |
| Model |
XJL-300A |
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5kg-16kg |
| Hammer Diameter |
D25mm, D90mm, etc. |
| Height of the Fall |
10mm-2000mm, error≤±2mm |
| Sample Diameter |
Φ16mm-Φ630mm |
| Impact Center Deviation |
≤2mm |
| V-type Supporting |
120° |
| Power Source |
220VAC±10% |
| Outline Dimension |
715mm×700mm×3900mm |
| Net Weight |
380kg |
Compliance Standards
ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and equivalent international standards.
Technical Support & Services
We provide comprehensive technical support and after-sales services including equipment installation, routine maintenance, fault diagnosis, precision calibration, and custom technical solutions. Our professional engineering team offers 24/7 responsive support to ensure optimal equipment performance.
Packaging & Shipping
Each Drop Hammer Test Equipment is securely packaged in sturdy wooden crates designed for long-distance shipping protection. Packages include the test equipment, detailed operation instructions, all necessary accessories, and are clearly marked with equipment identification for easy traceability.
Frequently Asked Questions
What is the Drop Hammer Test Equipment?
Professional testing instrument manufactured by JHH in Beijing, China, designed specifically for assessing impact resistance performance of target objects.
What is the core purpose of this equipment?
Primary function is to evaluate object impact resistance, ensuring product stability and qualification standards.
Which products are applicable for testing?
Suitable for various pipes including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, transmission pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and hard plastic plates.
What is the measurement accuracy?
High measurement accuracy of up to 0.5%, ensuring reliable and authentic test data.
What is the maximum testing energy?
Maximum testing energy reaches 300J, meeting impact resistance testing needs for various products.

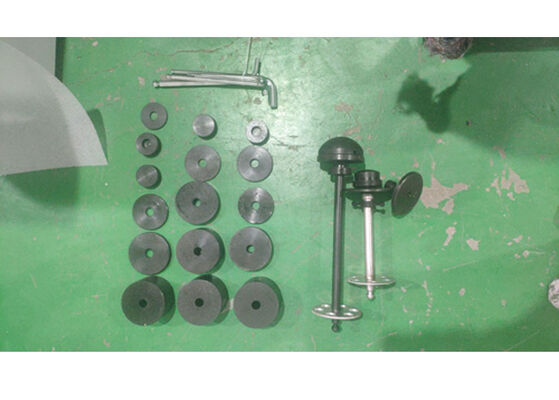

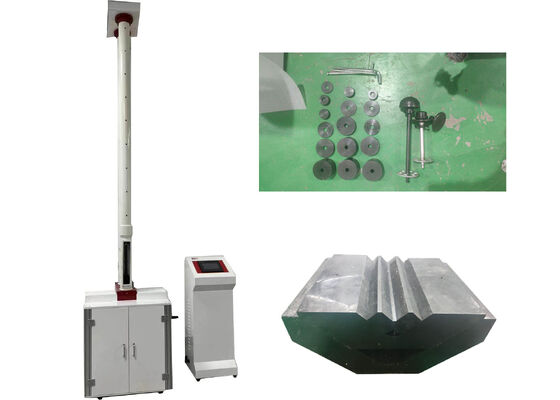

Product Images
