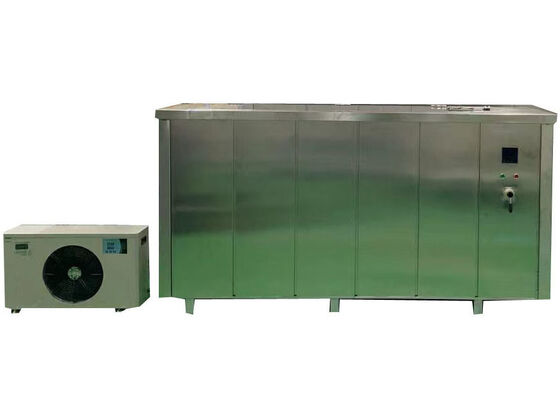

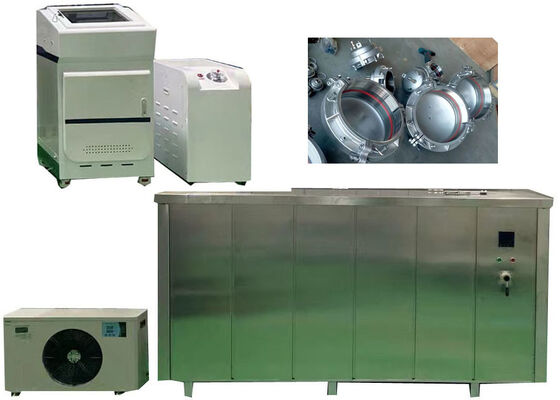

Hydrostatic Pressure Testing Machine Providing Comprehensive Testing Capabilities for Industrial Fluid Transport Systems
Applications:
The Hydrostatic Pressure Testing Machine is fitted with compatible end caps that cover a diameter range of Φ10-1600mm, while supporting a test pressure scope of 0.1-16MPa. Its operating temperature range for testing spans 15~95℃, which ensures stable testing performance under various actual operating conditions and fully meets the testing requirements of different application scenarios. Additionally, this equipment has obtained authoritative CE and ISO certifications, as well as other relevant industry certifications, effectively upholding its quality reliability and operational safety.
When operating the Hydrostatic Pressure Testing Machine, comprehensive safety protection considerations must be prioritized. To ensure safe and risk-free operation, the equipment is incorporated with built-in overpressure and over-temperature protection mechanisms, which can timely trigger protective measures to avoid potential operational hazards.
Product Description:
This testing apparatus boasts a test pressure scope of 0.1-16MPa, which enables broad applicability across diverse testing scenarios and meets the pressure testing demands of various specifications. It incorporates integrated safety protection mechanisms, including overpressure and overtemperature safeguards, to ensure the personal safety of operators and avoid damage to test samples during the testing process.
The Hydrostatic Pressure Testing Machine is engineered to deliver reliable and precise test results, with a test accuracy range of -1% to +2%. Test curves can be presented in both pressure-time and pressure-temperature formats, facilitating in-depth and comprehensive analysis of the sample’s mechanical performance and pressure-bearing characteristics.
In summary, the 16MPA Pvc Plastic Pipe Hydrostatic Pressure Testing Machine Astm D1598 holds significant practical value for quality control and assurance in the production, inspection, and application of thermoplastics pipes and fittings. Its high-precision testing capability and comprehensive safety configurations make it an indispensable piece of equipment for enterprises and institutions engaged in the production, detection, or application of such materials.
Features:
1.Engineered specifically for conducting hydrostatic pressure and bursting tests on PVC, PE, PPR, PB, and PERT pipes, this testing equipment delivers precise and reliable performance for pipe quality inspection.
2.It is compatible with end caps covering a diameter range of Φ10-1600mm, enabling stable and secure testing of pipes with corresponding specifications.
3.Its test pressure scope spans 0.2-16MPA, which fully caters to the pressure testing demands of various standard and non-standard pipes in industrial production.
4.The equipment features a high-visibility LCD display, designed for clear, quick, and error-free reading of real-time test parameters during operation.
5.Water is adopted as the exclusive test medium for this apparatus, ensuring environmentally friendly, non-corrosive, and non-damaging testing of pipe samples while maintaining test accuracy.
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters:
| Model |
XGY-16C |
| Diameter range |
Φ10-1600mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-16MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| end caps models |
from Φ16 to 630mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
Support and Services:
1.We offer full-spectrum technical assistance dedicated to Hydrostatic Pressure Testing Machine units. Our skilled and well-versed technical team is capable of delivering a complete set of supportive solutions, including the following professional items:
2.Complete equipment installation and on-site commissioning
3.Operational fault diagnosis and customized technical consultation
4.Regular upkeep as well as malfunction remediation services
5.Genuine replacement components and daily consumable supplies
6.System software optimization and functional iteration upgrades
7.We adhere to customer-oriented service principles and strive to deliver high-standard after-sales support. Our staff remains accessible to resolve all technical and operational inquiries from users. For any relevant consultation or practical concerns, clients may reach out to our team at their convenience.
FAQ:
Q1: What brand corresponds to your Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A1: The brand of the Hydrostatic Pressure Testing Machine is JHH, which is officially produced at our professional manufacturing base located in Beijing, China.
Q2: What is the specific purpose of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A2: The Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine) is specifically designed as a professional testing equipment to detect the hydrostatic pressure resistance and bursting strength of plastic pipes, ensuring the qualification of pipe products.
Q3: Which types of components and materials are applicable for testing with the Hydrostatic Pressure Testing Machine?
A3: The Hydrostatic Pressure Testing Machine is applicable for testing plastic pipes and composite pipes of various specifications, including common types such as PP-R, PP-B, PP-A, PVC, PE, and PE-X.
Q4: What level of accuracy does the Hydrostatic Pressure Testing Machine possess?
A4: The Hydrostatic Pressure Testing Machine features high-precision testing performance, with an accuracy that is controlled within 0.1% of the full-scale reading, ensuring the reliability of test data.
Q5: What is the maximum pressure-bearing capacity that the Hydrostatic Pressure Testing Machine can test?
A5: The Hydrostatic Pressure Testing Machine supports a maximum test pressure of 10MPa, which is equivalent to 100 bar (1450 psi), fully meeting the high-pressure testing needs of plastic pipes.
