Hydrostatic Pressure Testing Machine
Ideal for control and maintenance testing of pressure systems across various industries including construction, municipal water supply, gas transmission, and chemical engineering.
Applications

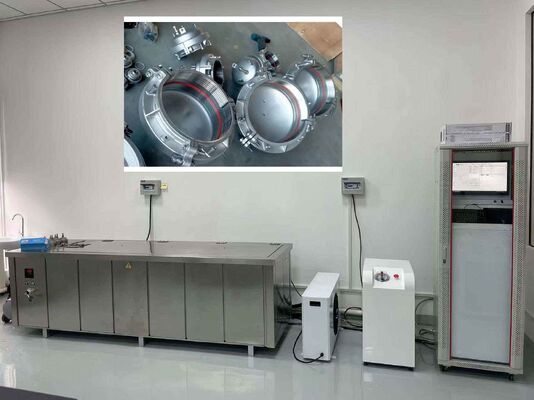

This fully automated hydrostatic pressure test equipment for thermoplastic tubes evaluates pressure resistance performance of pipes, fittings, and valves. It serves as an ideal testing solution for manufacturers, suppliers, and end-users requiring precise and dependable test results.
Product Overview

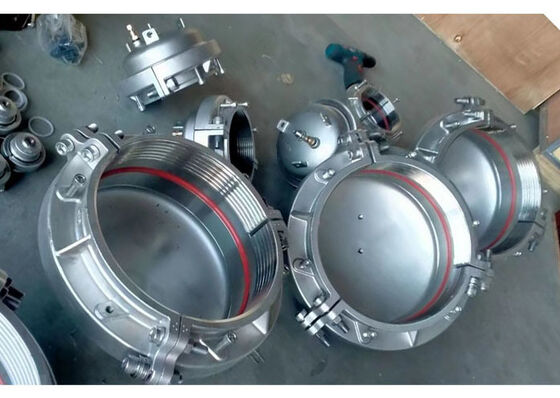

The XGY-20C model features dedicated end caps accommodating pipe diameters from Φ8 mm to 1800 mm. Compliant with international standards including ISO1167, ISO9080, EN921, ASTM D1598, ASTM D1599, ISO13479, GB/T 6111 and GB/T 15560, ensuring stable performance and high measuring accuracy.
This versatile testing machine integrates advanced functions such as automatic pressure control, water filling, and pressure relief protection, simplifying operation while ensuring operator safety.
Key Features
- Product Name: Hydrostatic Pressure & Bursting Testing Machine
- Measurement Accuracy: -1% ~ +2% (of full scale)
- Data Storage Method: PC-based data storage
- Model Number: XGY-10C
- Test Timer: Adjustable timer with range of 0 ~ 10000 hours
- Certifications: CE and ISO certified
Compliance Standards
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335
Technical Parameters
| Parameter |
Specification |
| Model |
XGY-10C |
| Diameter Range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable) |
| Control Mode |
Micro-control, industrial PC control |
| Display Mode |
Industrial PC LCD color display |
| Storage Mode |
PC storage |
| Print Mode |
Color printer output |
| Test Pressure Range |
0.1-10MPa |
| Control Accuracy |
±1% |
| Display Resolution |
0.01MPa |
| Working Range |
5%~100%FS |
| Indication Error |
±1% |
| Timer Range |
0~10000h |
| Timer Accuracy |
±0.1% |
| Timer Resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| End Caps Models |
from Φ16 to 630mm |
| Water Tank Size |
According to pipe size |
| Temperature Range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm) or others |
Support and Services
We provide comprehensive technical support and after-sales services including:
- Professional on-site installation and setup guidance
- Timely troubleshooting and technical consultation
- Efficient repair and regular maintenance services
- Supply of genuine spare parts and consumables
- Software updates and system upgrades
Frequently Asked Questions
What brand does the Hydrostatic Testing Machine belong to?
The Hydrostatic Pressure Testing Machine is a professional product of the JHH brand, manufactured in Beijing, China.
What is the core function of the Hydrostatic Testing Machine?
Specifically designed to test hydrostatic pressure resistance and bursting strength of plastic pipes.
What materials can be tested by the Hydrostatic Pressure Testing Machine?
Applicable for testing plastic and composite pipes including PP-R, PP-B, PP-A, PVC, PE, PE-X, and other polymer-based materials.
What is the measurement accuracy?
Features measurement accuracy within 0.1% of full-scale reading, ensuring reliable and precise test data.
What is the maximum test pressure?
Capable of conducting pressure tests up to 10MPa (100 bar / 1450 psi).
Manufactured in Beijing, China, this product is certified in accordance with the ISO9001 quality management system standard.
