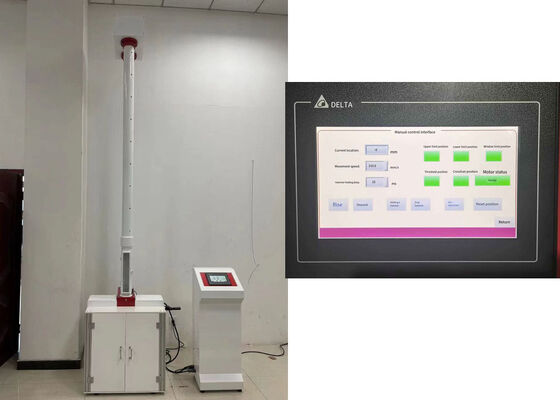

Drop Hammer Test Equipment
High-precision drop hammer impact testing equipment providing exceptional accuracy and repeatability for material development and quality control applications.
Applications
The Drop Hammer Impact Test Machine complies with ISO 3127 and equivalent international standards. It is extensively used in plastic pipe research institutions, testing laboratories, and manufacturing facilities for precise determination of impact resistance and toughness of plastic pipes.
As an optimal testing instrument for building materials and scientific research, this equipment features secondary impact prevention, automatic height detection with real-time display, and compatibility with both pass/fail and gradient test methods.
Testing Principle
Test specimens receive impact loading from a falling striker of defined mass and geometry, released from calibrated height onto designated positions along the sample's circumferential surface.
Test severity can be adjusted by modifying striker mass and/or drop height. The maximum allowable limit for TIR is specified as 10%.
Product Features
- Dedicated PLC control system for preset impact height configuration
- Anti-secondary impact mechanism for enhanced safety
- Automatic hammer elevation to preset target height

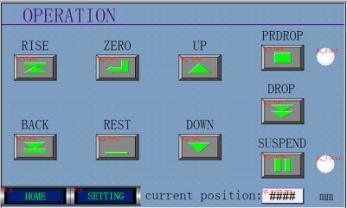

- Real-time hammer height display throughout testing process
- Exceptional reliability and testing precision
- Full compliance with GB6112-85 national standard specifications
Technical Specifications
| Parameter |
Specification |
| Model |
XJL-300D |
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5kg-16kg |
| Hammer Diameter |
D25mm, D90mm, etc. |
| Height of Fall |
10mm-2000mm, error ≤ ±2mm |
| Sample Diameter |
Φ16mm-Φ630mm |
| Impact Center Deviation |
≤2mm |
| V-type Support |
120° |
| Power Source |
220VAC ±10% |
| Outline Dimension |
715mm × 700mm × 3900mm |
| Net Weight |
380kg |
Support and Services
We provide comprehensive technical support and after-sales services including equipment installation, routine maintenance, fault troubleshooting, precision calibration, and customized testing solutions. Our professional engineering team offers 24/7 support to address all operational inquiries and technical issues.
Packing and Shipping
Equipment is securely packed in export-grade wooden crates containing the main testing unit, operation manuals, spare parts, and accessories. Complete documentation including commercial invoice and packing list is provided for international logistics. Freight costs are calculated based on destination and shipping method.
Frequently Asked Questions
What is Drop Hammer Test Equipment?
Drop Hammer Test Equipment is a precision testing instrument manufactured by JHH in Beijing, China, used to evaluate the impact resistance of test specimens.
What is the core function of Drop Hammer Test Equipment?
This equipment tests product impact resistance to effectively ensure and control product quality.
What types of products can be tested?
Suitable for various pipes including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure fluid transmission pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic plates.
What is the measurement accuracy?
The equipment features testing accuracy of up to 0.5%.
What is the maximum test energy?
Maximum testing energy available is 300J.
