Hydrostatic Pressure Testing Machine
Advanced pressure regulation and safety features for industrial pressure testing applications
Applications
This hydrostatic pressure testing apparatus complies with multiple industrial standards including ISO 1167, ISO 9080, EN 921, ASTM D1598, ASTM D1599, ISO 13479, GB/T 6111 and GB/T 15560. This comprehensive standard compliance enables the instrument to meet testing specifications across various industries and adapt to diverse testing scenarios.
Product Overview

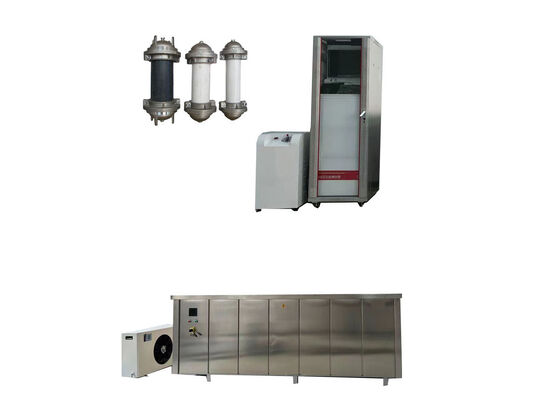

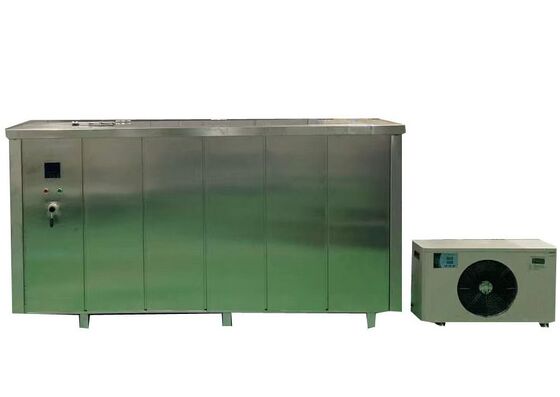

The XGY-20C model features end sealing caps that support pipe specimens with diameters ranging from Φ8 mm to 1800 mm. Designed as a multifunctional and operator-friendly testing system, this hydrostatic pressure tester can execute diverse pressure testing procedures with integrated intelligent features including automatic pressure regulation, automatic water replenishment, and pressure relief safety protection.
Product Name: Hydrostatic Pressure & Bursting Testing Machine
Test Temperature Range: 10℃ - 95℃
Pressure Testing Range: 0-200 bar / 0-20 MPa
Customization Support: OEM service available
Sealing End Caps: Suitable for Φ8 mm to Φ1800 mm pipes
Testing Accuracy: -1% ~ +2%
Compliant Standards: ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335
Technical Parameters
| Parameter |
Specification |
| Model |
XGY-20C |
| Diameter Range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable) |
| Control Mode |
Micro-control, industrial PC control |
| Display Mode |
Industrial PC LCD color display |
| Test Pressure Range |
0.1-20MPa |
| Control Accuracy |
±1% |
| Timer Range |
0~10000h |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| Temperature Range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm) or custom |
Support and Services
- On-site equipment installation and commissioning
- Fault troubleshooting and professional technical consultancy
- Equipment repair and routine maintenance services
- Supply of original spare parts and standard consumables
- Software version updates and functional upgrades
Frequently Asked Questions
What is the brand of the Plastic Pipe Hydrostatic Pressure Testing Machine?
The Plastic Pipe Hydrostatic Pressure Testing Machine is branded JHH and is produced in Beijing, China.
What is the intended function of the Plastic Pipe Hydrostatic Pressure Testing Machine?
This testing machine is specially used to determine the hydrostatic pressure resistance and bursting strength of plastic pipes.
What types of components and materials can be tested on this Hydrostatic Pressure Testing Machine?
It is suitable for testing plastic pipes and composite pipes, such as PP-R, PP-B, PP-A, PVC, PE, PE-X and other similar pipe materials.
What is the measurement accuracy of the Hydrostatic Pressure Testing Machine?
This machine features a measurement accuracy within 0.1% of the full-scale reading.
What is the maximum test pressure of the Hydrostatic Pressure Testing Machine?
The equipment can perform pressure tests up to 10 MPa, equivalent to 100 bar (1450 psi).
