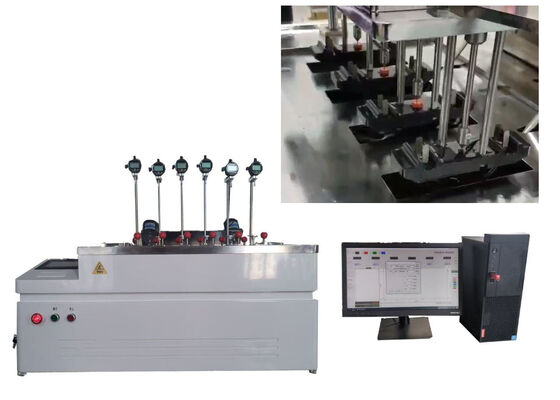

HDT VICAT Testing Machine for Plastic Heat Deflection and Vicat Softening Point Testing
The ASTM D648 HDT Automatic Deflection Temperature Tester for Plastics Under Flexural Load is engineered to determine the heat deflection temperature of thermoplastic materials and other comparable polymeric substances.
This instrument is extensively applied in plastic raw material manufacturing, finished product inspection, scientific research laboratories, and educational institutions.
Key Features
- Compact structural layout with aesthetic design and consistent performance stability
- Equipped with lampblack and odorous emission elimination functions
- Efficient cooling capabilities
- Advanced multi-point MCU control system for automatic temperature regulation
- Automatic deformation measurement and real-time calculation of test results
- Internal storage for up to 10 groups of experimental data
- Available in automatic and microcomputer-controlled versions
- Bilingual Chinese-English interface support
- PC connectivity with Windows-based test software
Applications
Heat deflection temperature serves as a key parameter for characterizing the thermomechanical deformation behavior of materials under actual applied loads, and constitutes a critical indicator for assessing the structural stability and dimensional integrity of materials in high-temperature service environments.
Test Method

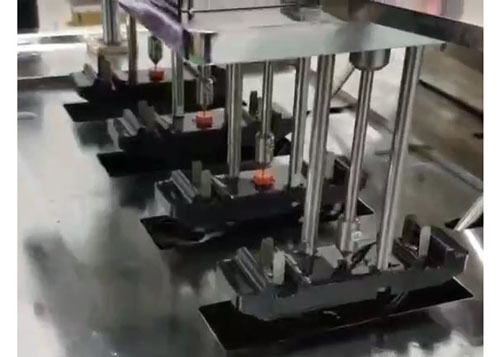

The test procedure for heat deflection temperature typically involves placing the test specimen on a support with a specified span, applying a predefined load to the specimen, and then placing the entire assembly in a temperature-controlled environment with a gradual heating rate. When the deformation of the specimen reaches the pre-specified limit value, the temperature recorded at that exact moment is defined as the heat deflection temperature of the material.
Instrument Characteristics
- Intelligent PID regulation technology with precise heating rate control
- High-accuracy temperature stabilization and consistent temperature distribution
- Capable of thermal deformation tests on wide range of standard test specimens
- Applicable for Vicat softening point testing
- Simultaneous execution of thermal deformation and Vicat softening point tests
- User-friendly computer operation interface with automatic test load calculation
- Two optional heating rates with one-click switching
- Automatic shutdown upon test completion or temperature limit exceedance
- Dual over-temperature protection: software-based and external mechanical
- Diversified report configuration options with complete printing function
- Capable of comparative tests on multiple samples simultaneously
Test Standards
GB/T1633, GB/T1634, GB/T8802, ISO75-2013, ASTM D648, ASTM D1525, DIN EN727
Technical Parameters
| Parameter |
Specification |
| Model |
XRW-300BT-Ⅵ |
| Temperature control range |
Room temperature ~300℃ |
| Maximum temperature error |
±0.5℃ |
| Heating rate |
50℃/h, 120℃/h, or set between 50-120℃/h |
| Temperature measurement point |
1 |
| Test frame number |
6 |
| Range of deformation measurement |
-0.1~5mm |
| Maximum deformation error |
±0.005mm |
| Deformation resolution |
0.001mm |
| Sample supports span |
64mm, 100mm |
| Load bar and press (needle) weight |
74g |
| Voltage and power |
220V, 6KW |
| Thermal expansion coefficient of sample itself |
<0.005/100℃ |
| Working medium |
Methylsilicone oil or transformer oil |
| Cooling-down method |
Natural cooling above 150℃, water cooling below 150℃ or natural cooling |
Support and Services
Our comprehensive technical support and after-sales services cover:
- Professional on-site installation and commissioning assistance
- Customized training sessions for operators
- Regular calibration services by professional technicians
- Timely repair and preventive maintenance services
- 24/7 technical support via phone or email
Frequently Asked Questions
What brand is associated with the VICAT Testing Machine?
The VICAT Testing Machine is branded under JINHAIHU.
What is the specific model designation for the VICAT Testing Machine?
The model number assigned to the VICAT Testing Machine is XRW-300F.
What quality certification has the VICAT Testing Machine obtained?
The VICAT Testing Machine holds the ISO9001 quality management system certification.
Where is the VICAT Testing Machine produced?
The VICAT Testing Machine is manufactured in Beijing, China.
What is the minimum order quantity (MOQ) for the VICAT Testing Machine?
The minimum order quantity required for the VICAT Testing Machine is 1 set.
