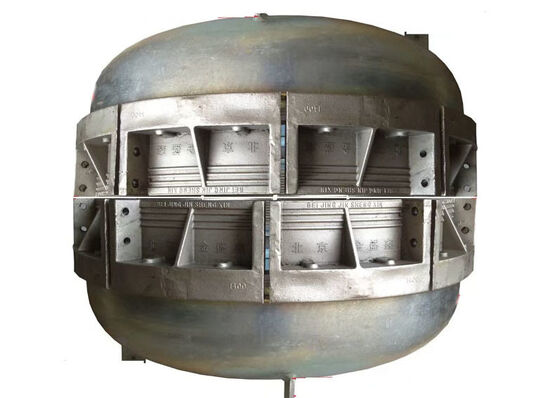

DN 1400mm Plastic Pipe End Caps with A-Type Structure Fixture for Maximum Durability and Ultra High Pressure Resistance

Large Image : DN 1400mm Plastic Pipe End Caps with A-Type Structure Fixture for Maximum Durability and Ultra High Pressure Resistance

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001
Model Number:	DN 1400

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	5~15 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	DN 1400mm Plastic Pipe End Caps With A-Type Structure Fixture For Maximum Durability And Ultra High Pressure Resistance	Standards:	GB/T 6111, EN921, ISO1167, ASTM D 1598/1599
Exterior Size(mm*mm):	φ1600*750mm	Material:	304# Stainless Steel Or Carbon Steel
Model:	DN 1400mm	Working Principle:	Sealing The Testing Pipes With High Temperature Resistant Silicone Seal Rings Embedded In The Stainless Steel Or Carbon Steel Closures Seal Groove, The Closures Metal Rings Press The Silicone Seal Rings.
Color:	Silvery White	Product Category:	Plastic Pipe End Caps
Highlight:	1400mm plastic pipe end caps , A-type structure pipe end caps , high pressure resistant pipe caps

DN 1400mm Plastic Pipe End Caps with A-Type Structure Fixture

DN 1400mm Plastic Pipe End Caps with A-Type Structural Fixture are engineered for maximum durability and ultra-high pressure resistance. These end caps are specifically designed for internal static pressure testing of pipes and pipe fittings, providing reliable sealing to build internal pressure during testing procedures.

Key Features

Integrally cast A-type structural fixture without intermediate tie rods for superior ultra-high pressure resistance
Clamp-first, seal-later assembly process ensures 100% success rate of one-step clamping and sealing
Radial sealing mode compatible with diverse piping materials including PE, PVC, PP-R, and steel-lined composite pipes
Split clamping structure supports quick installation and automatic centering during assembly
Suitable for wide scope of large pipe diameters without pre-test reshaping requirements
Dedicated lifting chain device prevents thin-walled pipe specimen crushing and facilitates easy suspension
Permanent engraved markings clearly display corresponding model information
Fixture Type: Radial Outward Seal Fixture

Technical Specifications

Parameter	Value
Model	DN 1400
Maximum Diameter (mm)	φ1600
Height of One End (mm)	700
Weight of One End (KG)	600
O-ring Size (mm)	φ1395*25
Maximum Pressure (Mpa)	1.2
Nominal Value (Mpa)	1.0

Compliance Standards

ASTM D1598-2004, ASTMD1599, GB/T6111-2018, GB/T15560-1995, GB/T18252-2008, GB/T18476-2001, and related standards

Technical Support & Services

Our professional technical support team provides comprehensive assistance for installation, operation, and troubleshooting of Plastic Pipe End Caps. We offer detailed product specifications, targeted solutions, and standardized best practices to ensure optimal performance and extended service life.

Additional value-added services include custom dimension processing, personalized marking, OEM production, and private label branding. We collaborate closely with clients to develop bespoke solutions tailored to specific operational needs and testing requirements.

Packaging & Shipping

Packaging: Supplied in sets of two pieces, securely encased in heavy-duty wooden crates. Each end cap is individually wrapped with specialized protective material to prevent surface damage during transit.

Shipping: Standard delivery within 5-15 business days. Expedited shipping options available for urgent orders with applicable additional charges.

Frequently Asked Questions

Q: What brand is this testing instrument produced under?

A: This testing instrument is branded as JINHAIHU.

Q: What model specification does this equipment adopt?

A: The model specification of this equipment is XGY.

Q: Is this product equipped with relevant quality certifications?

A: Yes, this product is certified in accordance with ISO9001 standards.

Q: What is the minimum order requirement for this product?

A: We accept a minimum order quantity of 1 set for this product.

Q: What payment options are provided for this testing instrument?

A: Payment terms include T/T, L/C, Western Union, MoneyGram, D/P and D/A.

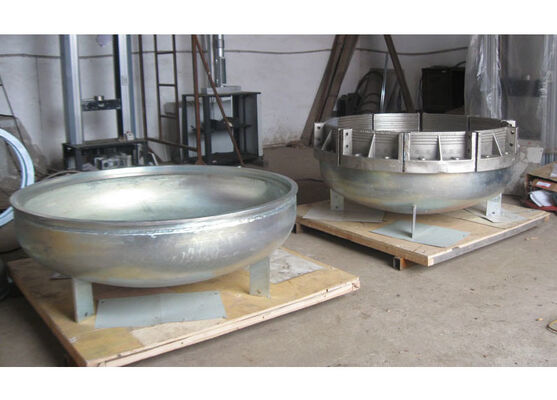

Product Images
