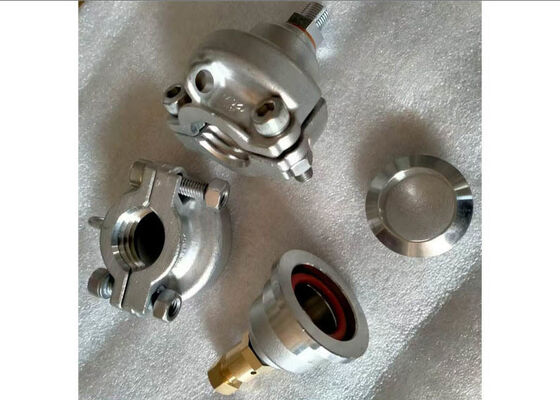

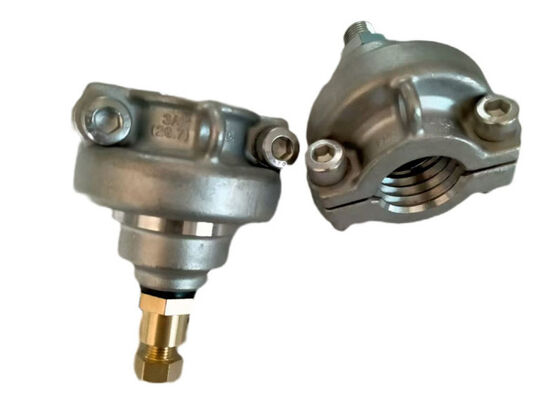

Plastic Pipe End Caps 3 quarter inch 26 point 7 millimeter for PE and PVC Tubes with Precision Casting and Sealing Performance

Large Image : Plastic Pipe End Caps 3 quarter inch 26 point 7 millimeter for PE and PVC Tubes with Precision Casting and Sealing Performance

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001
Model Number:	3/4"

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	5~10 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability:	200 sets per month

Contact Now

Detailed Product Description

Product Name:	Plastic Pipe End Caps 3 Quarter Inch 26 Point 7 Millimeter For PE And PVC Tubes With Precision Casting And Sealing Performance	Standards:	ISO1167, ASTM D 1598/1599, Etc
Exterior Size(mm*mm):	φ62*60mm	Technology:	Precision Casting
Model:	3/4"	Color:	Bright Silver
Product Category:	End Closures For Plastic Pipe	O Ring:	Silicone Rubber
Highlight:	3/4 inch plastic pipe end caps , PE PVC tube end caps , precision casting pipe end caps

Plastic Pipe End Caps 3/4 inch (26.7mm) for PE and PVC Tubes

Product Overview

Precision Seal 3/4" (26.7mm) Plastic Pipe End Cap is designed for PE and PVC pipes, offering user-friendly operation and reliable sealing performance. The clamping diameter range for plastic pipes is 16-200mm, with custom specifications available upon request. The clamping component is constructed from 304# stainless steel for durability and corrosion resistance.

This product is specifically engineered for pipeline pressure and bursting tests, complying with authoritative standards including ASTM D2466, EN921, ISO1167, ASTM D 1598/1599, GB/T15560, and GB/T6111-2003.

Manufactured via precision casting, the end cap features an elegant appearance and integrated sealing and clamping processes that achieve a 100% success rate for one-time sealing.

Available Models

Imperial Inch Dimensions:

Full series available: 1/2", 3/4", 1", 1 1/2", 1 3/4", 2", 2 1/2", 2 3/4", 3", 4", 5", 6", 8", 10", 12", 14", 16", 20", 22", 24", 28"
Custom sizes available upon request

Metric Outer Diameter Specifications (Φ):

Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ75, Φ90, Φ110, Φ125, Φ140, Φ160, Φ200, Φ225, Φ250, Φ280, Φ315, Φ355, Φ400, Φ450, Φ500, Φ560, Φ630, Φ710, Φ800, Φ900, Φ1000, Φ1200, Φ1400, Φ1600

Technical Parameters

Model	3/4"
Max. Diameter (mm)	φ62
Height of one end (mm)	60
Weight of one end (KG)	0.6
O-ring size (mm)	φ24×3
Max. pressure (Mpa)	15
Nominal value (Mpa)	10

Compliance Standards

ASTM D1598-2004
ASTM D1599
ASTM D2466
GB/T6111-2018
GB/T15560-1995
GB/T18252-2008
GB/T18476-2001

Support and Services

Our professional technical support team provides comprehensive assistance for all inquiries and operational issues regarding installation and application. We offer detailed product specifications, troubleshooting solutions, and standardized operational guidance to ensure excellent performance and prolonged service life.

Additional value-added services include customized dimension processing, personalized marking, OEM production, and private label customization. We collaborate with clients to develop tailored solutions that meet specific application requirements.

Packaging and Shipping

Product Packaging: Supplied in sets of two units, packed in reinforced wooden cases. Each end cap is individually wrapped with protective material to prevent surface scratches and mechanical damage during transportation.

Shipping: Standard global logistics services with delivery cycles of 5-15 business days. Expedited shipping solutions available for urgent delivery requirements at additional cost.

Frequently Asked Questions

Q: What is the brand of this product?

A: This product is produced under the JINHAIHU brand.

Q: What is the formal model code?

A: The formal model code is designated as XGY.

Q: Does this product have quality certification?

A: Yes, this product is certified in compliance with the ISO9001 quality management system.

Q: What is the minimum order requirement?

A: The minimum order requirement is 1 set.

Q: What payment methods are supported?

A: We support T/T, L/C, Western Union, MoneyGram, D/P and D/A payment methods.
