Heavy Duty Plastic Pipe End Caps with A Type Structure Fixture Suitable for Hydrostatic Pressure and Bursting Tests
Product Overview

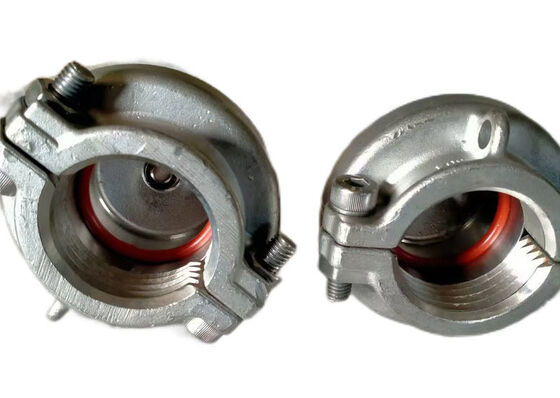

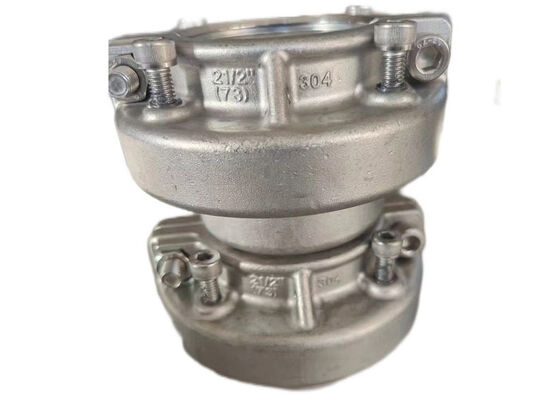

2.5-inch (73mm) High-Pressure Resistant Stainless Steel End Caps for PVC and PP Tubes are equipped with an A-Type Structure Fixture, which ensures maximum structural durability. These end caps are applicable for the internal static pressure test of pipes and pipe fittings, serving as a reliable and high-performance option for hydrostatic pressure and bursting test scenarios.
Available Specifications
Imperial (Inch) Sizes: 1/2", 3/4", 1", 1 1/2", 1 3/4", 2", 2 1/2", 2 3/4", 3", 4", 5", 6", 8", 10", 12", 14", 16", 20", 22", 24", 28", and other customized options.
Metric (Diameter) Sizes: Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ75, Φ90, Φ110, Φ125, Φ140, Φ160, Φ200, Φ225, Φ250, Φ280, Φ315, Φ355, Φ400, Φ450, Φ500, Φ560, Φ630, Φ710, Φ800, Φ900, Φ1000, Φ1200, Φ1400, Φ1600.
Technical Parameters
| Model |
2.5" |
| Max. Diameter (mm) |
φ130 |
| Height of one end (mm) |
80 |
| Weight of one end (KG) |
1.5 |
| O-ring size (mm) |
φ70*5.0 |
| Max. pressure (Mpa) |
10 |
| Nominal value (Mpa) |
8 |
Compliance Standards
ASTM D1598-2004, ASTMD1599, ASTM D 2466, GB/T6111-2018, GB/T15560-1995, GB/T18252-2008, GB/T18476-2001, etc.
Technical Support & Services
Our professional technical support team provides comprehensive assistance for installation and operation of our Plastic Pipe End Caps. We offer in-depth product specifications, troubleshooting guidance, and best practices to ensure optimal performance and extended service life.
Additional value-added services include customized sizing, personalized labeling, OEM manufacturing, and private branding services. We work closely with you to develop targeted solutions that meet your specific application requirements.
Packaging & Shipping
Packaging: Plastic Pipe End Caps are supplied in pairs (1 set = 2 pieces) and packed in heavy-duty wooden crates. Each end cap is individually wrapped with protective material to prevent damage during transit.
Shipping: Standard delivery lead time is 5-15 business days, varying by location. Expedited shipping solutions are available upon request for urgent needs, subject to additional charges.
Frequently Asked Questions
Q1: What brand is this Plastic Pipe End Cap product?
A1: This Plastic Pipe End Cap product is branded JINHAIHU.
Q2: What is the model designation of this Plastic Pipe End Cap?
A2: The model designation of this Plastic Pipe End Cap is XGY.
Q3: Does this Plastic Pipe End Cap hold any relevant certification?
A3: Yes, this Plastic Pipe End Cap is officially certified under the ISO9001 quality management system.
Q4: What is the minimum order quantity (MOQ) for this Plastic Pipe End Cap?
A4: The minimum order quantity for this Plastic Pipe End Cap is 1 set.
Q5: What payment terms are available for ordering this Plastic Pipe End Cap?
A5: Available payment terms include T/T, L/C, Western Union, MoneyGram, D/P, and D/A.
