High Durability Plastic Pipe End Caps for Pressure Testing PVC PP PPR PE ABS Pipes Offering Sealing and Convenient

High Durability Plastic Pipe End Caps for Pressure Testing PVC PP PPR PE ABS Pipes Offering Sealing and Convenient
High Durability Plastic Pipe End Caps for Pressure Testing PVC PP PPR PE ABS Pipes Offering Sealing and Convenient
video play

Large Image :  High Durability Plastic Pipe End Caps for Pressure Testing PVC PP PPR PE ABS Pipes Offering Sealing and Convenient

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: 4"
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 5~10 work days
Payment Terms: T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: High Durability Plastic Pipe End Caps For Pressure Testing PVC PP PPR PE ABS Pipes Offering Sealing And Convenient Standards: ISO1167, ASTM D 1598/1599, Etc
Exterior Size(mm*mm): φ170*80mm Technology: Precision Casting
Model: 4" Color: Bright Silver
Product Category: End Closures For Plastic Pipe Silicone Rubber O Ring: φ110*5.7mm
Highlight:

durable plastic pipe end caps

,

PVC pipe sealing caps

,

pressure testing pipe caps

High Durability Plastic Pipe End Caps for Pressure Testing PVC PP PPR PE ABS Pipes
Product Overview

These precision-cast end caps deliver exceptional quality and high-pressure resistance, making them essential for pressure testing of PVC, PP, PPR, PE, ABS, and other plastic pipes across construction and plumbing industries.

  • Precision casting technology ensures superior product quality
  • Excellent resistance to high pressure conditions
  • Simple installation and convenient operation
  • Enhances testing workflow efficiency
  • Reliable and durable sealing solution for PVC and PE pipes
Available Sizes
Imperial Sizes:
  • 1/2", 3/4", 1", 1 1/2", 1 3/4", 2", 2 1/2", 2 3/4", 3", 4", 5", 6", 8", 10", 12", 14", 16", 20", 22", 24", 28"
Metric Diameters:
  • Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ75, Φ90, Φ110, Φ125, Φ140, Φ160, Φ200, Φ225, Φ250, Φ280, Φ315, Φ355, Φ400, Φ450, Φ500, Φ560, Φ630, Φ710, Φ800, Φ900, Φ1000, Φ1200, Φ1400, Φ1600

Custom dimensions available upon request

Technical Parameters (Model: 4")
Parameter Value
Max. Outer Diameter (mm) φ170
Height of one end (mm) 80
Weight of one end (KG) 2.5
O-ring size (mm) φ110*5.7
Max. pressure (Mpa) 10
Nominal value (Mpa) 8
Standard Configuration
  • Bolts: 1 set
  • Vent valve: 1 piece
  • Connector: 1 piece
  • Seal rings: 1 set
Compliance Standards

ASTM D1598-2004, ASTMD1599, ASTM D 2466, GB/T6111-2018, GB/T15560-1995, GB/T18252-2008, GB/T18476-2001, and others.

Support and Services

Our technical support team provides comprehensive assistance for installation, operation, troubleshooting, and maintenance of our Plastic Pipe End Caps.

Additional value-added services include:

  • Customized dimension processing
  • Personalized marking
  • OEM production
  • Private brand labeling
Packing and Shipping

Supplied in sets of two pieces, packed in heavy-duty wooden crates with individual protection to prevent damage during transit.

Shipping Terms: Standard delivery within 5-15 working days. Expedited shipping available upon request with additional charges.

Frequently Asked Questions
Which brand does this product belong to?
This product is branded as JINHAIHU.
What is the model designation of this product?
The model designation of this product is XGY.
Does this product hold any certification?
Yes, this product is certified under the ISO9001 quality management system.
What is the minimum order quantity for this product?
The minimum order quantity for this product is 1 set.
What payment terms are available for this product?
Available payment terms include T/T, L/C, Western Union, MoneyGram, D/P and D/A.
Product Images

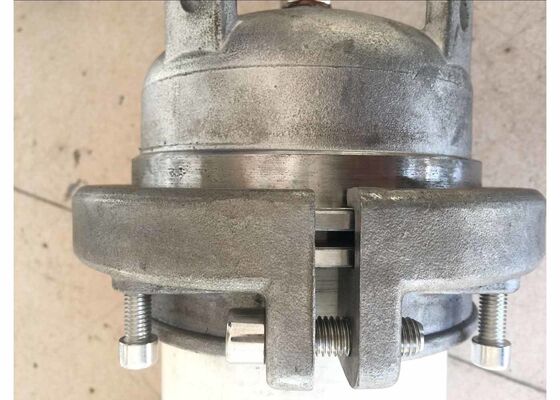

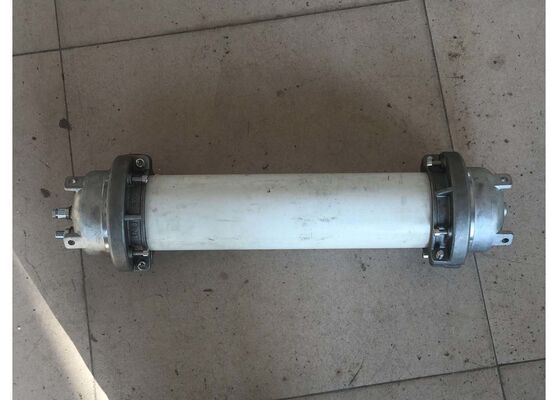

High Durability Plastic Pipe End Caps for Pressure Testing PVC PP PPR PE ABS Pipes Offering Sealing and Convenient 0 High Durability Plastic Pipe End Caps for Pressure Testing PVC PP PPR PE ABS Pipes Offering Sealing and Convenient 1 High Durability Plastic Pipe End Caps for Pressure Testing PVC PP PPR PE ABS Pipes Offering Sealing and Convenient 2 High Durability Plastic Pipe End Caps for Pressure Testing PVC PP PPR PE ABS Pipes Offering Sealing and Convenient 3
