Plastic Pipe End Caps 8 inch 219mm with Bolt O Ring and Vent Valve Providing Easy Operation and Sealing for Pipe Pressure Tests

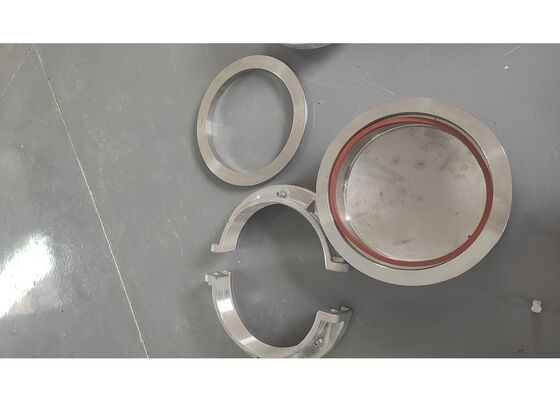

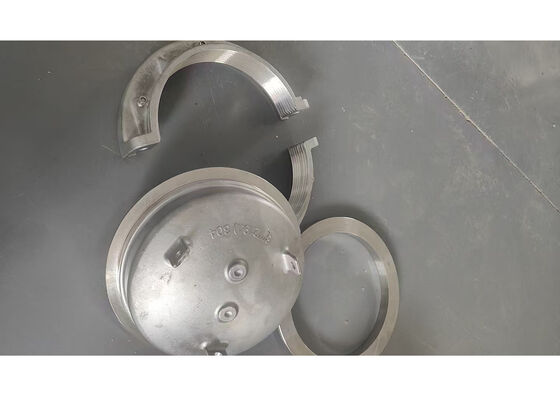

Large Image : Plastic Pipe End Caps 8 inch 219mm with Bolt O Ring and Vent Valve Providing Easy Operation and Sealing for Pipe Pressure Tests

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001
Model Number:	8"

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	5~10 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability:	200 sets per month

Contact Now

Detailed Product Description

Product Name:	Plastic Pipe End Caps 8 Inch 219mm With Bolt O Ring And Vent Valve Providing Easy Operation And Sealing For Pipe Pressure Tests	Standards:	ISO1167, ASTM D 1598/1599, Etc
Exterior Size(mm*mm):	φ320*120mm	Technology:	Precision Casting
Model:	8"	Color:	Bright Silver
Product Category:	End Closures For Plastic Pipe	Silicone Rubber O Ring:	φ 215*8mm
Highlight:	8 inch plastic pipe end caps , plastic pipe caps with vent valve , pipe pressure test end caps

Plastic Pipe End Caps 8 inch 219mm with Bolt O Ring and Vent Valve

These 8-inch (219mm) Plastic Pipe End Caps with bolted O-rings and vent valves are designed for user-friendly operation and effective sealing of plastic pipes including PVC, PE, PPR, ABS and other materials during pipe internal pressure tests and burst tests.

Product Compatibility

These end caps are fully compatible with our XGY series pipe hydrostatic testing machines and can also be matched with your existing testing equipment.

Manufacturing Capabilities

Our annual production capacity reaches tens of thousands of sets. The end caps are constructed from 45# carbon steel or 304# stainless steel. We also provide customized production for special end caps based on your specific testing requirements.

Available Sizes

Inch specifications:

1/2", 3/4", 1", 1 1/2", 1 3/4", 2", 2 1/2", 2 3/4", 3", 4", 5", 6", 8", 10", 12", 14", 16", 20", 22", 24", 28", and other customized sizes

Metric diameter specifications:

Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ75, Φ90, Φ110, Φ125, Φ140, Φ160, Φ200, Φ225, Φ250, Φ280, Φ315, Φ355, Φ400, Φ450, Φ500, Φ560, Φ630, Φ710, Φ800, Φ900, Φ1000, Φ1200, Φ1400, Φ1600

Technical Parameters

Parameter	Value
Model	8"
Max. Diameter (mm)	φ320
Height of one end (mm)	120
Weight of one end (KG)	10
O ring size (mm)	φ215*8
Max. pressure (Mpa)	8
Nominal value (Mpa)	6

Compliance Standards

ASTM D1598-2004, ASTMD1599, ASTM D 2466, GB/T6111-2018, GB/T15560-1995, GB/T18252-2008, GB/T18476-2001, etc.

Support and Services

Our professional technical support team provides comprehensive assistance for installation and operation, including detailed product specifications, troubleshooting guidance, and best operational practices to ensure optimal performance and extended service life.

We also offer value-added services including customized sizing and labeling solutions, OEM manufacturing, and private labeling services to fully align with your specific application requirements.

Packing and Shipping

Our Plastic Pipe End Caps are supplied in pairs (1 set = 2 pieces) and packed in robust wooden packaging to ensure safe delivery. Each end cap is individually packaged to prevent damage during transportation.

Standard shipping delivery lead time is 5-15 business days, varying by geographical location. Expedited shipping services are available for urgent needs, subject to additional fees.

Frequently Asked Questions

Q1: What is the brand of this product?

A1: The brand of this product is JINHAIHU.

Q2: What is the model designation of this product?

A2: The model designation of this product is XGY.

Q3: Is this product certified?

A3: Yes, this product holds ISO9001 quality management system certification.

Q4: What is the minimum order quantity (MOQ) for this product?

A4: The minimum order quantity for this product is 1 set.

Q5: What payment terms are available for this product?

A5: Available payment terms include T/T, L/C, Western Union, MoneyGram, D/P and D/A.
