Servo Hydraulic Testing Machine Featuring Four Column Host and Oil Cylinder Down Type for Enhanced Stability and Accuracy

Large Image : Servo Hydraulic Testing Machine Featuring Four Column Host and Oil Cylinder Down Type for Enhanced Stability and Accuracy

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001 , CE
Model Number:	WAW-300B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Servo Hydraulic Testing Machine Featuring Four Column Host And Oil Cylinder Down Type For Enhanced Stability And Accuracy	Model:	WAW-300B
Structure:	4 Columns	Control Way:	Manual And Electro-hydraulic Servo
Max.load:	300KN	Max. Tension Test Space:	750(can Customize)
Max.Compression Test Space:	650mm (can Customize)	Load Range:	0.5%-100%FS
Highlight:	Servo Hydraulic Testing Machine with four column , Servo Hydraulic Testing Machine oil cylinder down , Servo Hydraulic Testing Machine enhanced stability

Servo Hydraulic Testing Machine Featuring Four Column Host and Oil Cylinder Down Type for Enhanced Stability and Accuracy

Product Overview

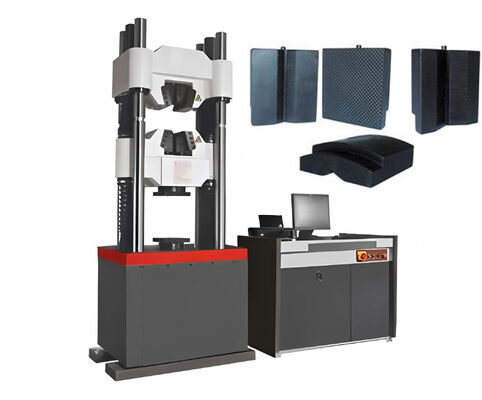

The WAW Series Microcomputer-Controlled Electro-Hydraulic Servo Universal Testing Machine is constructed with a down-mounted cylinder and a four-column mainframe structure. It is mainly applied to conduct tensile, compression, bending and shear tests for metallic and non-metallic materials.

This testing machine is widely applicable to multiple sectors including metallurgy, construction, light industry, aviation, aerospace, material science, higher education institutions and scientific research institutes. The test operation and data processing fully conform to the specifications specified in GB228-2010.

Key Characteristics

Dual-column and dual-screw structure
Main unit adopts a lower cylinder design with tensile test space arranged at the upper part and compression/bending test space located between the lower crosshead and worktable
Test rate control mode: automatic control
Hydraulic wedge-type clamping system
Test results can be saved automatically, with test reports containing data and curves generated and printed automatically

Price Advantage

We continuously optimize our independent R&D investment, have established an exclusive processing center, and independently manufacture all core components. This enables us to cut intermediate costs while maintaining consistent product quality. Our superior-quality equipment delivers far greater long-term value compared to low-cost but inferior-quality alternatives.

We focus on minimizing the equipment failure rate, which not only reduces maintenance expenses but also enhances operational efficiency. Such cost-effectiveness, combining reasonable pricing with high quality, brings tangible benefits to customers and ensures long-term operational value for testing work.

Compliance Standards

ISO 6892, ISO 6934, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.

Safety Protection

Overload protection will be activated and the unit will stop operating once the test force exceeds 2%-5% of the maximum test force in each measuring range.

Stroke protection will be enabled and the pump motor will shut down automatically when the piston rises to its upper limit position.

Technical Parameters

Parameter	Specification
Model	WAW-300B
Max. test force	300KN
Structure	Two columns two ball screws, oil cylinder down-setting type
Load range	1%-100%
Middle Beam elevating speed	200 mm/min
Max. Tensile space	750mm
Max. Compression space	650mm
Piston stroke	250mm
Round sample grip diameter range	Φ4-30mm
Plat sample grip thickness range	0-15mm
Power total	3.2KW
Compression plate size	Φ160mm
Bending support roller distance	350mm

Product Images

Packing and Shipping

All machines are packed in standard export wooden cases for reliable protection. We have delivered many testing machines worldwide by sea or air without any damage.

Frequently Asked Questions

Q1. Are you a trading company or a manufacturer?

A: We are an integrated manufacturer and trader, with 18 years of focus in the testing instrument industry and 14 years of professional export experience.

Q2. How to choose the most suitable products?

A: Our professional technical team will provide you with the most appropriate recommendations as long as you inform us of your required test items and performance specifications.

Q3. What are your delivery terms?

A: Most products are available in factory stock. If out of stock, the normal lead time is 15-20 working days after receiving the deposit. We can arrange priority production for urgent needs.

Q4. Do you provide customization services?

A: Yes, we can supply not only standard testing machines but also customized equipment according to your specific requirements. Please let us know your demands.

Q5. Can we visit your factory before placing an order?

A: Yes, you and your team are sincerely welcome to visit our factory. We can assist with hotel arrangements and provide airport pickup service.

Q6. How about your warranty policy?

A: Generally, we provide a one-year warranty. During the warranty period, we offer free technical support and spare parts replacement. If necessary, our engineers can be dispatched to your site for on-site service.

Q7. How about the machine packaging, and is it well protected during transportation?

A: All machines are packed in standard export wooden cases for reliable protection. We have delivered many testing machines worldwide by sea or air without any damage.
