Drop Hammer Test Equipment offering consistent and repeatable impact testing results for metals polymers and composites

Large Image : Drop Hammer Test Equipment offering consistent and repeatable impact testing results for metals polymers and composites

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Offering Consistent And Repeatable Impact Testing Results For Metals Polymers And Composites	Hammer Diameter:	D25mm,D90mm
Test Range:	0-300J	Drop Hammer Quality:	0.5, 0.8, 1.0, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12.5kg
V-type Supporting:	120°	Max. Height:	2000mm
Min. Height:	10mm	Diameter Of The Sample:	Φ10mm-Φ450mm
Highlight:	drop hammer test equipment for metals , repeatable impact testing equipment , drop hammer tester for composites

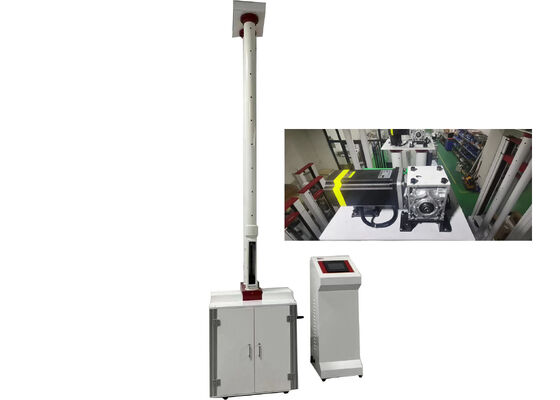

Drop Hammer Test Equipment

Offering consistent and repeatable impact testing results for metals, polymers and composites.

Applications

The Jinhaihu XJL-300A drop hammer impact tester is a high-performance testing device dedicated to impact resistance evaluation, developed strictly in accordance with ISO3127 and other equivalent standard test methods.

This instrument is widely employed in the research, quality inspection and impact performance testing of plastic pipes for manufacturing enterprises, representing an ideal testing solution for the building materials industry and scientific research institutions.

The tester is equipped with interchangeable hammers with a mass range of 0.5kg-16kg, which can automatically calculate and display the impact height in real time. It is also integrated with an anti-secondary impact protection function.

Suitable for both the trough method and gradient method, this drop hammer impact tester delivers convenient operation, high safety and stable reliability.

With a test energy range of 0-300J, the equipment covers a wide application scope.

This product has obtained the ISO9001 quality management system certification and is manufactured in Beijing, China.

Conform with Standards

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.

Technical Parameters

Model	XJL-300C
Ambient temperature	10℃-35℃
Drop hammer quality	0.5, 0.8, 1.0, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12.5kg (can customized)
Hammer diameter	D25mm, D90mm
Height of the fall	10mm-2000mm, error≤±2mm
Diameter of the sample	Φ16mm-Φ450mm
Deviation of impact center from fixture center	≤2mm
V-type supporting	120°
Source	220VAC±10%
Outline dimension	720mm×710mm×3950mm
Net weight	385kg

Support and Services

We provide full-range technical support and after-sales service for our drop hammer test equipment. Our professional engineering and technical team delivers professional guidance covering on-site installation, routine maintenance, fault troubleshooting, instrument calibration and other related support. We can also develop tailored customized solutions to satisfy your specific testing demands.

We are dedicated to offering premium customer service and technical assistance. Our service team provides round-the-clock support for all your inquiries and issues.

For further details about our products and services, please feel free to contact us at any time.

Packing and Shipping

The Drop Hammer Test Equipment shall be securely packed in a standard export wooden crate for transportation. The complete package includes the main testing unit, operation instruction manual, and all corresponding spare parts and accessories. In addition, the outer package will be clearly marked with the equipment name, model designation and serial number.

The entire delivery procedure will be accompanied by all necessary official documents, including commercial invoice, packing list and other paperwork required for international shipment. The freight cost will be calculated based on the delivery destination and selected mode of transportation.

Frequently Asked Questions

Q: What is Drop Hammer Test Equipment?

A: Drop Hammer Test Equipment is a professional testing instrument manufactured by JHH in Beijing, China, which is specially used to determine the impact resistance of test samples.

Q: What is the application purpose of Drop Hammer Test Equipment?

A: The Drop Hammer Test Equipment is used to test the impact resistance of products, so as to effectively control and guarantee product quality.

Q: What products can be tested with Drop Hammer Test Equipment?

A: Drop Hammer Test Equipment is suitable for various pipes including PVC-U, PVC-O, PVC-C water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foam pipes, double-wall corrugated pipes and PE water supply pipes, and it is also applicable to rigid plastic plates.

Q: What is the test accuracy of Drop Hammer Test Equipment?

A: The test accuracy of the Drop Hammer Test Equipment can reach as high as 0.5%.

Q: What is the maximum test energy of Drop Hammer Test Equipment?

A: The maximum test energy of the Drop Hammer Test Equipment is 300J.
