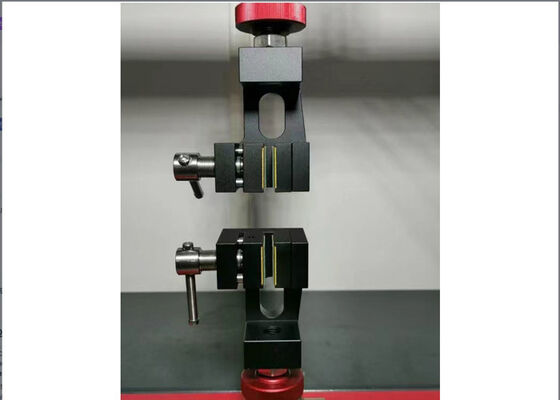

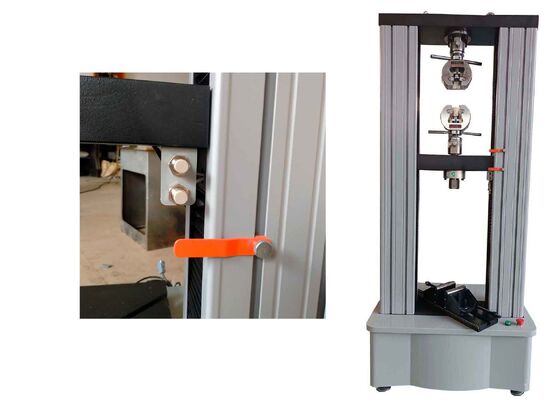

Electronic Universal Testing Machine Featuring Closed Loop Control and AC Servo Motor Power for Accurate Material Testing and Analysis

Large Image : Electronic Universal Testing Machine Featuring Closed Loop Control and AC Servo Motor Power for Accurate Material Testing and Analysis

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001 , CE
Model Number:	XWW-20KN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Electronic Universal Testing Machine Featuring Closed Loop Control And AC Servo Motor Power For Accurate Material Testing And Analysis	Place Of Origin:	Beijing, China
Capacity:	20KN	Model:	XWW-20KN
Precision Grade:	1 Or 0.5	Force Resolution:	1/300,000
Accuracy Range:	±0.5%	Compression Space:	900mm(can Customize)
Speed Range:	0.05-500 Mm/min	The Displacement Resolution:	0.001mm
Control Mode:	Computer	Certificate:	ISO, CE
Highlight:	Electronic Universal Testing Machine with AC Servo Motor , Closed Loop Control Testing Machine , Material Testing Machine for Accurate Analysis

Electronic Universal Testing Machine

This advanced testing machine features closed-loop control and AC servo motor power for precise material testing and analysis. It integrates state-of-the-art chip integration technology with a professionally developed data acquisition, amplification, and control system.

The system implements full digital calibration for control and indication during test force detection, deformation amplification, and A/D conversion stages, ensuring exceptional accuracy and reliability.

Testing Capabilities

This universal testing machine performs ring stiffness testing for plastic pipes and conducts comprehensive tests including tension, peeling, heat seal strength, tearing, and flexure on both metallic and non-metallic materials.

Core parameters such as maximum test force, ring stiffness, ring flexibility, flattening test index, tensile strength, various elongation values, and compressive strength are automatically calculated in compliance with GB, JIS, ASTM, DIN, ISO, and other international standards.

Performance Characteristics

Force Capacity Options: 20kN
Force Resolution: 1/300,000
Displacement Resolution: 0.005mm
Power Unit: AC closed-loop servo motor for stable power output and precise control
Testing Modes: Tension, compression, bending, peeling, cutting, and other mechanical property tests
Control Modes: Constant speed operation, constant force retention, positioning displacement retention, constant stress retention, constant strain retention, and various shutdown triggers

Technical Specifications

Force capacity selection	20kN
Force measurement accuracy	1% (or 0.5%)
Displacement resolution	0.005mm
Control mode	Closed-loop
Force resolution	1/300,000
Test speed	0.005~500mm/min (customizable)
Compression test travel	900mm (customizable)
External dimensions	660×400×2000mm
Instrument weight	Approximately 250kg

Frequently Asked Questions

What type of encoder does the electronic universal testing machine use to ensure displacement measurement accuracy?

The machine is fitted with a 4-frequency encoder, which enhances displacement measurement accuracy by 4 times and ensures reliable displacement data during testing.

What is the specific force resolution index of the 20kN electronic universal testing machine?

For the 20kN model, the force resolution reaches 1/300,000, accurately capturing tiny changes in test force to meet high-precision testing requirements.

What kind of power unit does the electronic universal testing machine adopt to realize stable control?

This testing machine utilizes an AC closed-loop servo motor as its power unit, enabling stable power output and precise control throughout the testing process.

What fixed elongation strength indicators can the electronic universal testing machine automatically test?

The machine automatically tests fixed elongation strength at multiple indicators: 100%, 200%, 300%, 500%, and 700%, complying with relevant testing standards.
