Drop Hammer Test Equipment featuring user friendly interface and safety features for and secure impact testing operations

Large Image : Drop Hammer Test Equipment featuring user friendly interface and safety features for and secure impact testing operations

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Featuring User Friendly Interface And Safety Features For And Secure Impact Testing Operations	Hammer Diameter:	D25mm,D90mm, Etc
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-12.5kg
V-type Supporting:	120°	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	Drop hammer test equipment with safety features , User friendly drop hammer test equipment , Secure impact testing drop hammer equipment

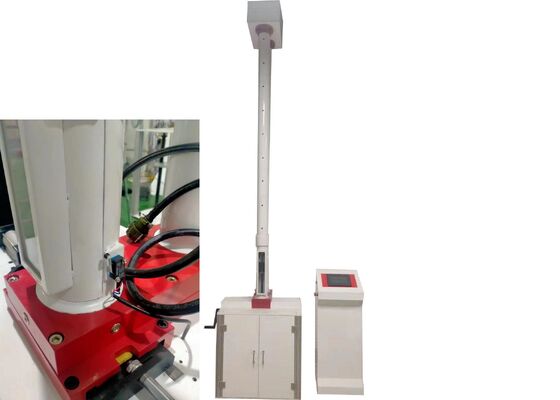

Drop Hammer Test Equipment

Product Overview

Our Drop Hammer Test Equipment features a user-friendly interface and comprehensive safety features for secure impact testing operations. This professional testing instrument is designed for evaluating material impact resistance with precision and reliability.

Operating Principle

The equipment operates on a simple yet highly effective principle: test specimens are impacted by a falling striker with specified mass and profile, dropped from a fixed height to strike designated positions. Test intensity can be flexibly adjusted by modifying the striker mass and/or drop height.

Applications & Standards

Widely utilized by scientific research institutions, testing centers, and manufacturing enterprises in the plastic pipe industry to determine material impact resistance. Also optimal for the building materials industry and scientific research organizations.

Conforms with standards: ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and more.

Technical Specifications

Parameter	Specification
Model	XJL-300D
Ambient temperature	10℃-35℃
Drop hammer quality	0.5, 0.8, 1.0, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12.5kg
Hammer diameter	D25mm, D90mm
Height of the fall	10mm-2000mm, error≤±2mm
Diameter of the sample	Φ16mm-Φ630mm
Deviation of impact center	≤2mm
V-type supporting	120°
Power source	220VAC±10%
Outline dimension	720mm×710mm×3950mm
Net weight	385kg

Key Features

Anti-secondary impact function

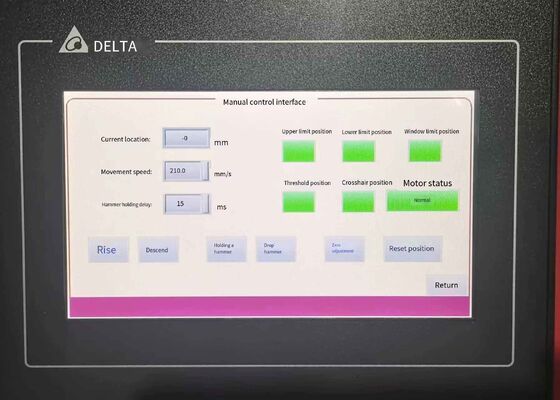

Automatic real-time impact height measurement and display
Supports both passage method and gradient method
Easy-to-operate, safe and reliable design
Maximum testing energy: 300J
Testing accuracy: up to 0.5%

Support and Services

We provide comprehensive technical support and dedicated after-sales service, including installation, routine maintenance, troubleshooting, calibration, and customized solutions. Our professional engineering team is available 24/7 to address all your technical questions and concerns.

Packing and Shipping

Equipment is robustly packed in export-grade wooden crates for safe delivery. Each package includes the main testing machine, operation manual, and all matching components. Complete shipping documentation provided for international transportation and customs clearance.

Frequently Asked Questions

What is Drop Hammer Test Equipment?

Professional testing instrument manufactured by JHH, located in Beijing, China, used to test the impact resistance of various specimens.

What is the purpose of Drop Hammer Test Equipment?

To test product impact resistance, verifying and ensuring product qualification and stable quality.

What products can Drop Hammer Test Equipment be used for?

Suitable for various pipes including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, transmission pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic plates.

What is the accuracy of Drop Hammer Test Equipment?

Achieves high testing accuracy of up to 0.5%.

What is the maximum testing energy of Drop Hammer Test Equipment?

Maximum testing energy is 300J.

Product Images
