Servo Hydraulic Testing Machine providing automatic data storage and testing curve generation for metal mechanical property tests

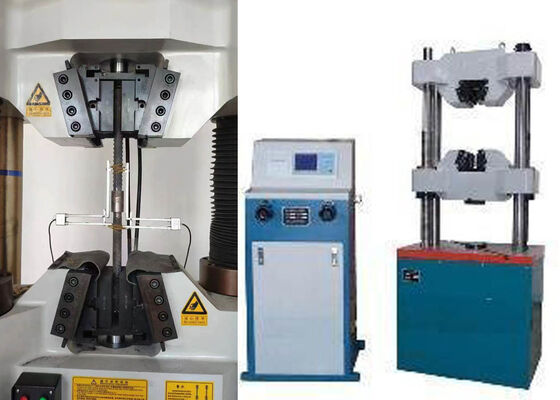

Large Image : Servo Hydraulic Testing Machine providing automatic data storage and testing curve generation for metal mechanical property tests

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001 , CE
Model Number:	WAW-600D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Servo Hydraulic Testing Machine Providing Automatic Data Storage And Testing Curve Generation For Metal Mechanical Property Tests	Model:	WAW-600D
Structure:	6 Columns	Control Way:	Manual & Automatic
Max.load:	600KN	Max. Tension Test Space:	700(can Customize)
Max.Compression Test Space:	600mm (can Customize)	Load Range:	±1%-100%FS
Electronic Extension Meter:	10/50	Clamping Method:	Hydraulic Clamping
Highlight:	Servo Hydraulic Testing Machine with data storage , Servo Hydraulic metal mechanical property tester , automatic testing curve generation machine

Servo Hydraulic Testing Machine

Product Overview

As a factory-direct supply product under material physical property testing laboratory equipment, the Hydraulic Universal Testing Machine is primarily engineered for conducting tensile tests on metal materials and their components. It is capable of determining a full range of key mechanical performance indicators, including:

Tensile strength
Yield strength
Specified plastic extension strength
Elastic modulus
Percentage elongation after fracture

This testing machine features a hydraulic wedge-type clamping mechanism, ensuring stable and reliable clamping during testing. Test results are automatically archived in the equipment system, and standardized testing reports—incorporating complete test data and real-time test curves—are automatically generated and printed without manual intervention, significantly improving testing efficiency and data accuracy.

Price Advantage

We have strengthened our independent R&D capabilities, constructed a professional processing center, and independently produced core components. This integrated R&D and production model allows us to reduce intermediate link costs while maintaining consistent high quality. Our high-quality equipment provides long-term savings compared to low-cost, poor-quality alternatives by lowering machine failure rates, reducing maintenance expenditure, and enhancing operational efficiency.

Compliance Standards

ISO 6892, ISO 6934 BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.

Technical Specifications

Parameter	Specification
Model	WAW-600D
Structure	6 Column (Four Columns Two Ball Screws)
Control Way	Constant Stress, Constant Deformation, Constant Displacement Three Closed Loop Control and Program Control
Max. Load	600 KN (60 TONS)
Load Accuracy	≤±1% (Optional: ≤± 0.5%)
Load Range	2%~100%FS (12KN~600KN) (Optional: 0.4%-100%FS (2.4KN~600KN))
Load Resolution	1/500000
Deformation Measurement Range	2%~100%FS
Deformation Accuracy	≤±1% (Optional: ≤± 0.5%)
Displacement Resolution	0.01mm
Displacement Error	≤±0.5%
Max. Piston Stroke	200mm
Max. Piston Moving Speed	0-50mm/min Stepless Speed Adjusting
Crossbeams Lifting Speed	250mm/min
Max. Tension Test Space	800mm (Can Be Customized)
Max. Compression Test Space	650mm (Can Be Customized)
Center Spacing Between Columns	590mm
Column Effective Spacing	520mm
Clamping Method	Hydraulic Automatic Clamp
Round Specimen Clamping Range	Φ6-Φ13mm, 13-Φ26mm, Φ26-Φ40mm
Flat Specimen Clamping Range	0-15mm (Optional: 15-30mm)
Flat Specimen Clamping Width	80mm
Flat Specimen Clamping Length	100mm
Compression Plate Size	Φ160mm
Bending Roller Distance	450mm
Width Of Bending Rollers	110mm

Packing and Shipping

Frequently Asked Questions

Q1: Is your company a trading firm or a manufacturing factory?

A: We operate as a factory-integrated trading enterprise, with 18 years of dedicated focus on the testing instruments industry and 14 years of rich export expertise in global markets.

Q2: How can I select the most appropriate product for my needs?

A: Our professional technical team will provide you with optimal product recommendations once you inform us of your specific testing requirements and required technical specifications.

Q3: What are your delivery terms?

A: In most cases, we maintain in-stock inventory in our factory. If the required model is out of stock, the standard delivery lead time is 15-20 business days after we receive your deposit. For urgent orders, we can arrange priority production to meet your demand.

Q4: Do you provide customized solutions?

A: Absolutely. We offer not only standard testing machine models but also customized equipment tailored to your unique requirements. Please feel free to inform us of your specific needs, and we will do our utmost to fulfill them.

Q5: Can we conduct a factory inspection before placing an order?

A: Yes, we cordially welcome and sincerely invite you or your team to visit our factory. We will assist in arranging accommodation and provide airport pickup service for your convenience.

Q6: What is your product warranty policy?

A: Generally, we provide a 12-month warranty period. Within the warranty period, we offer free technical support and replacement of wearing parts. If necessary, our professional engineers can provide on-site technical service at your location.

Q7: How is the equipment packaged, and is it securely protected during transportation?

A: All our testing machines are packaged in export-standard wooden crates, which effectively prevent damage during transit. We have shipped numerous testing machines overseas via sea or air freight, with no damage incidents reported to date.
