Drop Hammer Test Equipment Offering Comprehensive Impact Testing Solutions for Material Research and Control Applications

Large Image : Drop Hammer Test Equipment Offering Comprehensive Impact Testing Solutions for Material Research and Control Applications

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Offering Comprehensive Impact Testing Solutions For Material Research And Control Applications	Hammer Diameter:	D25mm,D90mm Can Customized
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
V-type Supporting:	120°	Max. Height:	2000mm
Min. Height:	10mm	Diameter Of The Sample:	Φ16mm-Φ630mm
Highlight:	drop hammer test equipment for material research , impact testing solutions for material control , drop hammer test equipment with warranty

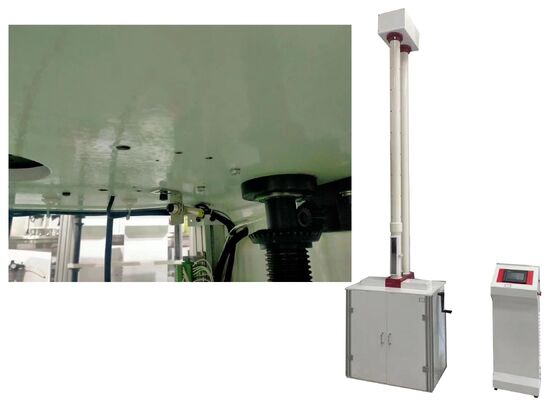

Drop Hammer Test Equipment

This apparatus serves as a professional testing solution dedicated to the construction material sector and scientific research institutions. It is extensively employed by plastic pipe manufacturers, testing laboratories and R&D facilities for the evaluation of impact resistance and toughness performance.

Applications

The Drop Hammer Impact Testing Machine fully complies with the specifications defined in ISO3127 and other equivalent standardized test methods. Featuring user-friendly operation, high operational safety and stable reliability, the machine integrates an anti-secondary impact protection mechanism, supports automatic calculation and real-time display of impact height, and is compatible with both pass-fail method and gradient test protocol.

Conform with Standards

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422
ASTM D2444, ASTM D3763, ASTM D7136
EN 744, EN 1411, etc.

Technical Parameters

Model	XJL-300D
Ambient temperature	10℃-35℃
Drop hammer quality	0.5, 0.8, 1.0, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12.5kg (can customized)
Hammer diameter	D25mm, D90mm
Height of the fall	10mm-2000mm, error≤±2mm
Diameter of the sample	Φ16mm-Φ630mm
Deviation of impact center from fixture center	≤2mm
V-type supporting	120°
Source	220VAC±10%
Outline dimension	720mm×710mm×3950mm
Net weight	385kg

Support and Services

We provide full-spectrum technical support and dedicated after-sales service for our Drop Hammer Test Equipment. Our professional engineering and technical team delivers specialized assistance covering equipment installation, routine upkeep, fault resolution, metrological verification, and other related technical services. We also develop tailored testing configurations to satisfy your unique application and testing demands.

Packing and Shipping

The Drop Hammer Test Equipment is rigorously packed in an export-standard wooden crate to ensure safe delivery. The complete package incorporates the main testing unit, official operation manuals, as well as all supplementary parts and standard accessories. Each shipping crate is clearly marked with the equipment name, model designation and unique serial number for clear identification.

Frequently Asked Questions

Q: What is Drop Hammer Test Equipment?

A: Drop Hammer Test Equipment is a specialized testing apparatus developed and produced by JHH in Beijing, China, which is utilized to quantify the impact resistance performance of various test specimens.

Q: What is the core function of Drop Hammer Test Equipment?

A: The core function of this equipment is to assess the impact resistance of tested products, so as to guarantee and stabilize the overall quality of industrial products.

Q: What types of products can be tested by Drop Hammer Test Equipment?

A: This equipment is applicable to a full range of piping products, including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foam pipes, double-wall corrugated pipes and PE water supply pipes; it is also suitable for the impact testing of rigid plastic plates.

Q: What measurement accuracy does Drop Hammer Test Equipment feature?

A: This testing equipment features a high measurement accuracy of up to 0.5%, ensuring the reliability and authenticity of test data.

Q: What is the maximum test energy of Drop Hammer Test Equipment?

A: The maximum impact test energy supported by the Drop Hammer Test Equipment is 300J, which meets the impact testing requirements of most plastic pipes and profiles.
